Quick Installation Guide
00825-0100-4075, Rev DA
July 2011
Smart Wireless THUM Adapter
9

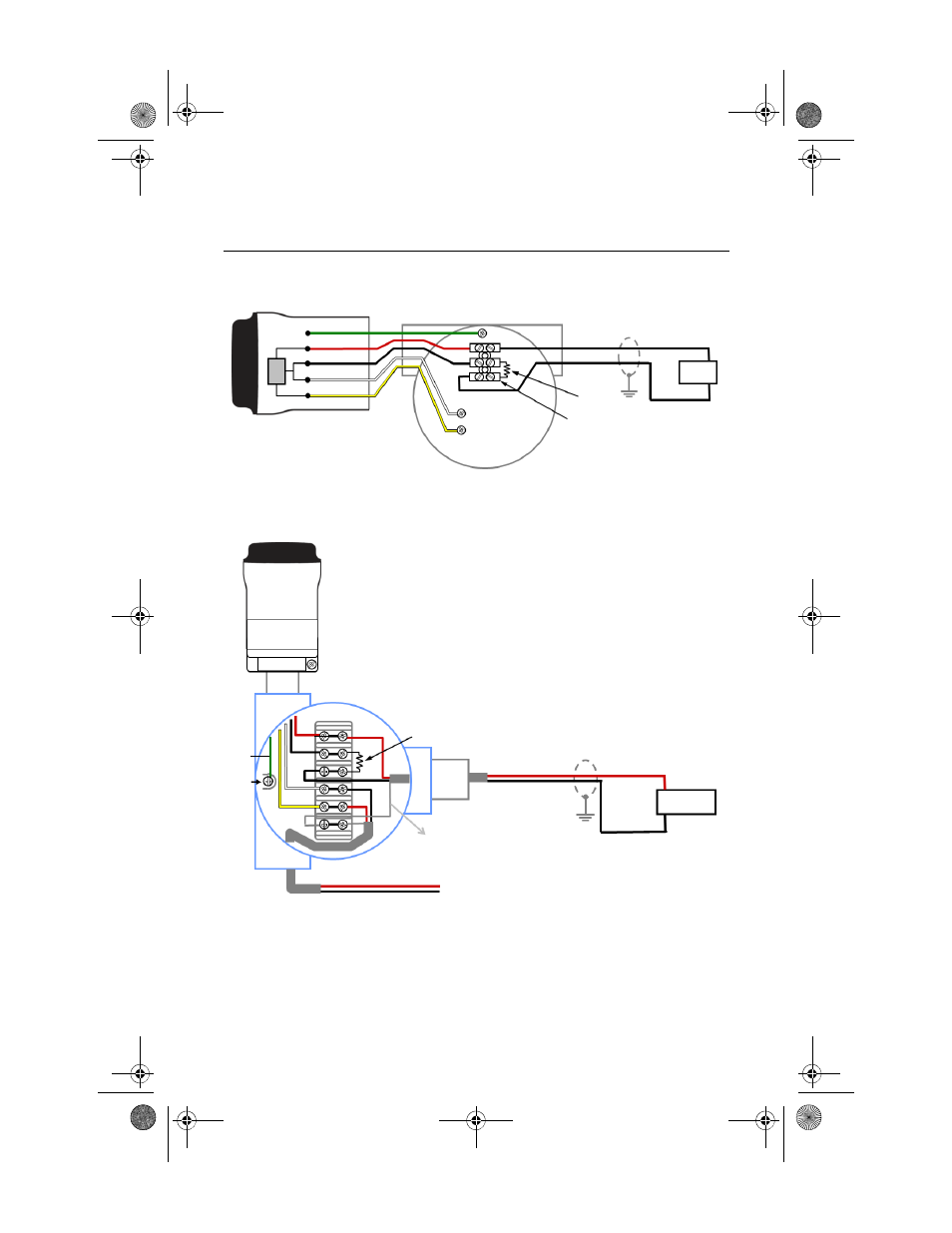

Figure 8. Direct Mount Wiring Diagram for 2-Wire Device with Resistor
Figure 9. Remote Mount Wiring Diagram for 2-Wire Device with Resistor
Splice Connector
Wired Device
4-20 mA Loop -
4-20 mA Loop +
Ground
- PWR / COMM
+ PWR / COMM
THUM Adapter
Green
Red
Black
White
Yellow
Power +
Supply -
Load Resistor 250 
Remote Mount Housing
4-20 mA Loop -
4-20 mA Loop +
Ground
+ COMM
- COMM
THUM Adapter
Green
Red
Black
White
Yellow
To Wired Device
Shield Wire
Load Resistor 250 
+ Power
- Supply
