Quick Installation Guide
00825-0100-4075, Rev DA
July 2011
Smart Wireless THUM Adapter
14

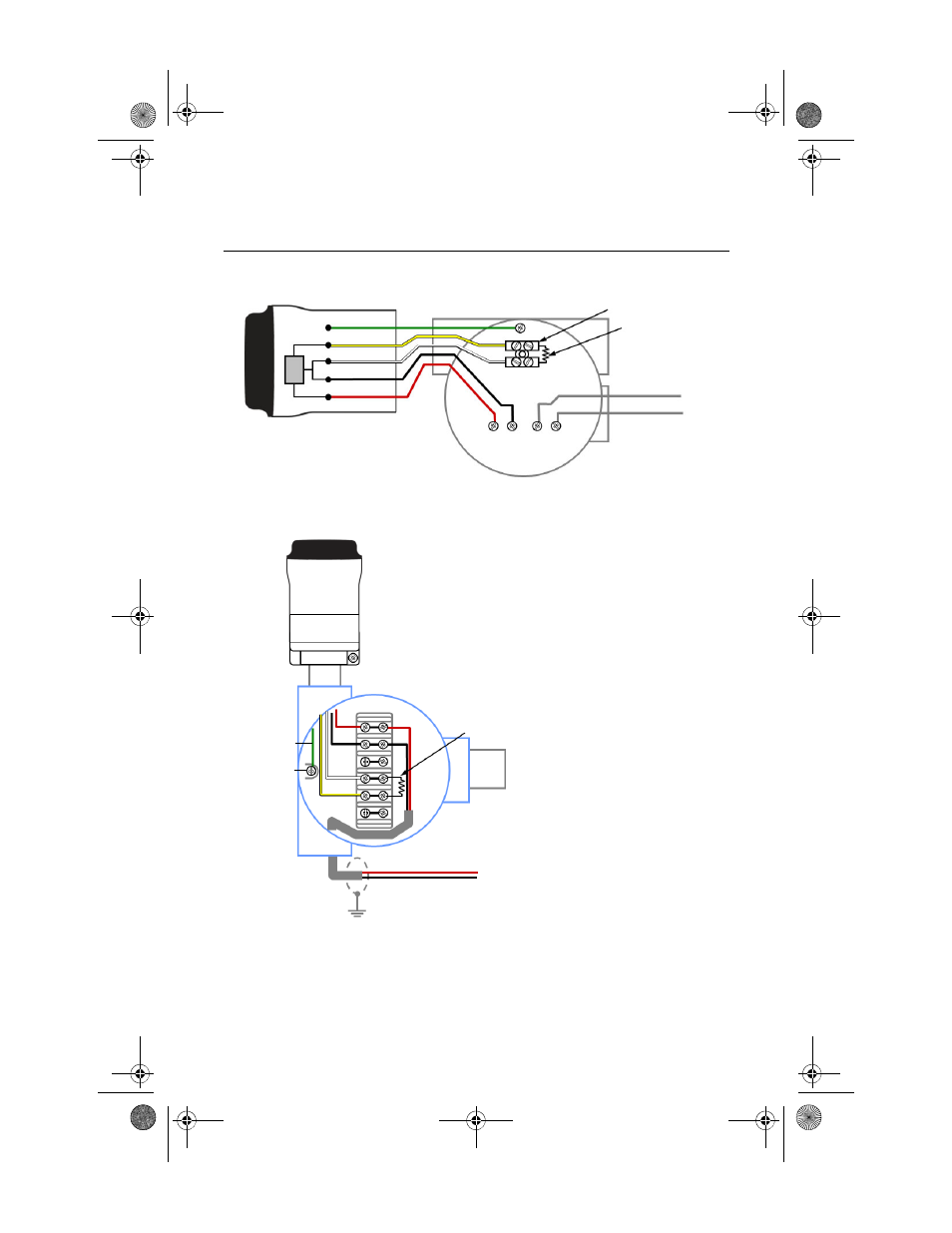

Figure 18. Direct Mount Wiring Diagram for 4-Wire Active Device with No 4-20 mA Loop
Figure 19. Remote Mount Wiring Diagram for 4-Wire Active Device with No 4-20 mA Loop
Splice Connector Wired Device
Ground
THUM Adapter
Green
Yellow
White
Black
Red
Load Resistor 250 
Powe
r+
Powe
r-
CO
MM+
CO
MM-
Remote Mount Housing
Ground
+ COMM
- COMM
THUM Adapter
Green
White
Black
Red
To Wired Device
Yellow
Load Resistor 250 
