Front panel controls

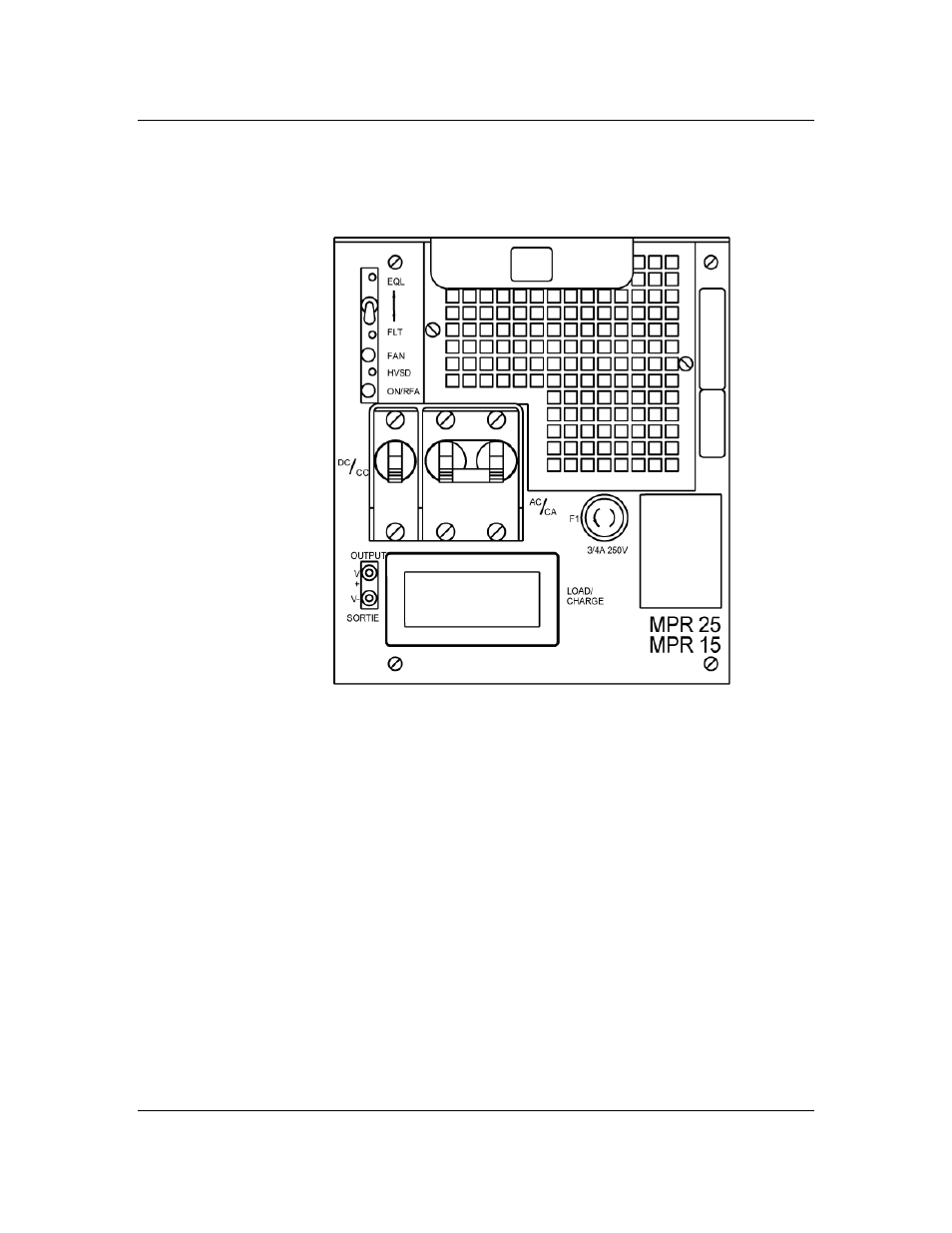

Figure 9 - NT5C06D - front view
Features
In addition to the features and performance characteristics described earlier,
the rectifier provides the following features.
Local float / equalize control
The rectifier is equipped with a float / equalize switch. The rectifier normally
delivers a float voltage set by the FLT potentiometer. When the switch is
placed in the EQL position, the rectifier changes to equalize mode and
boosts the output voltage to the value set by the EQL potentiometer.
High voltage shutdown (HVSD) - local
This potentiometer sets the internal threshold level for the local high voltage
shutdown monitor circuit.
High voltage shutdown - remote
The rectifier can be shut down by an external (remote) HVSD signal from
the controller only if it is delivering more than 3 A +/- 0.75 A.
