Installation and Operation, cont’d
DVS 304 • Installation and Operation 2-24
IR 902 Infrared Remote Control
The IR 902, shown at right, replicates most of the front panel controls except the
Menu and Next buttons. See chapter 3, “Serial Communication”, for details.
The topmost part of the IR 902 features memory preset buttons, input switching,
picture-in-picture (PIP), volume, and four input selection buttons (1, 2, 3, 4).
The middle portion of the IR 902 features muting, freeze control, auto imaging, the
on-screen display (OSD) on/off button, and basic navigation.
The bottom portion contains the adjustment controls for size, position, brightness,
contrast, zoom, pan, color, tint, detail, phase adjustment and aspect ratio.
The approximate range for the IR 902 is 30 feet.
DVS 304 REMOTE
MEMORY PRESETS
PIP
ON/OFF
AUDIO
MUTE
VIDEO
MUTE
A/V
MUTE FREEZE
AUTO IMAGE
OSD ON/OFF
SIZE POSITION
INPUT SELECTION
BRIGHT CONT
ZOOM PAN COLOR TINT
DETAIL PHASE ASPECT RATIO INFO
SWAP
VOLUME
IR 902

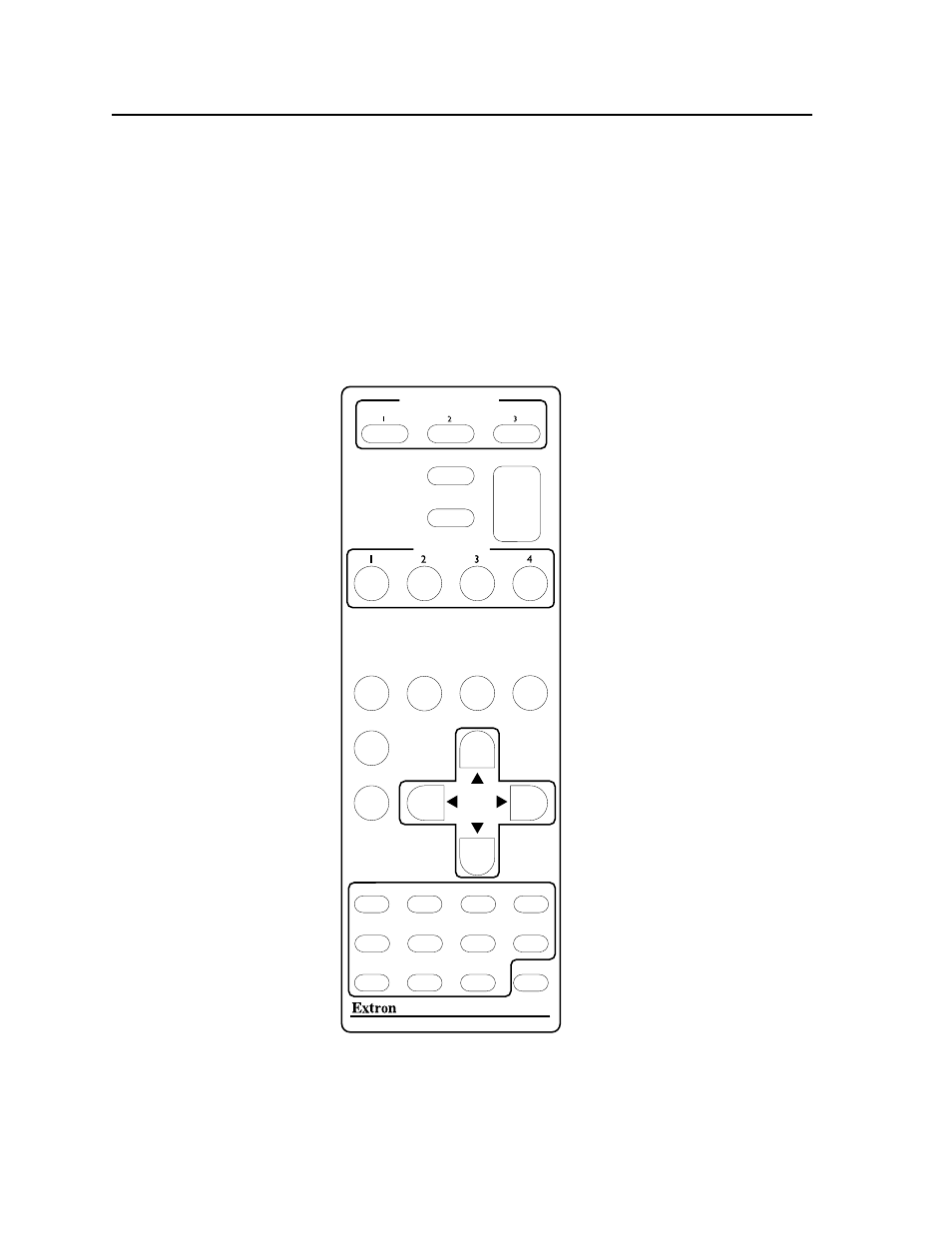

Figure 2-22 — The IR 902 remote control
