Setting-up the projector – Eiki LC-X2U User Manual
Page 7
• This projector is basically designed to project on a flat projection
surface.
• This projector can be focused from 4.9’ (1.5 m) ~ 80.7’ (24.6 m).

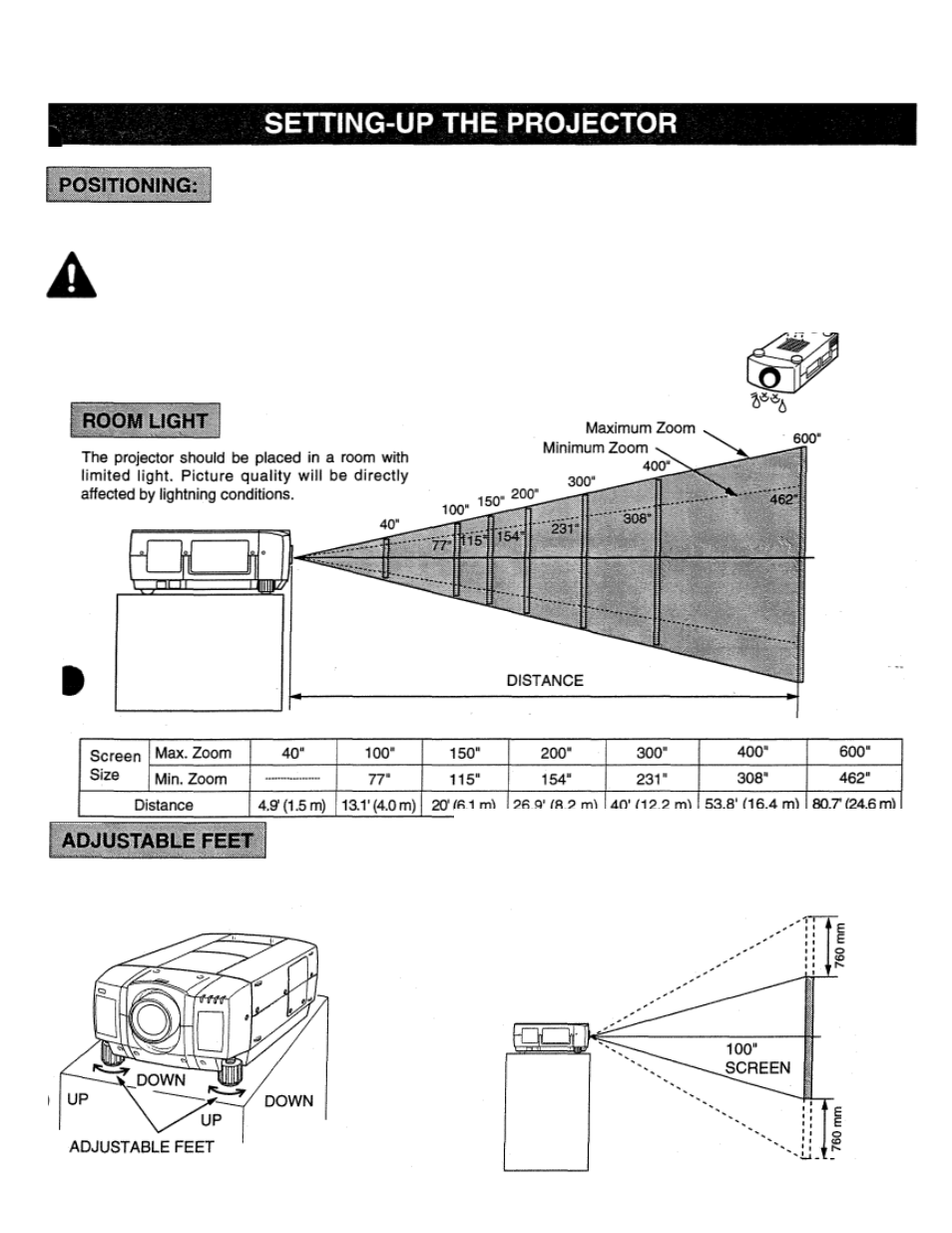

• Refer to the figure below as an example when positioning the projector
to the screen.
Picture tilt and projection angle can be adjusted
by twisting ADJUSTABLE FEET. Projection
angle can be adjusted up to 4 degrees by
rotating Adjustable Feet.
THIS PROJECTOR SHOULD BE SET IN THE WAY INDICATED. NEVER HANG
THE PROJECTOR, OR FALL DOWN ON ITS SIDE. IT MAY RESULT IN FIRE
HAZARD.
MOVE THE PROJECTED IMAGE POSITION
Adjust the projected image (maximum 760 mm downward
or upward on the 100” screen) by using lens shift function.
(see page 33.)
