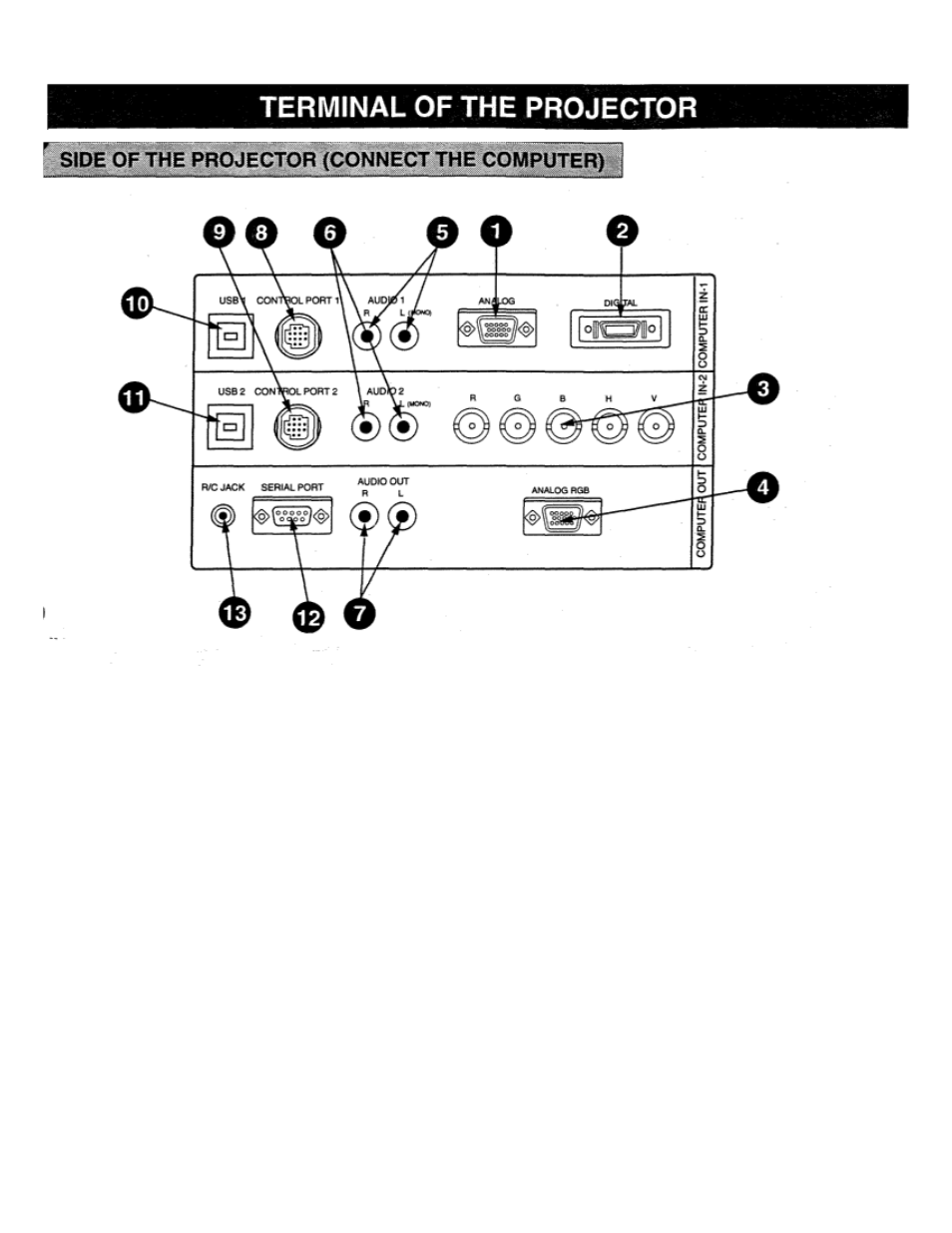

1 COMPUTER INPUT-1 TERMINAL (ANALOG HDB
15-PIN)
Used to connect a computer to the projector.
8 CONTROL PORT-1 CONNECTOR
Used to connect a mouse cable to the
projector.
2 COMPUTER INPUT-1 RMINAL (DIGITAL MDR 20-
PIN)
Used to connect a computer to the projector.
9 CONTROL PORT-2 CONNECTOR
Used to connect a mouse cable to the
projector.
3 COMPUTER INPUT-2 JACKS (BNC TYPE x 5)
Used to connect a computer to the projector.
10 USB PORT-1 CONNECTOR
Used to connect a computer to the projector.
4 MONITOR OUTPUT TERMINAL (ANALOG HDB
15-PIN)
Used to connect a monitor to the projector.
11 USB PORT-2 CONNECTOR
Used to connect a computer to the projector.
5 COMPUTER AUDIO INPUT-i JACKS (R and L)
Used to connect an audio output from the computer to
the
projector.
12 SERIAL PORT TERMINAL (DB9)
Used to connect a computer to the projector.
6 COMPUTER AUDIO INPUT-2 JACKS (R and L)
Used to connect an audio output from the
computer to the projector.
13 WIRED REMOTE JACK
When using the wired remote control, connect
the remote cable to this jack.
7 AUDIO MONITOR OUTPUT JACKS (R and L)
Used to connect an audio input from audio
equipment to the Projector.
