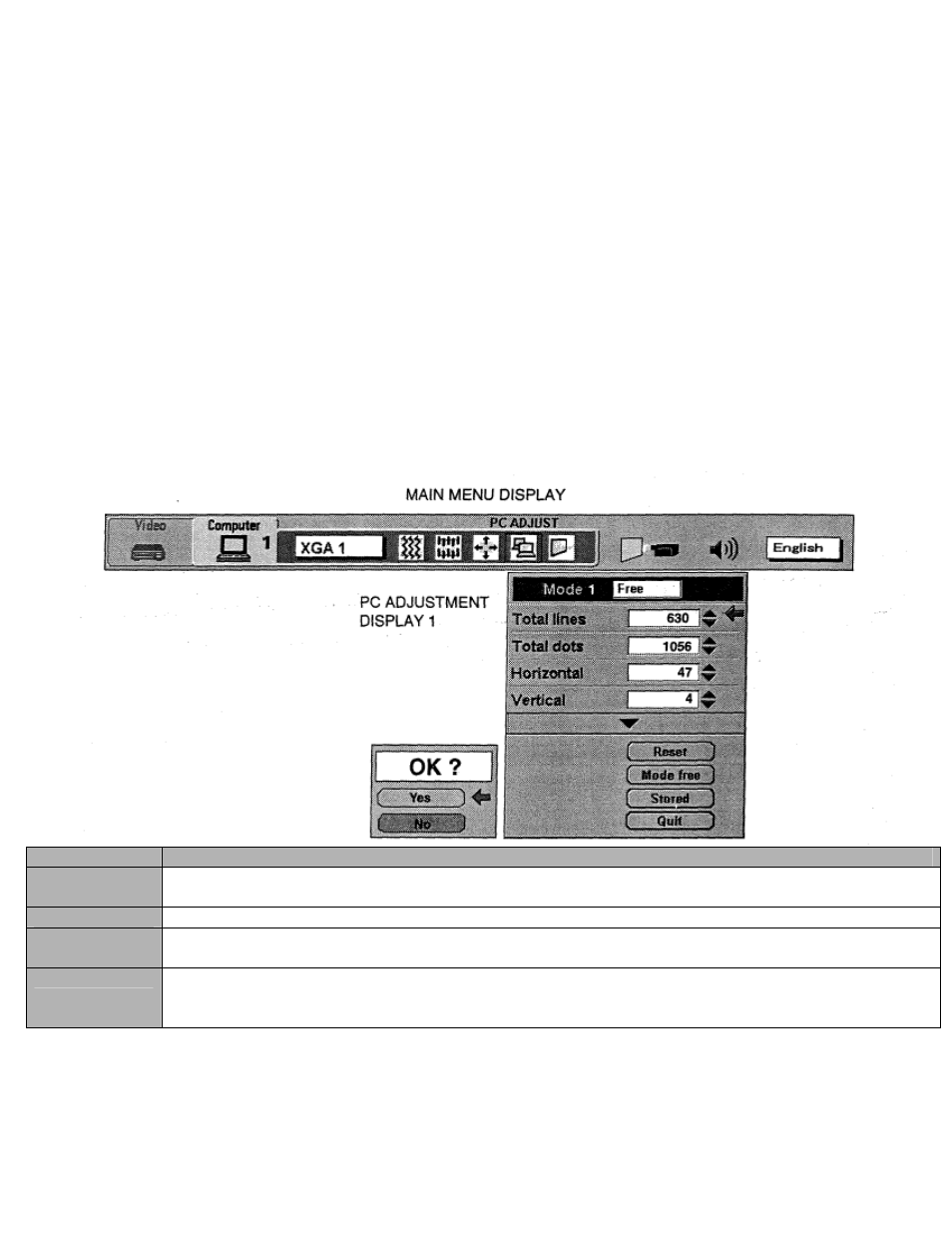

6. Another dialog box “PC ADJUSTMENT DISPLAY 1” will appear and the parameter data for the Mode you
have selected is shown in this dialog box.
7. The parameters will be filled with the data determined by the projector according to the present signal input.
8. The function of the parameters and their values are summarized in the table as below.
9. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).
10.To increase the level, point the arrow to S and then press the SELECT (REAR CLICK) BUTTON. To decrease
the level, point the arrow to T and then press the SELECT (REAR CLICK) BUTTON.
11.If you want to store the settings in the memory, move the arrow to Stored and press the SELECT (REAR CLICK)
BUTTON. When you have stored the settings, “OK
?“
-is displayed for confirmation. Move the arrow to Yes and
then press the SELECT (REAR CLICK) BUTTON.
12.To recall the parameter data before setting, move the arrow to Reset and then press the SELECT (REAR CLICK)
BUTTON. When you have reset the settings, “OK
?“
is displayed for confirmation. Move the arrow to Yes and
then press the SELECT (REAR CLICK) BUTTON. You can adjust the settings again if needed.
13.To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.
14.If you quit the MENU without storing the settings in the memory, the parameter data you changed will not be kept.
15.The stored settings are memorized even if the MAIN ON/OFF is switched oft.
-
16.Adjust the data such as a “Clamp”, “Fine sync”, “Display area”, “Horiz. scale” and “Vert. scale” if needed, move
the arrow by pressing the POINT UP/DOWN BUTTON(s) to select (T). Press the SELECT (REAR CLICK)
BUTTON.
ITEM FUNCTION
TOTAL LINES The number of the total vertical lines. Adjust the number to match your PC image.
TOTAL DOTS The number of the total dots in one horizontal period. Adjust the number to match your PC image.
HORIZONTAL Adjustment of the horizontal picture position. When the image is not centered on the screen, adjust
this.
VERTICAL Adjustment of the vertical picture position. When the image is not centered on the screen, adjust
this.
