AC CustomPak
In addition to our pre-engineered AC RapidPak solutions,
we offer the AC CustomPak solution, when the stand
alone module or packaged drives can’t answer the
need. Available with the full range of Emerson / Control
Techniques products, this engineered product can
be customized to meet a wide variety of power and
control configurations. With power ranges up to 2000
hp and voltages ranging from 208V to 575V. We can
deliver a comprehensive and cost–effective design that
meets the needs of the most exotic packaged drive
configuration. It features Non-Regenerative AC drives,
fieldbus communication & coprocessor accessories for
the demanding applications. This package solution has
several optional features including; AC line contactor, AC
line fusing, Input and Output reactors, 12, 18 or 24 pulse
operation for harmonic reduction.
Standard Features
• Input Voltage 208-460-575 VAC, 50/60 HZ
• Standard Enclosure, NEMA-12 (PPBF), Fully Gasketed,
(PPBF) Positive Pressure Blown and Filtered.
• CT Soft Windows™ based Programming Tool
Enclosure Design
• NEMA 3R, Enclosure, Fully Gasketed, (PPBF) Positive
Pressure Blown and Filtered
• N4, N4X or N12, (TENV) Enclosure, with or without
Air Conditioner Depending on Size of the Drive.
• 14 Gauge Steel
Options
• Normal Duty Rating (110% for 1 minute)
• Heavy Duty Rating (150% for 1 minute)
• 3%, AC Line Reactors
• 3%, AC Output Reactor
• Auto or Manual 3-Contactor Bypass
• Blower Motor Starter with Adjustable Overload
• Door Mounted Operator Devices.
• Circuit Breaker or Non-fused Disconnect Switch
• Input Main Lugs with Input Fusing
• Door Mounted LCD (SM – Keypad Plus) with Three
Lines of Text.
• SM-Modules
• Air Conditioner
• Space Heater
• 18 Pulse Operation
575
0
Voltage
Horsepower
3-2000 HP
460
230
1-2000 HP
1-1000 HP

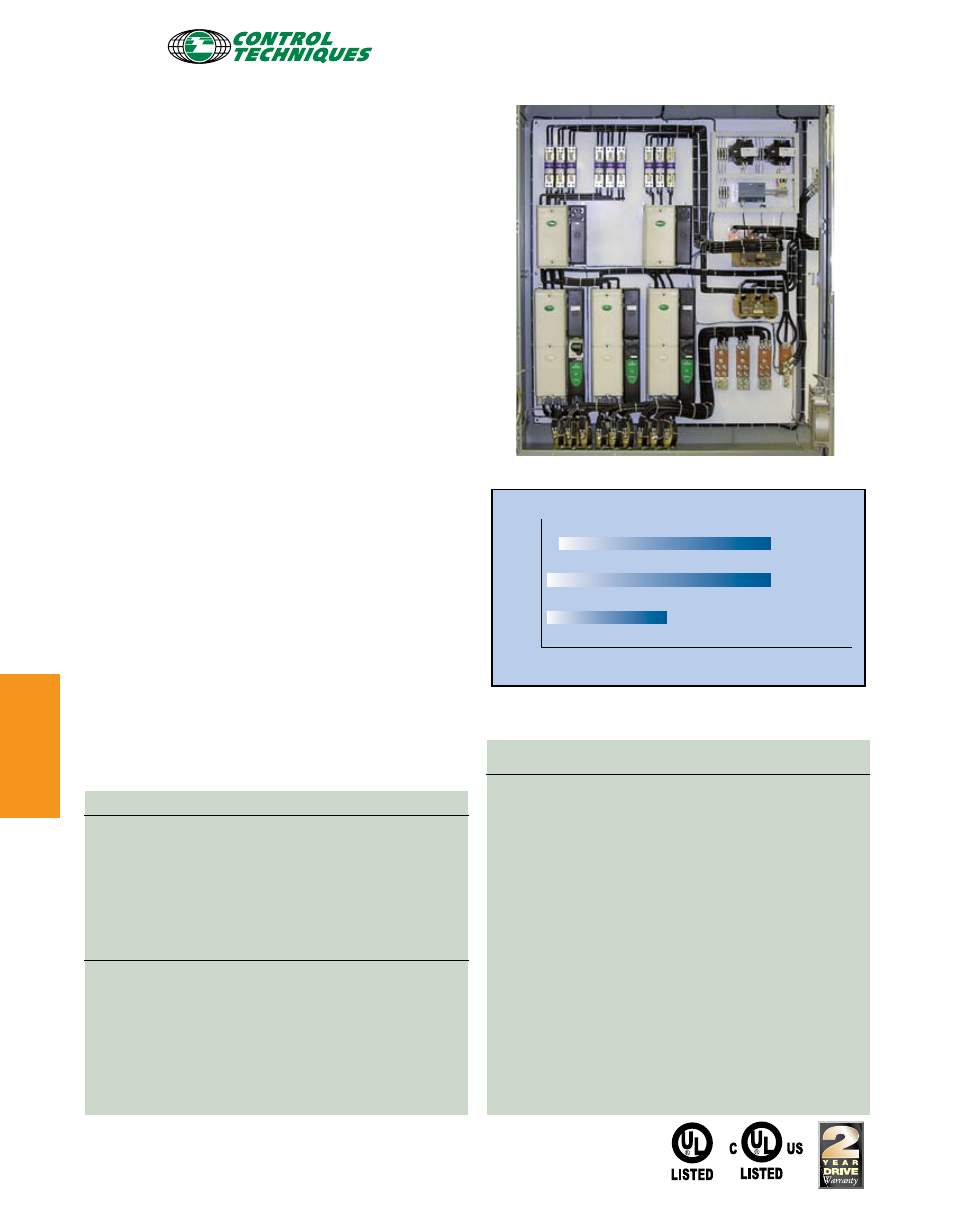

UL1, Ventilated Encl., SPM, 600 hp, 460VAC
