DC CustomPak
In addition to our pre-engineered DC StanardPak
solutions, we offer a DC CustomPak solution. Featuring
the Mentor II or the Quantum III DC drive, this engineered
product can be customized to meet a wide variety of
power and control configurations. With power ranges
up to 1500 hp and voltages ranging from 240V to
660V, our custom engineered DC packaged solution
can meet the needs of the most demanding packaged
drive configuration. It features non-regenerative or
regenerative operation, high speed fusing, field power
supply regulated and unregulated, DC or AC contactor
and control power. It also offers optional fieldbus
communications & coprocessor accessories for
demanding applications.
This packaged solution has several optional features
including; a circuit breaker, AC line contactor, DC/DB
contactor, fused blower motor starter, door mounted
devices, line reactors, 12 pulse operation for harmonic
reduction, and higher horsepower range.
Standard Features
• Input Voltage 208-240-380-480-575-660 VAC
• Enclosure or Panel
• 120 VAC control logic
• AC Line semiconductor fuse
• DC output fuse for regenerative drives
• AC, DC, DB contactor
• 2, 8 amp field regulator
• 10, 20A field supply
• DC, AC Tach or Encoder feedback
• Standard field voltage - 240 VAC = 150 VDC
480 VAC = 300 VDC
• CT Soft Windows™ based programming tool
Approvals
• UL508A up to 150 hp @ 240 VAC,
500 hp @ 480 VAC, 40˚ C
Options
• Door mounted operator devices and meters
• Circuit Breaker or Non-fused disconnect
• Fused blower motor starter
• Non-Standard field volts
• 20, 50, 90 Amp field regulator
• Line Reactor
• DC Choke
• 12 Pulse
• Dynamic braking resistor
• Air conditioner
• Door mounted keypad
Enclosure Design
• Standard Enclosure is (Nema 12 –PPBF) positive
pressure blower and filter
• ANSI-61 grey paint
• 14 gauge steel
• Nema 3R, fully gasketed, (PPBF), Positive Pressure
Blown and Filtered

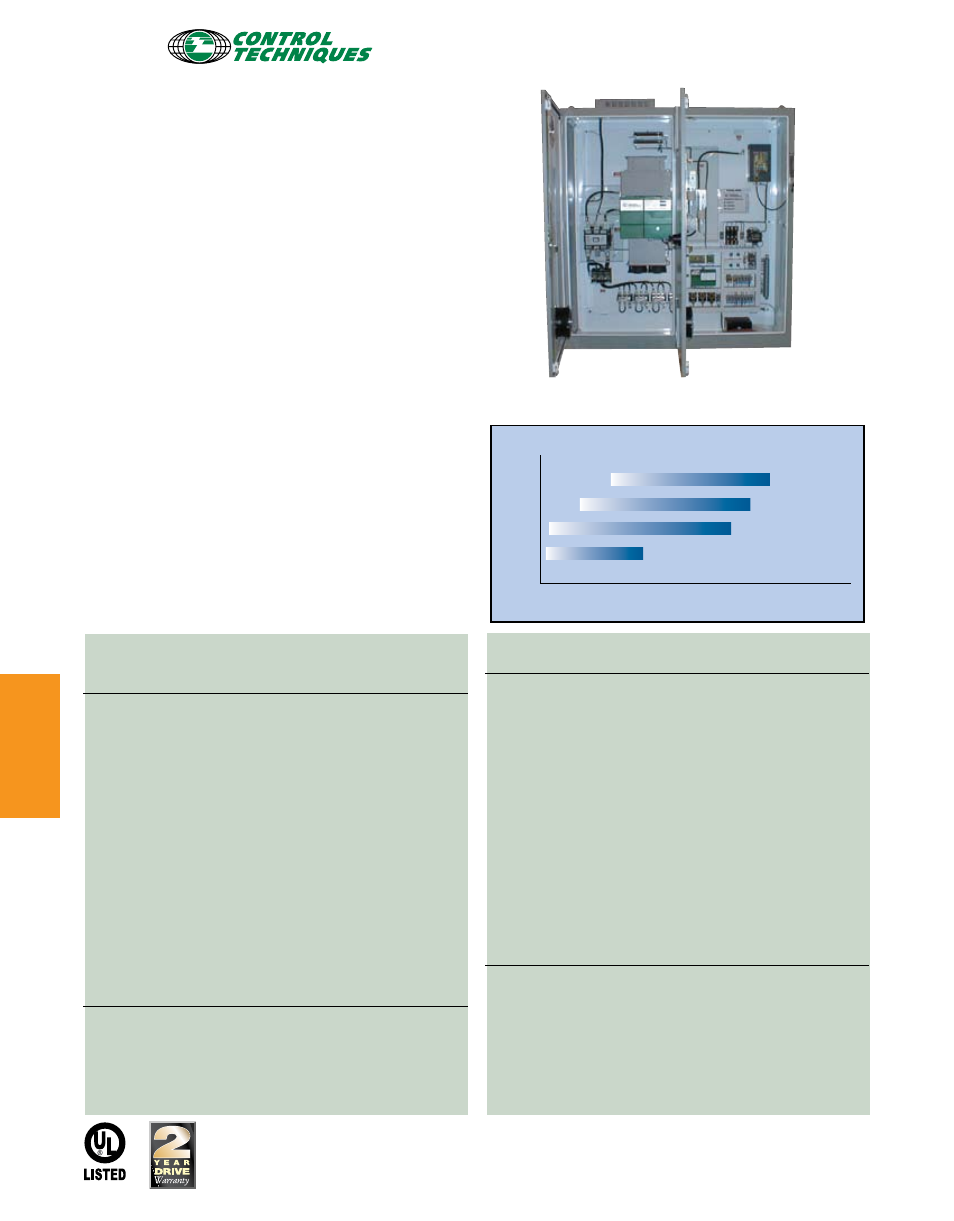

Nema -12 (PPBF), Ventilated Encl., 500 hp, 460 VAC,
Non-Regen, Circuit Breaker, DC Contactor, Field Regulator
