Dimensions
Cabinet Dimensions (inches)
460V
Horsepower
Duty Height Width Depth
100–125 hp Normal
78.75 23.6 23.6
100–125 hp Heavy
150–250 hp Normal
78.75 31.5 27.5
150–250 hp Heavy
300–500 hp Normal
78.75 55.1 27.5
300–450 hp Heavy
500 hp Heavy 78.75 63 27.5
Note: Depth dimensions for the cabinets in the table
include through-panel heatsinks and blowers on the
back of the cabinet.
Features
• All the state-of-the-art integration features of
the Unidrive SP
• A cost competitive, pre-engineered
“AC In – AC Out” solution
• A perfect match for both high-performance,
and standard drive applications, such as fans,
pumps and conveyors
• Industry standard NEMA 12 filtered
and ventilated enclosures
• Simplicity in ordering, installing and configuring
• An extensive array of options, including...
- Circuit Breaker Disconnect
- Line / Load Reactors
- Door Mounted Operator Controls
- Door Mounted Keypad

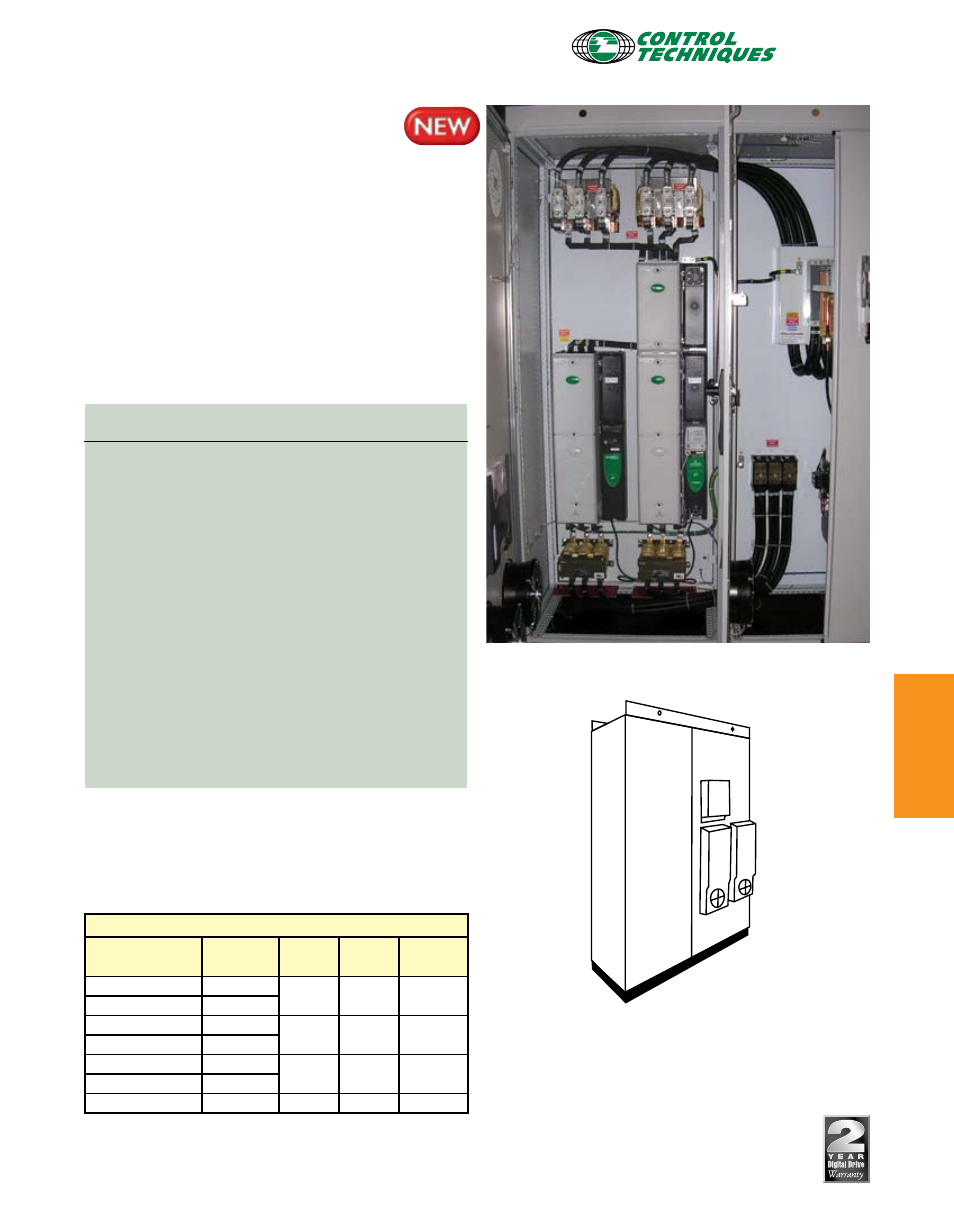

Large Enclosed
AC Drives
Users requiring quick delivery of a high-horsepower
NEMA 12 Positive Pressure Blown and Filtered AC drive
system, now have an Emerson Solution.
Robust Unidrive SPM technology from Control
Techniques gives users the power, performance, and
the ultimate in flexibility for all AC applications from
100 hp to 500 hp. For custom built higher horsepower
configurations please consult your sales representative.
