Excalibur ® P95-3 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION
Fireplace
Stand
No hearth is
required when
the unit is raised
3" (76mm) off of
the floor surface
Flooring

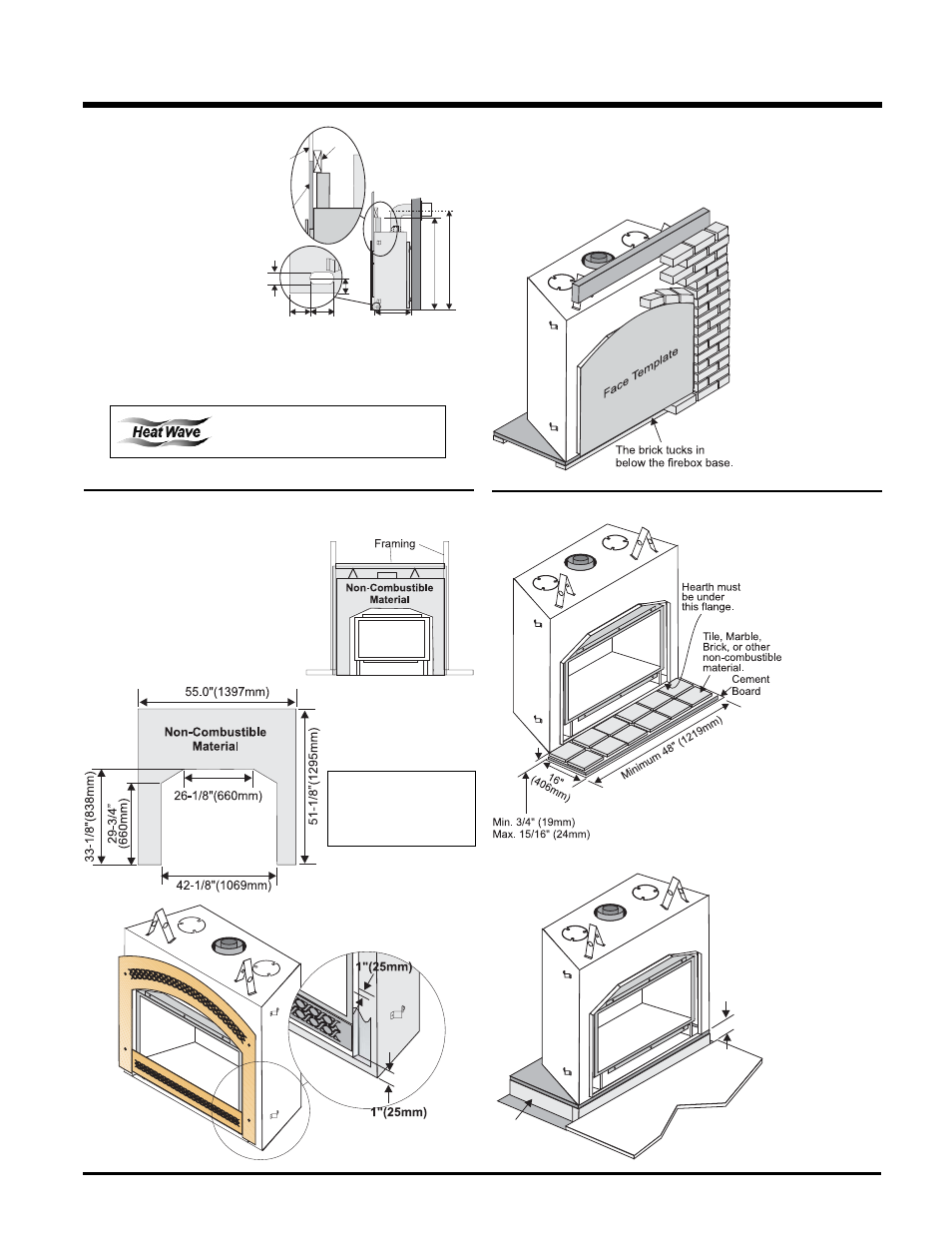

HEARTH REQUIREMENTS
Floor Mounted Fireplaces
FACING REQUIREMENT
Facing Over 1" (25mm) Thick
If the facing material is over 1" (25mm) thick (example: brick or river
rock), install the facing around the perimeter of the face. You may wish
to make a face template as shown on the diagram.
F P I o ff e r s a c o v e r
plate template. See the
"Optional Cover Plate
Template" section.
NOTE: If using a brick
hearth, the fi replace will
need to be raised to
accommodate the brick
thickness. Example: If the
brick is 2" thick, the unit
must be raised 1".
53-3/4”
48-3/4”
Header
CL
21-1/8” (533mm) 2-1/4” 4"
2"
Gas connection
on this side
Non-combus
tible
Material
Combustible
Material
11” dia. hole
through wall
for Flex
or for DuraVent
4"
2-7/8”
Note: 53-3/4" is the minimum height for both fl ex termination or
Simpson Dura-Vent venting.
4) Note: The unit does not
have to be completely
enclosed in a chase. The
clearance on top of the
unit is 0" to the standoffs
so combustible building
materials can be laid
directly on top of the
standoffs. You must
maintain clearance from
the vent to combustible
m a t e r i a l s f o r b o t h
rigid and fl ex, see the
"Clearances" section.
Yo u m u s t t a k e
into account the
depth of the fl oor
covering (carpet,
tile, linoleum, etc.)
when determining
the height of the
fi replace stand.
Raised Fireplaces
Please note that all vertical
measurements are taken
from the base of the unit
excluding risers or bottom
stand-offs.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
This fi replace requires a non-combustible
material extending from the framing
header and sides.
The fl anges on the front face of the
fi replace are for a facing thickness of 1"
(25mm).
