Excalibur ® P95-3 Zero Clearance Direct Vent Gas Fireplace 27
4) Place Log 312 on the front right side of the
burner, fi tting the log on the 2 pins.

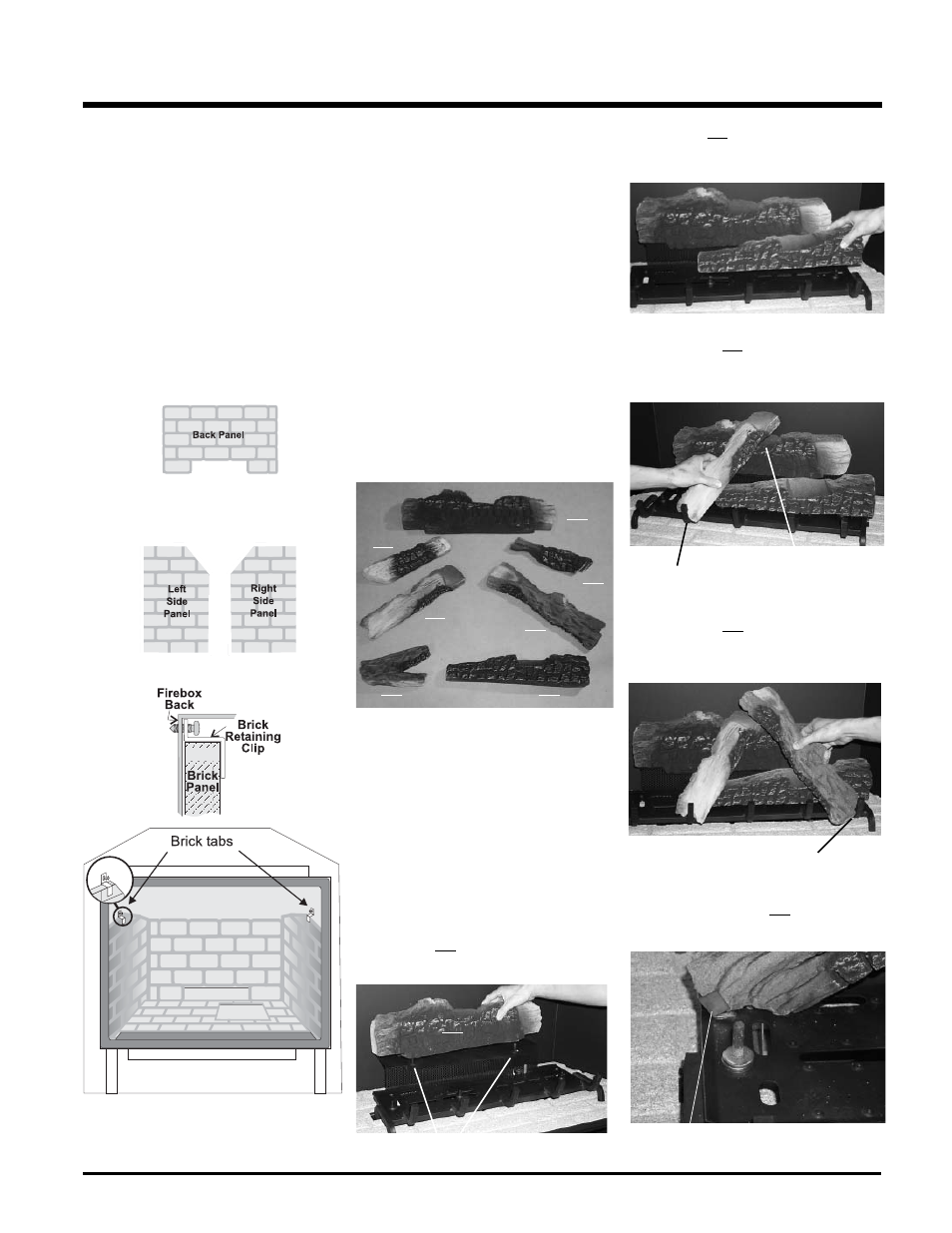

LOG SET
INSTALLATION
Read the instructions below carefully and
refer to the diagrams. If logs are broken
do not use the unit until they are replaced.
Broken logs can interfere with the pilot
operation.
Log Kit # 770-930 contains the following
pieces:
a) 306 Rear Log
b) 307 Middle Left Log
c) 308 Center Right Log
d) 309 Middle Right Log
e) 310 Front Left Log
f) 311 Center Left Log
g) 312 Front Bottom Log
h) Embers 902-154
i) Vermiculite 902-179
NOTE: If you will be installing the optional
Brick Panels, install the Brick Panels
prior to installing the logs.
1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
3) Place Log 306 on the rear log support pins
with the fl at side to the back.
The 3-digit numbers (ie. 312) are
molded into the rear of each log.
OPTIONAL
BRICK PANELS
1) Open the bottom louver door. Loosen the 2
screws holding the Burner ON/OFF switch
and bracket to the bottom louver and lift the
assembly out.
2) Remove facade.
3) Remove glass door. Remove logs.
Note: The logs must not be in the unit.
4) Insert the back brick panel fi rst by carefully
slipping it between the back wall of the
fi rebox and the rear log bracket.
5) Put the side panels in next. Slide them in
from the front and push them fl at up against
the wall. Be very careful not to scratch them
on the fi rebox hardware.
6) Install the 2 brick retaining clips, one on
each side.
Note: If the bottom brick panel must be removed:
Remove the Rear Log Stand, then remove
the Burner Tray. See the instructions in the
"Removing Valve" section.
INSTALLATION
308
306
307
309
312 310
311
306
Pins on the rear log support.
312
5) Position Log 311 across the notch in Log
306 and rest the bottom of the log into the
2nd grate tab.
311
6) Position Log 308 across the log landing in
Log 311. Rest the bottom of the log against
the 5th grate tab.
308
Notch
5th Grate Tab
2nd Grate Tab
306
311
7) Fit the bottom of Log 307 into the bracket
on the left side of the burner.
Bracket
307
2) Sprinkle the vermiculite all over the top of
the base brick panel.
