.2 The PLANE F
unction: Tilting the W
o
rk
ing Plane (Sof
tw
ar
e Option 1)
Input parameters

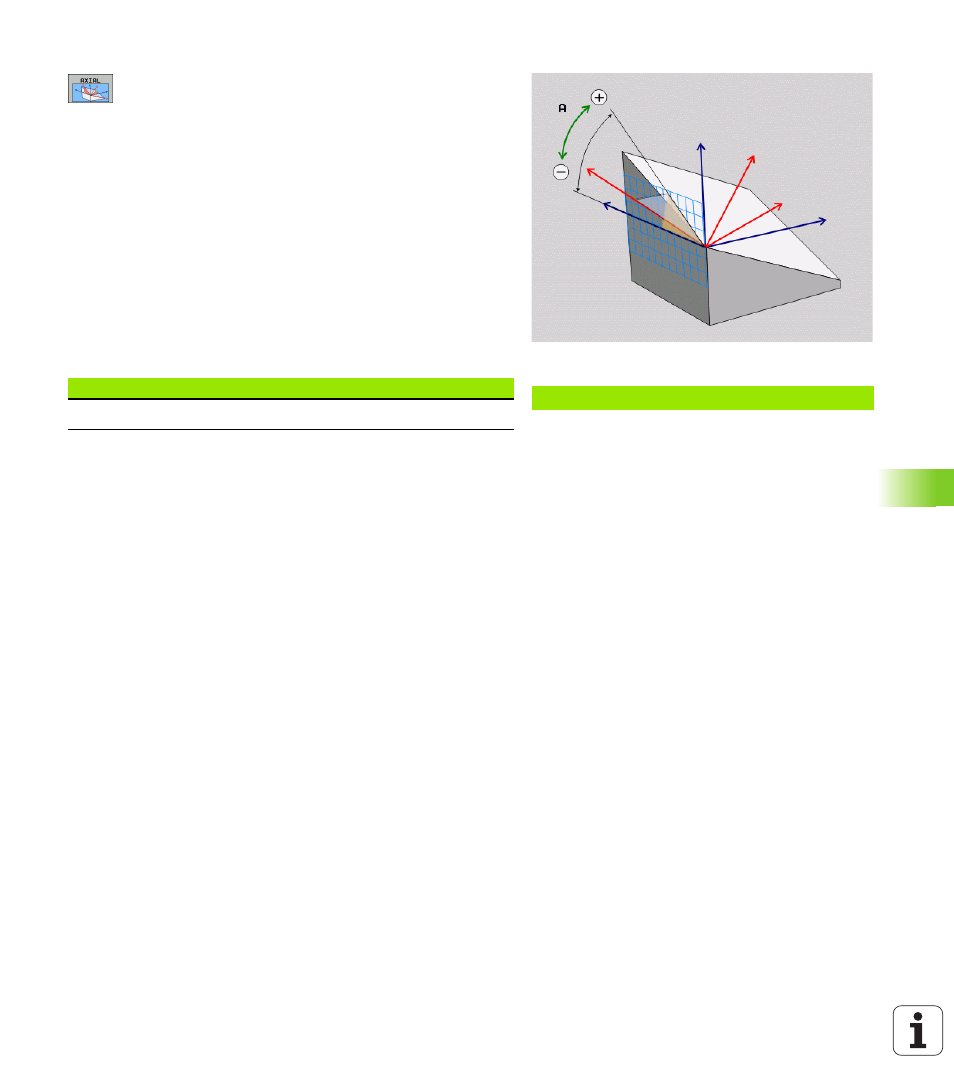

U Axis angle A?: Axis angle to which the A axis is to
be moved. If entered incrementally, it is the angle by
which the A axis is to be moved from its current
position. Input range: -99999.9999° to +99999.9999°
U Axis angle B?: Axis angle to which the B axis is to
be moved. If entered incrementally, it is the angle by
which the B axis is to be moved from its current
position. Input range: -99999.9999° to +99999.9999°
U Axis angle C?: Axis angle to which the C axis is to
be moved. If entered incrementally, it is the angle by
which the C axis is to be moved from its current
position. Input range: -99999.9999° to +99999.9999°
U Continue with the positioning properties (see
“Specifying the positioning behavior of the PLANE
function” on page 342)
Abbreviations used
Example: NC block
5 PLANE AXIAL B-45 .....
Abbreviation Meaning
AXIAL
