27
FEATURES AND CONTROLS
Switches

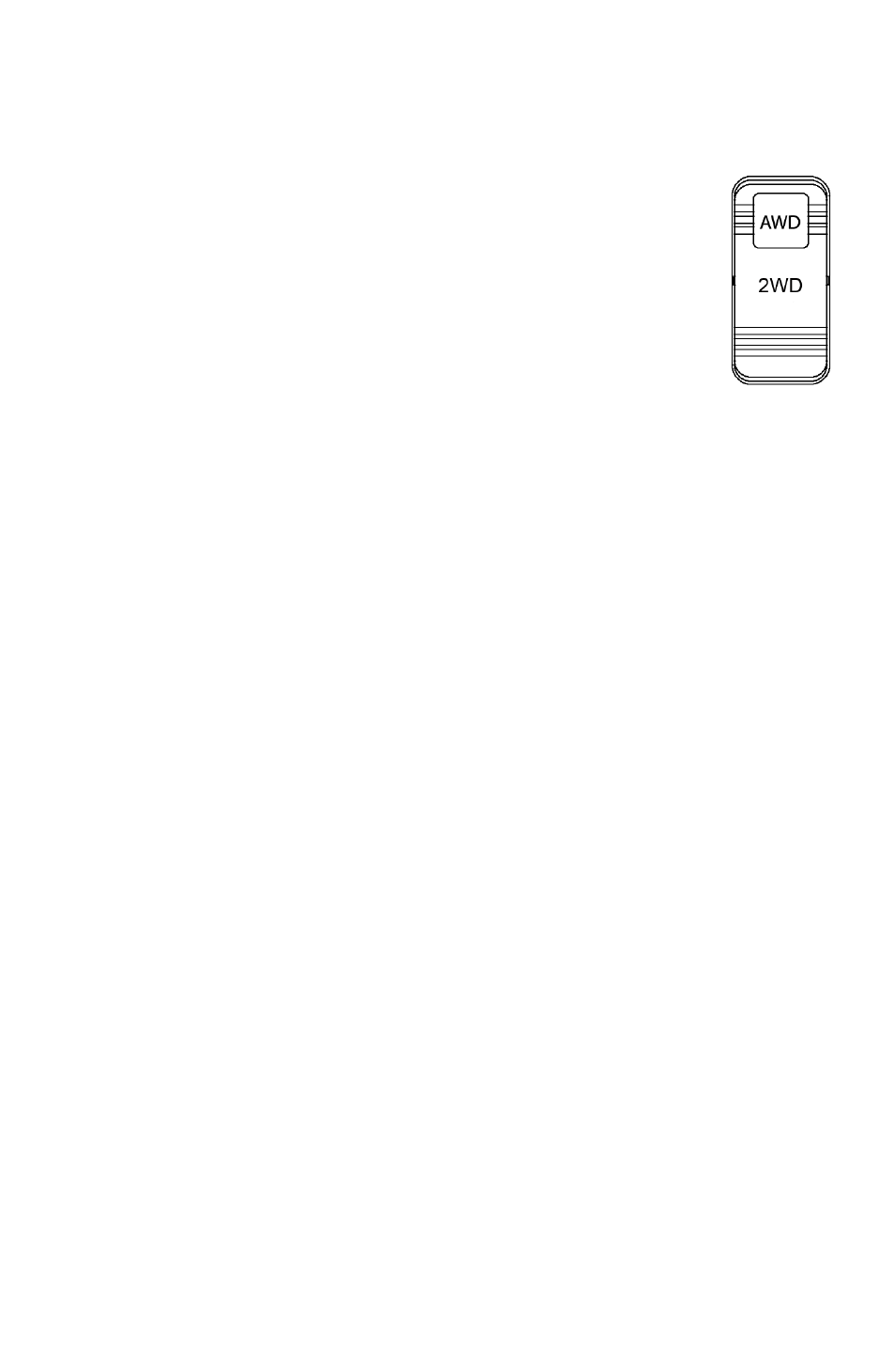

AWD/Differential Lock Switch
The AWD/Differential Switch has
three positions:
• All Wheel Drive (AWD)
• Differential Lock (2WD)
• Differential Unlock
Press the top of the rocker switch to
engage All Wheel Drive (AWD). See
page 59 for operating instructions.
Move the rocker switch to the center
position to lock the differential and
operate in rear wheel drive. Press the
bottom of the switch to unlock the dif-
ferential and allow the two rear drive
wheels to operate independently. See
page 60 for differential lock operating
instructions.
AWD
Differential Lock
Differential Unlock
