Chapter 1 Product Description

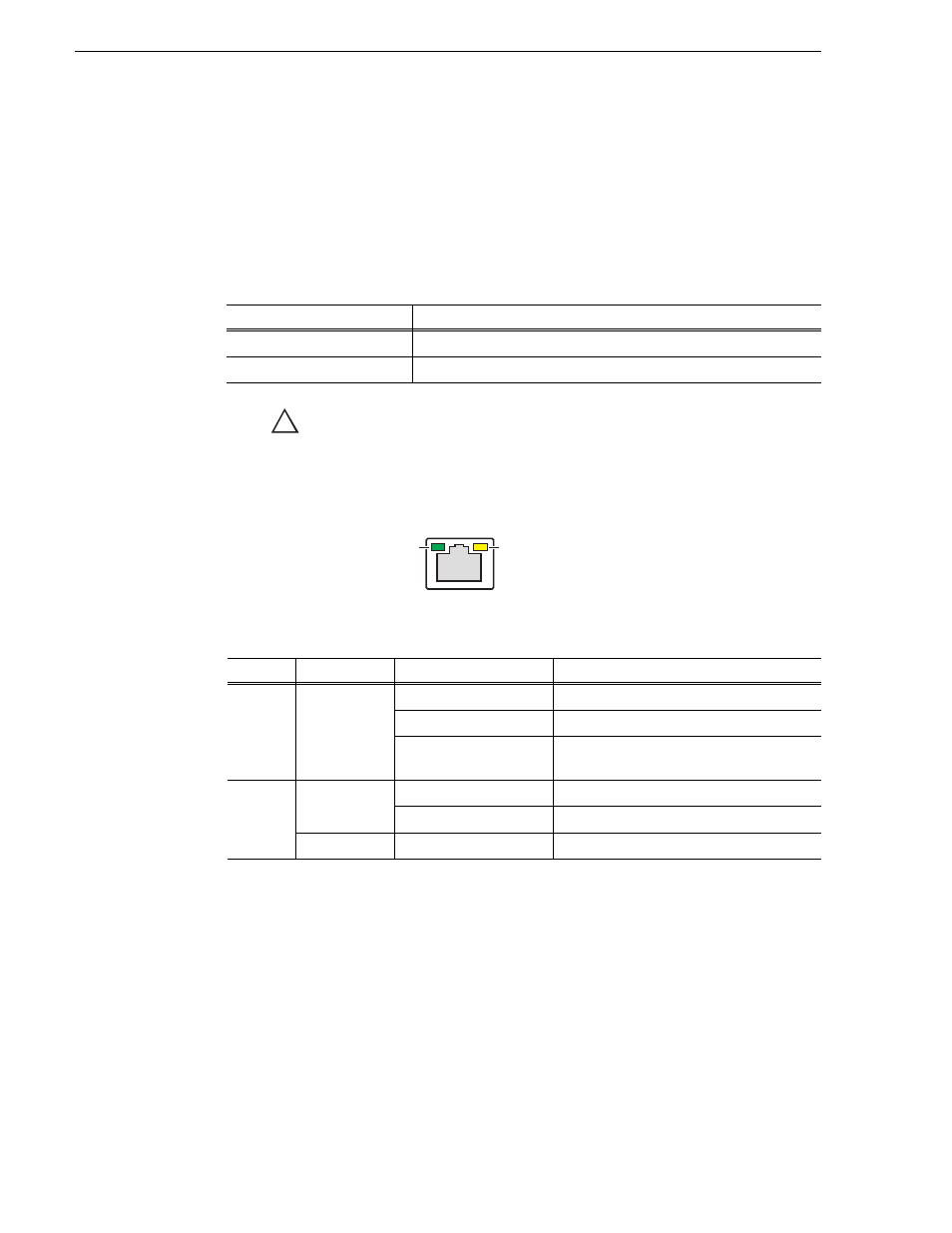

Status indicators
The following sections describe the visual indicators that communicate the current
operating status and system health of the T2.
Power LED
The Power LED indicates status as follows:
WARNING: The power switch does not turn off power to the system. To
turn power off, the system must be disconnected from the power source.
LAN connector indicator codes
The RJ-45 LAN connector includes integrated status LEDs. The LEDs oriented as
follows:
The meanings of the LED states are described in the following table:
If the LAN adapter is faulty, you must replace the motherboard. Contact Grass Valley
Support.
LED behavior Status Condition
Off The power is set to Off and the T2 is not operational.
Green steady on The power is set to On and the T2 is operational.
!
LED Color LED state Status Condition
Left Green Off LAN link is not established.
On (steady state) LAN link is established.
On (brighter and pulsing) The computer is communicating with
another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Green LED Green/Orange LED
