Adjust video output timing
42 PVS 3000 & PVS3500 Installation Guide 23 Febuary 2004
2. Select Video Timing in the Configuration Manager window. Page 1 of the Video
Timing dialog box appears.
3. Click Next to navigate to page 2 of 3.

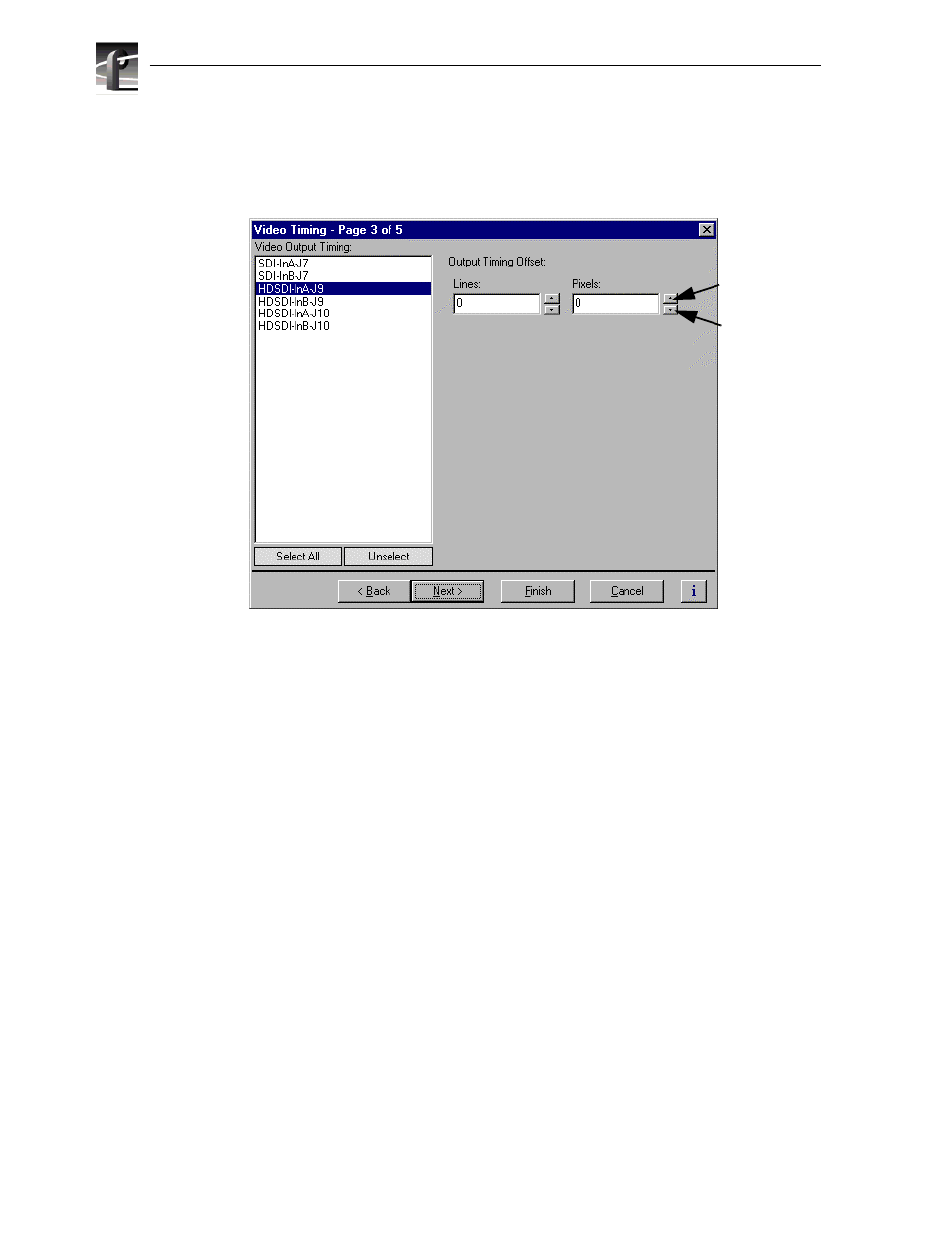

4. Select the video output from the list, then adjust the video output timing with the
timing controls.
NOTE: Use the Select All button to enter the same offset for all video outputs.
5. Repeat step 4 for each video output.
6. Click Finish to save your settings.
7. Continue with the next procedure in this guide to select RS-422 control protocol.
Delay
Advance
