18
Configuration
Button Definitions
Button Definitions
There are only a few button functions:
• Source.
• Destination.
• Previous Source.
• Salvo.
‘Previous Source’ and ‘Salvo’ buttons are available only when the panel is an NV9602 extension.
Button Specification

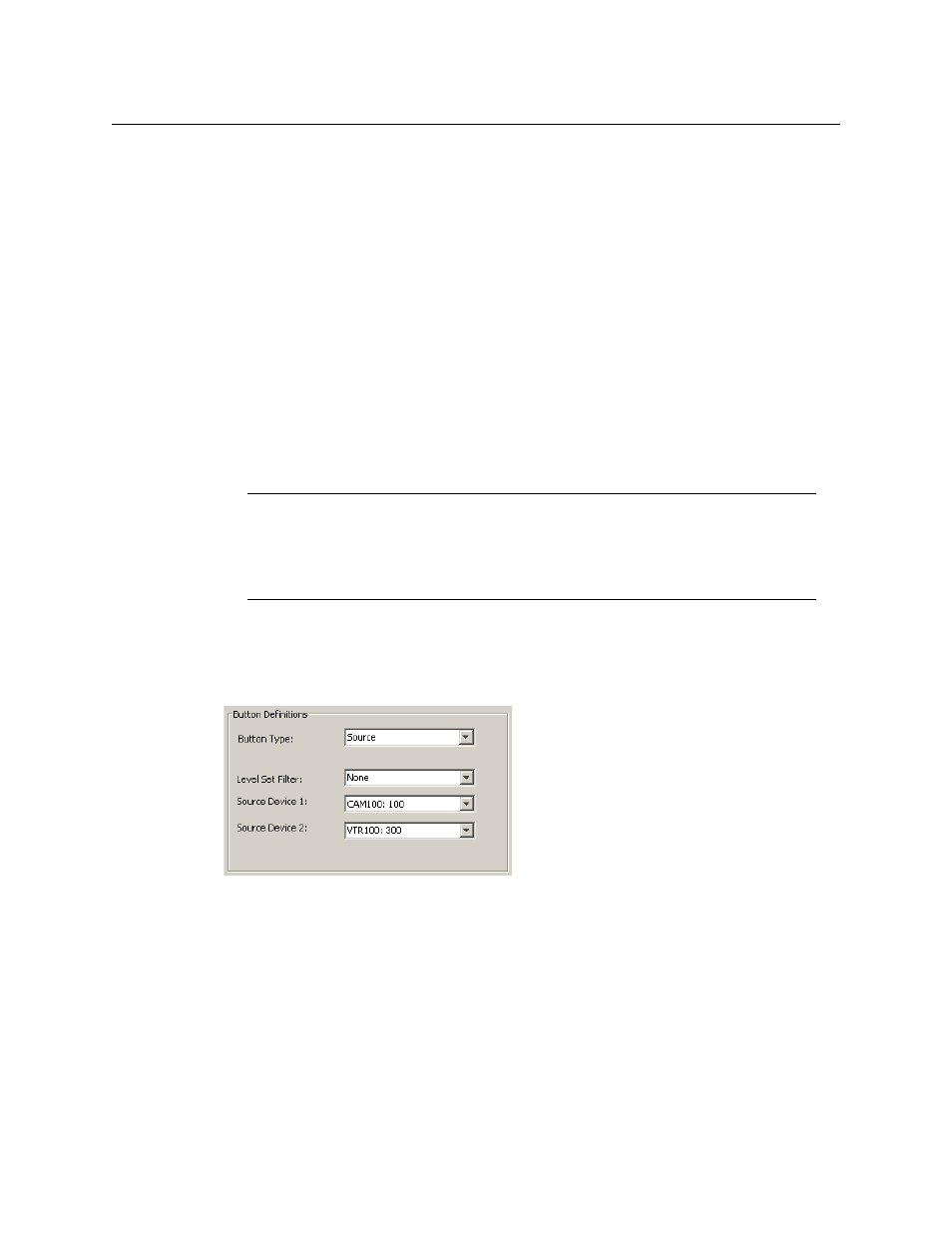

The button definition section configures the button you have selected in the image of the
NV9604:
When you choose a button type, additional drop-down menus can appear, depending on the
button type, allowing you to further specify the button’s behavior. Available options and selec-
tions vary from button type to button type.
When the NV9604 is used as an NV9602 extension, the use of the buttons depends on the mode
in which the NV9602 is configured.
Use as Slave Panel (The default is
unchecked.)
Check this box if the NV9604 for which this configuration applies is
to be used as an extension to an NV9602. When you do check this
box, a drop-down menu appears in which you can select the
NV9602 to which this NV9604 will be an extension. If there are no
entries in the drop-down menu, you cannot use the NV9604 as an
extension.
Note
During configuration, certain button fields contain a colon (:) and number after the
data in the field. The number is the record ID of the object in the NV9000 configuration
database. The record IDs can be ignored but might be of some use when the config-
urer is searching for items in the configuration database.
