8
Installation
Installation
Installation
Follow these steps to install a NV9604 control panel:
1 Mount, and secure, the panel in the rack.
The NV9604 is designed to mount in a 19” rack. Rack-mounting is not a requirement.
2 We assume that you have an Ethernet switch connected to the “Panel and Router Network”
port of your system controller. Connect an Ethernet cable from that switch to the RJ-45 port
at the rear of the NV9604.
3 Connect power.
Installing Software and Documentation
This document is available through the Miranda web site.
You must use NV9000-SE Utilities to configure the NV9604 control panel. Contact Miranda if you
need to obtain the latest version of this NV9000 configuration software.
You may use the Panel IP Configuration Utility if you want to your NV9604 to have a static IP
address (with respect to the system controller) or to use DHCP. The panel, as it comes from the
factory, defaults to DHCP.

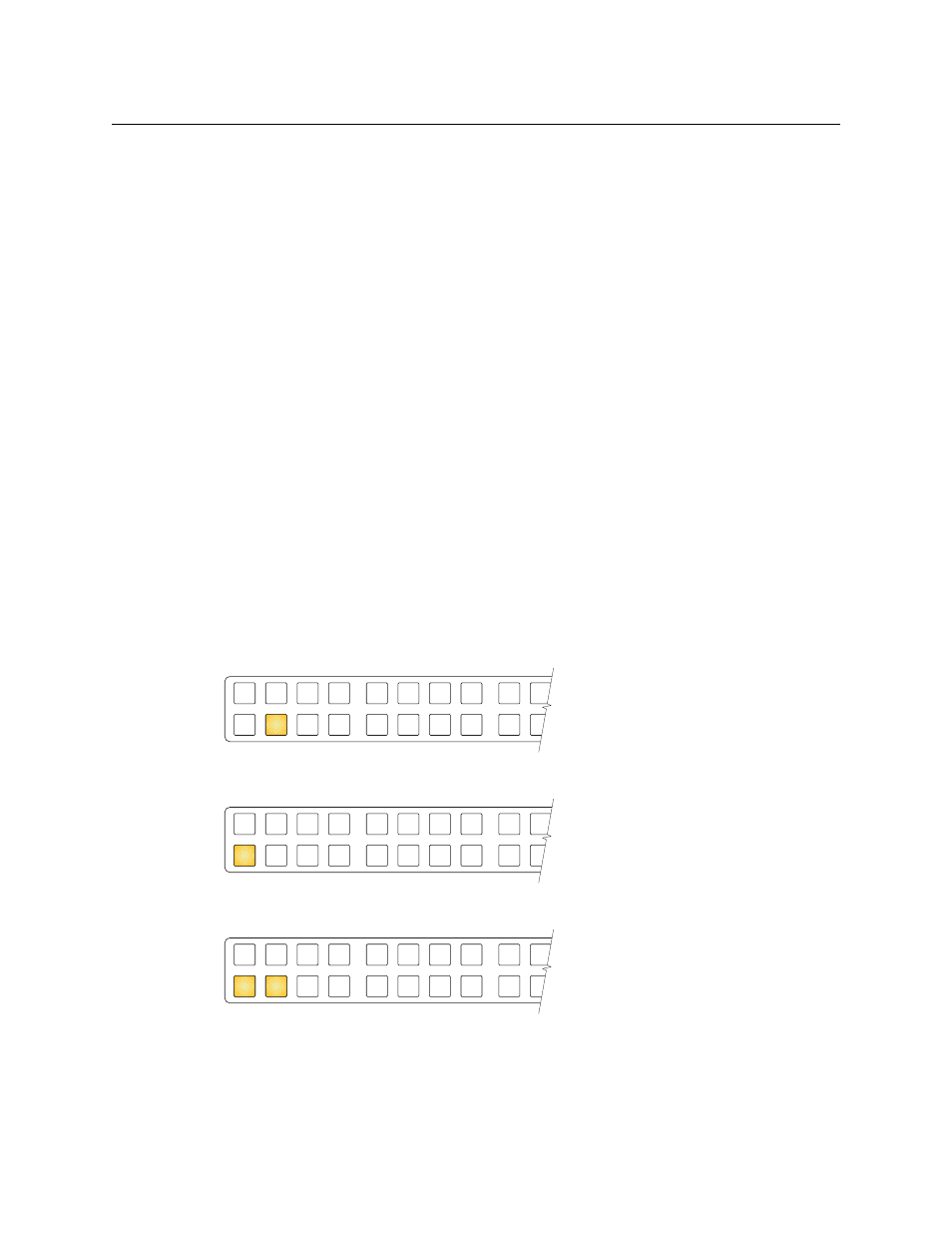

Initialization
Your NV9604 will go through a brief initialization sequence as it starts up.
If your panel has been configured and has a panel ID, it will reach its operating state in a few
seconds. If the panel ID is wrong, the second button in the lower row will light:
When the panel ID is correct and the panel is connected to the system controller, the first button
in the lower row will light momentarily:
While the panel establishes communication with the system controller, both of those buttons
will light:
After that, if all is well, the panel buttons will illuminate as they have been configured.
