NV9604 Panel Configuration Page
NV9604 Panel Configuration Page
This is the default NV9604 panel configuration page in NV9000-SE Utilities:

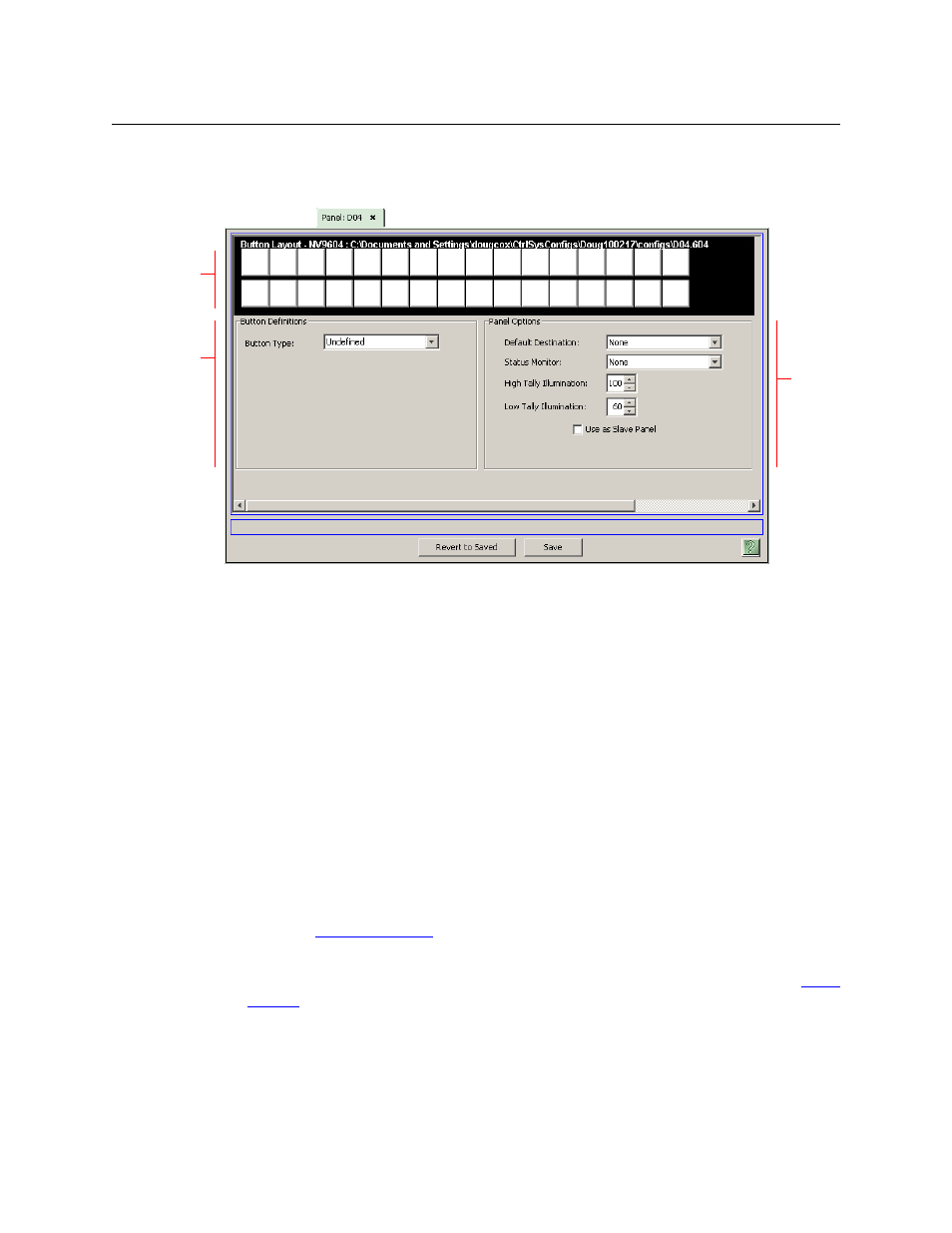

Fig. 4-1: NV9604 Configuration Page (Default)
After you configure buttons the appearance of the panel buttons will have changed. The panel
buttons on this page will show legends, determined from the button type assigned to the
button. (The panel’s actual buttons have clear plastic keycaps that you can remove and insert
button legends, graphic or text, of your own design.)
At the bottom of the page are two important configuration buttons: ‘Revert to Saved’ and ‘Save’.
The ‘Save’ button commits modifications you have just made. The ‘Revert to Saved’ button
restores the last saved version of the panel configuration, canceling any changes you just made.
Regions of the Configuration Page
Above the ‘Revert to Saved’ and ‘Save’ buttons (always present) there are 4 main regions:
• A graphic representation of the NV9604 panel.
Configurers must click a button “proxy” to select the button for configuration.
• Button definitions.
In this section, configurers make button assignments, using its pull-down menus and text
fields. See
Button Definitions , following.
• Panel options.
In this section, configurers may specify the behavioral characteristics of the panel. See Panel
Options , following.
Configuration Tasks
The person configuring an NV9604 panel will want to consider how best to use the buttons to
support the devices and routers in the router control system at hand. Trade-offs must be made.
Button
Definition
Section
Panel
Options
Panel Image:
