Technical Details
Drawings

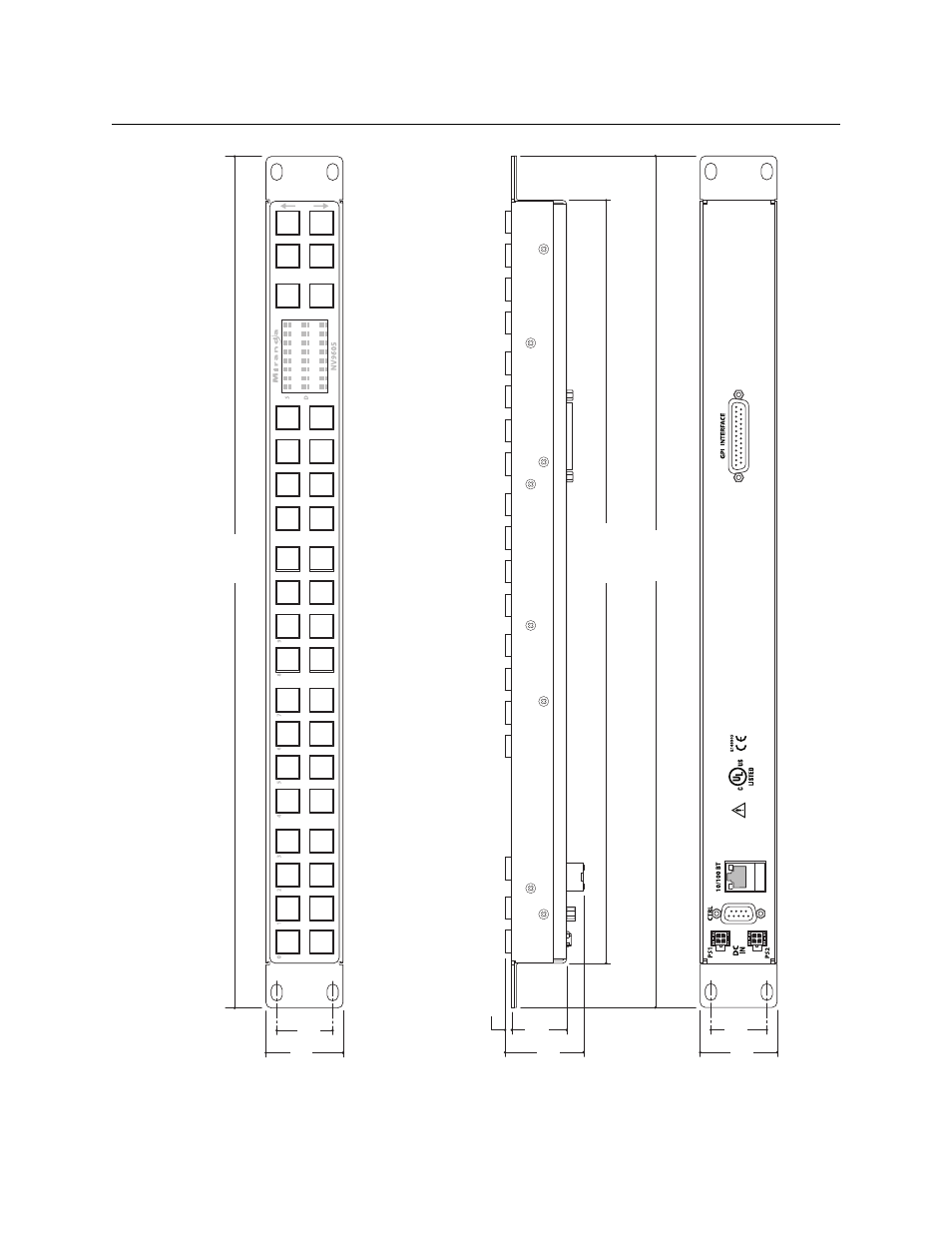

Fig. 7-2: Front, Top, and Rear Views of the NV9605
1.25 [31
.8]
1.72 [43.7]
19.0 [482.6]
1.23 [31.2]
1.75 [44.5]
0.15 [3.8]
1.25 [31
.8]
1.72 [43.7]
19.0 [482.6] 17
.024 [432.4]
