Media Conversion Software DVE Editor
Miranda Technologies Ltd Page 113

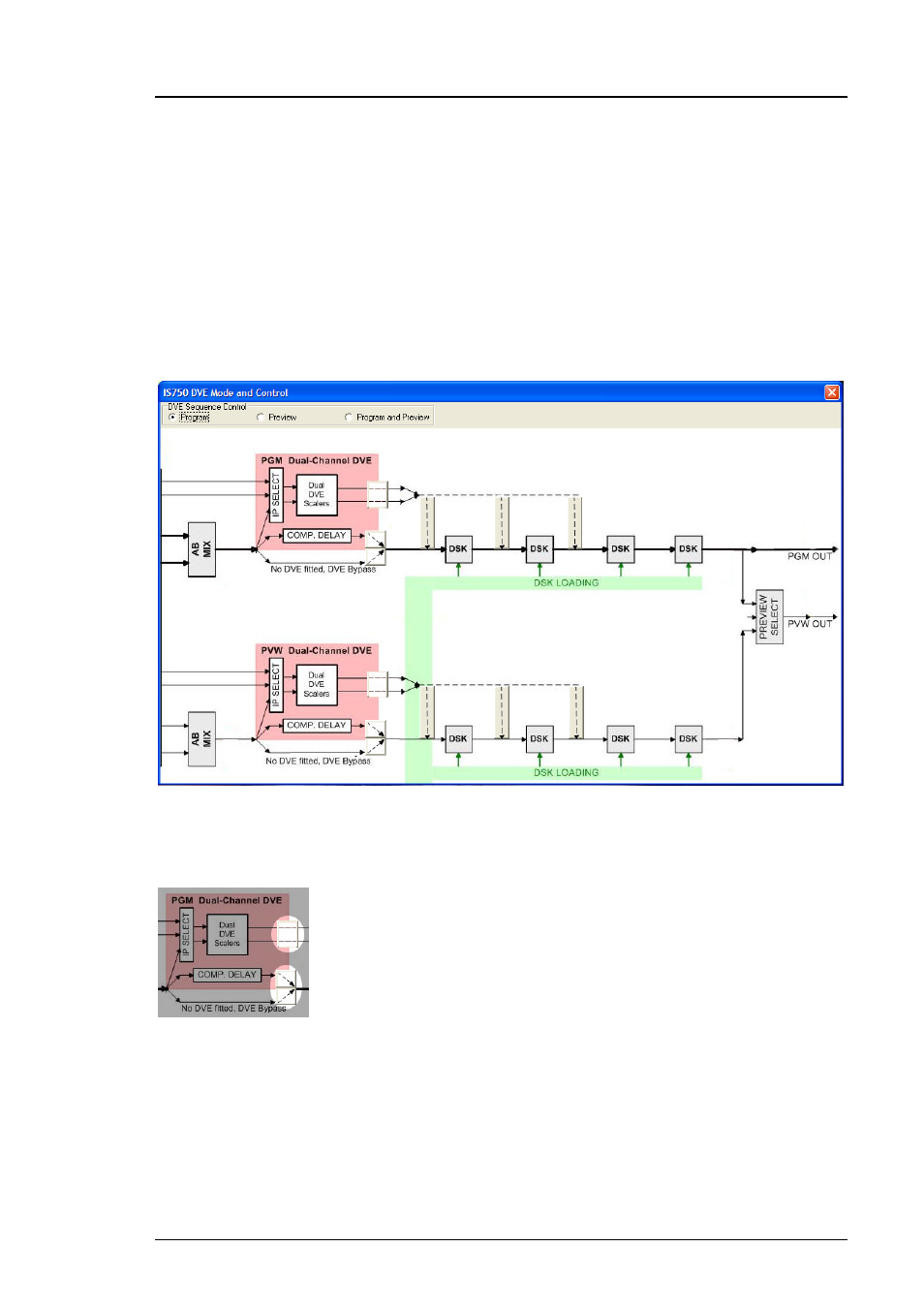

Imagestore 750 DVE Modes
The IS750 has two separate DVEs, so as well as setting the appropriate DVE
mode, it is important to select which of the DVEs the editor should control.
The editor can control both simultaneously as well each one individually. Use
the radio buttons at the top of the window to chose your required setting.
The DVE mode is combination of two separate settings:
Use the three highlighted boxes to switch between:
• Bypass - the DVE is disabled and neither video
nor audio are delayed.
• None (Delay) - the DVE is disabled, but both
video and audio are delayed by 1 frame.
• Enabled - allows normal DVE processing. Video and audio are
delayed by 1 frame.
