KAYENNE — Installation Planning Guide 69

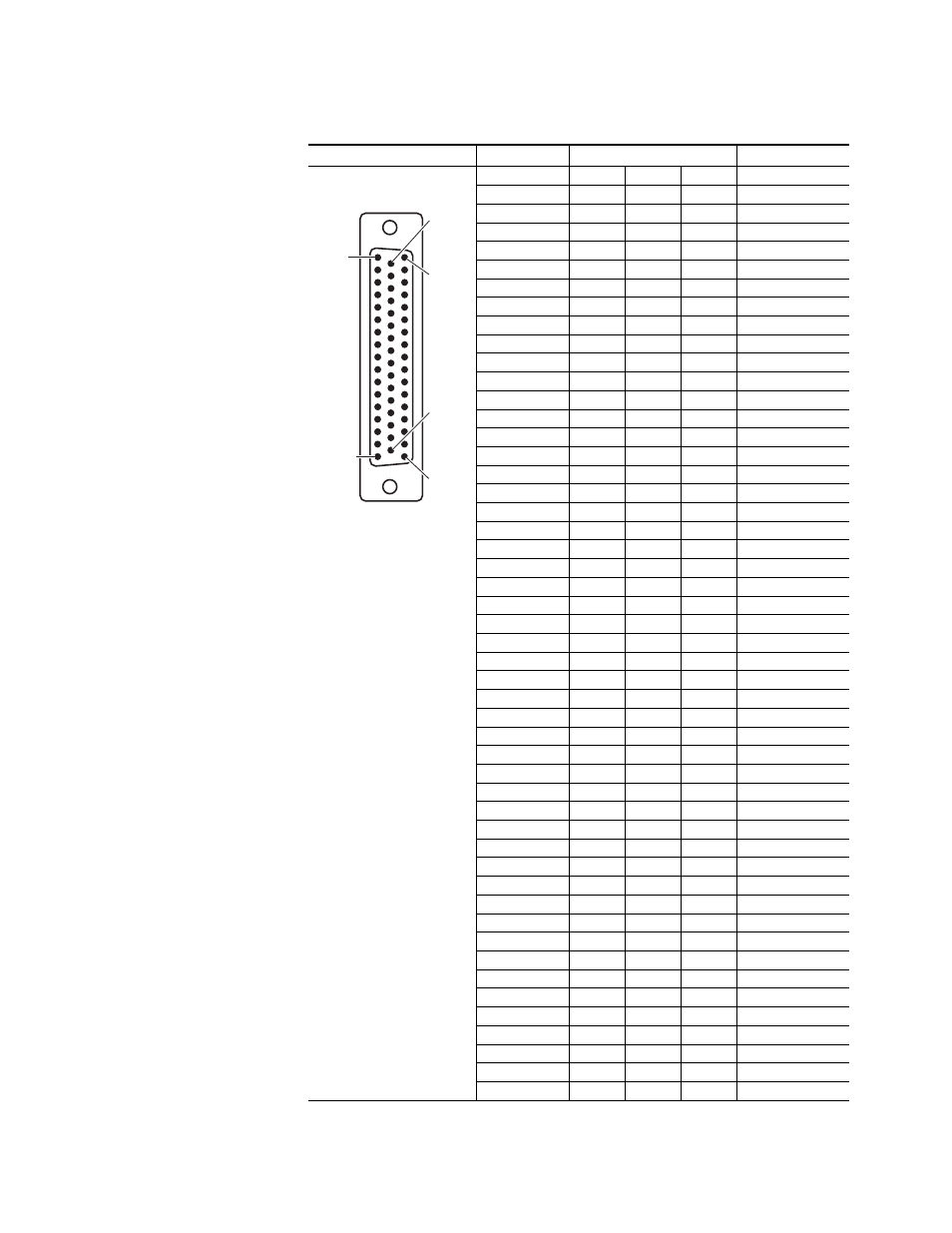

Pin Assignments
8-RU Frame (GPI In 17-24, Tally 49 - 72, GPI Out 17-24)
Socket Ribbon Cable 50-Pin D-Sub Signal
1 1 GPIInCom
2 34 GPIInCom
3 18 GPIIn17
4 2 GPIIn18
5 35 GPIIn19
6 19 GPIIn20
7 3 GPIIn21
8 36 GPIIn22
9 20 GPIIn23
10 4 GPIIn24
11 37 TallyComS
12 21 Tally49S
13 5 Tally50S
14 38 Tally51S
15 22 Tally52S
16 6 TallyComT
17 39 Tally53T
18 23 Tally54T
19 7 Tally55T
20 40 Tally56T
21 24 TallyComU
22 8 Tally57U
23 41 Tally58U
24 25 Tally59U
25 9 Tally60U
26 42 TallyComV
27 26 Tally61V
28 10 Tally62V
29 43 Tally63V
30 27 Tally64V
31 11 TallyComW
32 44 Tally65W
33 28 Tally66W
34 12 Tally67W
35 45 Tally68W
36 29 TallyComX
37 13 Tally69X
38 46 Tally70X
39 30 Tally71X
40 14 Tally72X
41 47 GPIOutComY
42 31 GPIOut17Y
43 15 GPIOut18Y
44 48 GPIOut19Y
45 32 GPIOut20Y
46 16 GPIOutComZ
47 49 GPIOut21Z
48 33 GPIOut22Z
49 17 GPIOut23Z
50 50 GPIOut24Z
D-50 Female
Pin 1
Pin 17
Pin 33
Pin 50
Pin 18
Pin 34
