36 KAYENNE — Installation Planning Guide
Section 2 — Kayenne Control Surfaces

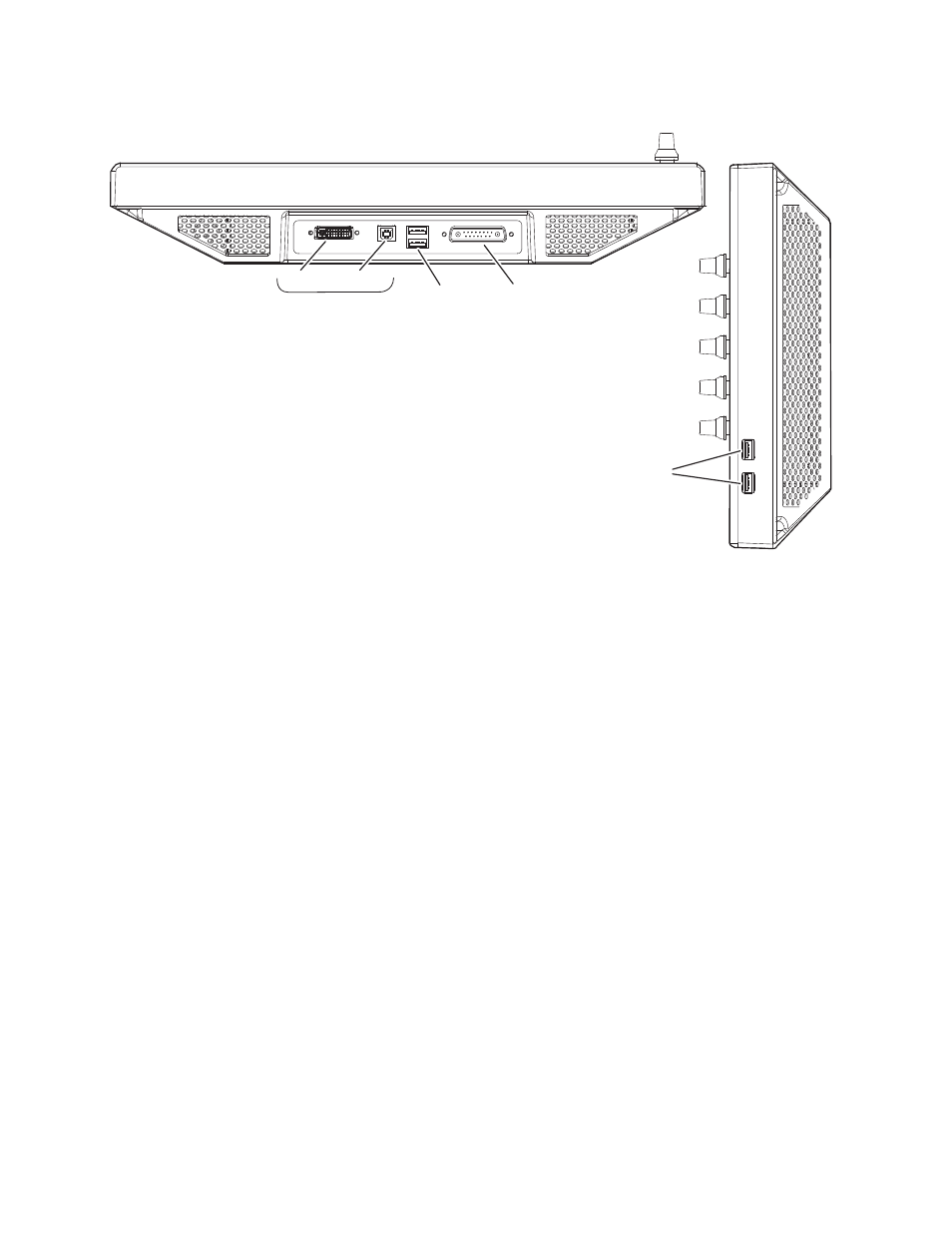

Figure 39. Menu Panel Connections
Menu Panel Cooling
CAUTION Do not install the Menu Panel into an enclosed space. Passive
air movement is required for cooling.
The Kayenne Menu Panel is externally powered and does not have internal
cooling fans. The electronics are convection cooled through perforations in
the rear of the Menu Panel chassis. Mounting the panel free-standing with
the articulated arm allows maximum air movement, and is the preferred
installation method. If an alternative method is used, ensure that all vents
are unobstructed and adequate airflow is available.
Menu Panel Articulated Arm Installation
The Kayenne Menu Panel has VESA 75 threads on the back that can be used
to mount the Menu Panel to the supplied articulated arm, or any VESA
compliant mounting system.
Side View, Right
8623266_11
Bottom View
USB (2)
USB (2)
DVI-D USB Type B
Optional use with PC
PCU Connector
