42 KAYENNE — Installation Planning Guide
Section 3 — Kayenne Frames
8-RU Frame Rack Mounting

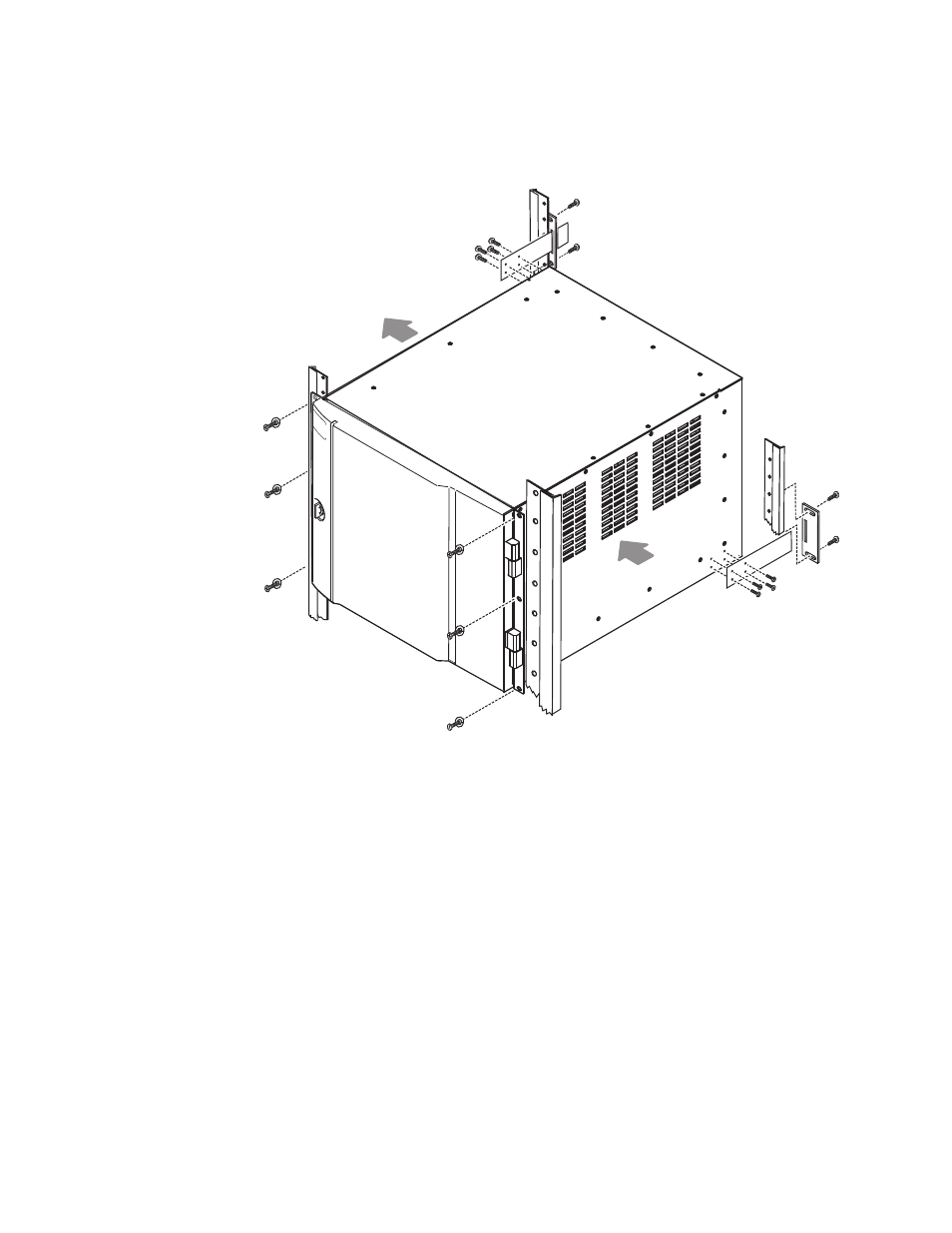

Figure 43. Kayenne 8-RU Frame Rack Mounting and Cooling Airflow
CAUTION Kayenne Frames (8-RU, 4-RU, and PCU) installations require the use of the
provided rear rack supports.
Air intake holes exist on the right side of the frame (as you face the frame
front) and air exhaust holes are on the left. Make sure adequate ventilation
is provided for the Kayenne Frame. Do not block ventilation holes, which
could make the frame overheat.
Door Removal Clearance
CAUTION Mounting a Kayenne Frame in a rack immediately below equipment that
extends forward from the rack may not provide enough clearance to com-
pletely remove the Kayenne door.
The Kayenne frame door should be able to be completely removed when
installed in a rack immediately below conventional flush mounted rack-ear
only equipment.
Air
Intake
Rear Rack
Support
Air
Exhaust
8623266_53
