Page 66
66
KAYENNE — Installation Planning Guide
Section 4 — System Cabling
RS-232 Ports
RS-232 serial ports are located on the front of each processor board (Video
Processor, Panel Processor, Menu Processor), and are available for mainte-
nance and diagnostics.
Standard VGA and keyboard ports are also available on all processor
boards, and are also used for maintenance.

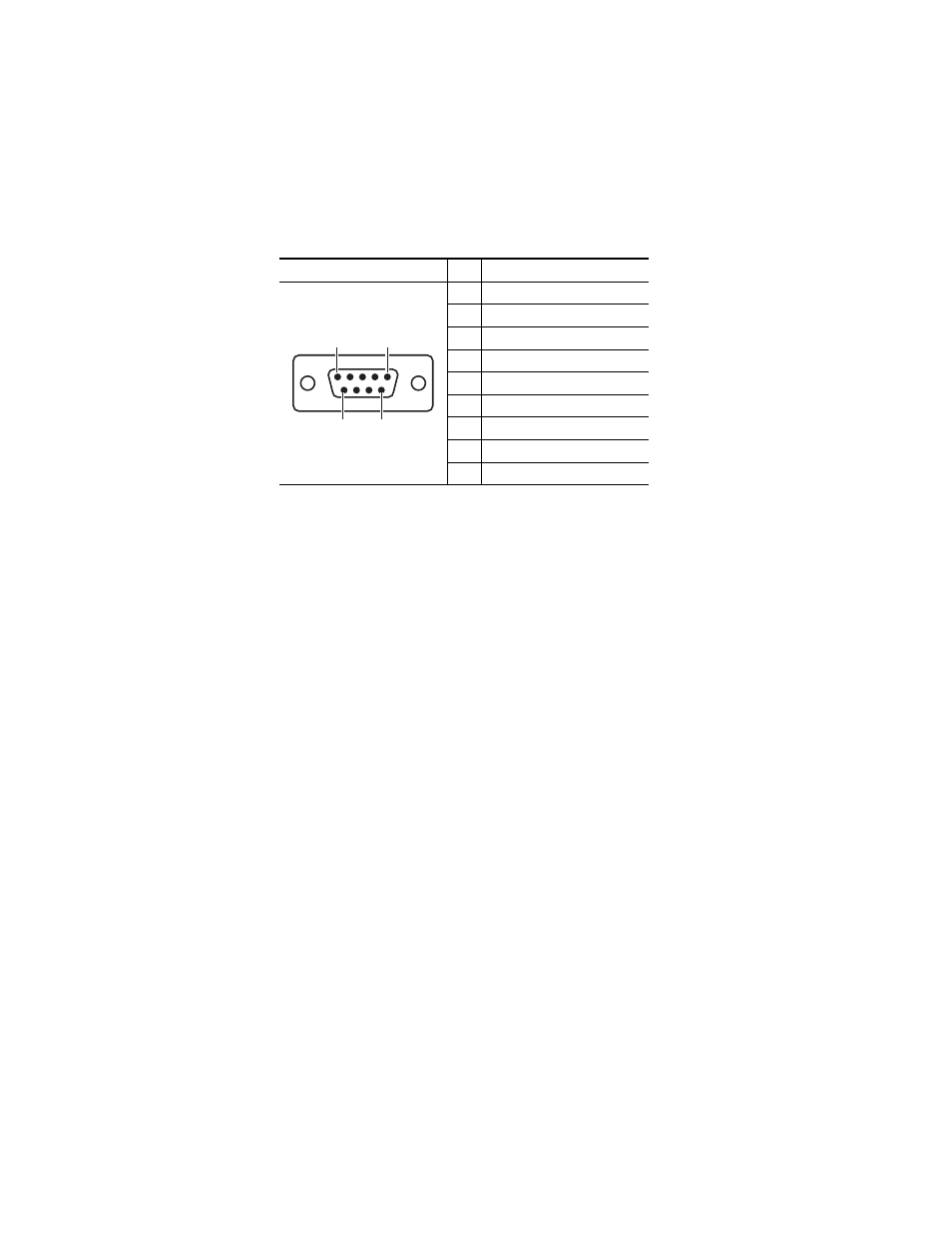

Table 6.
Socket
Pin
Signal
1
Chassis Ground
2
Transmit Data
3
Receive Data
4
Not used
5
Signal Ground
6
Not used
7
Clear to Send
8
Request to Send
9
Not used
Pin 1
Pin 5
Pin 6
Pin 9
D-9 Female
