56 KAYENNE — Installation Planning Guide
Section 4 — System Cabling
Using a second PCU, Kayenne suites can be located anywhere on the net-
work, permitting system control from different rooms, floors, or even dif-
ferent buildings (
Figure 58 ).

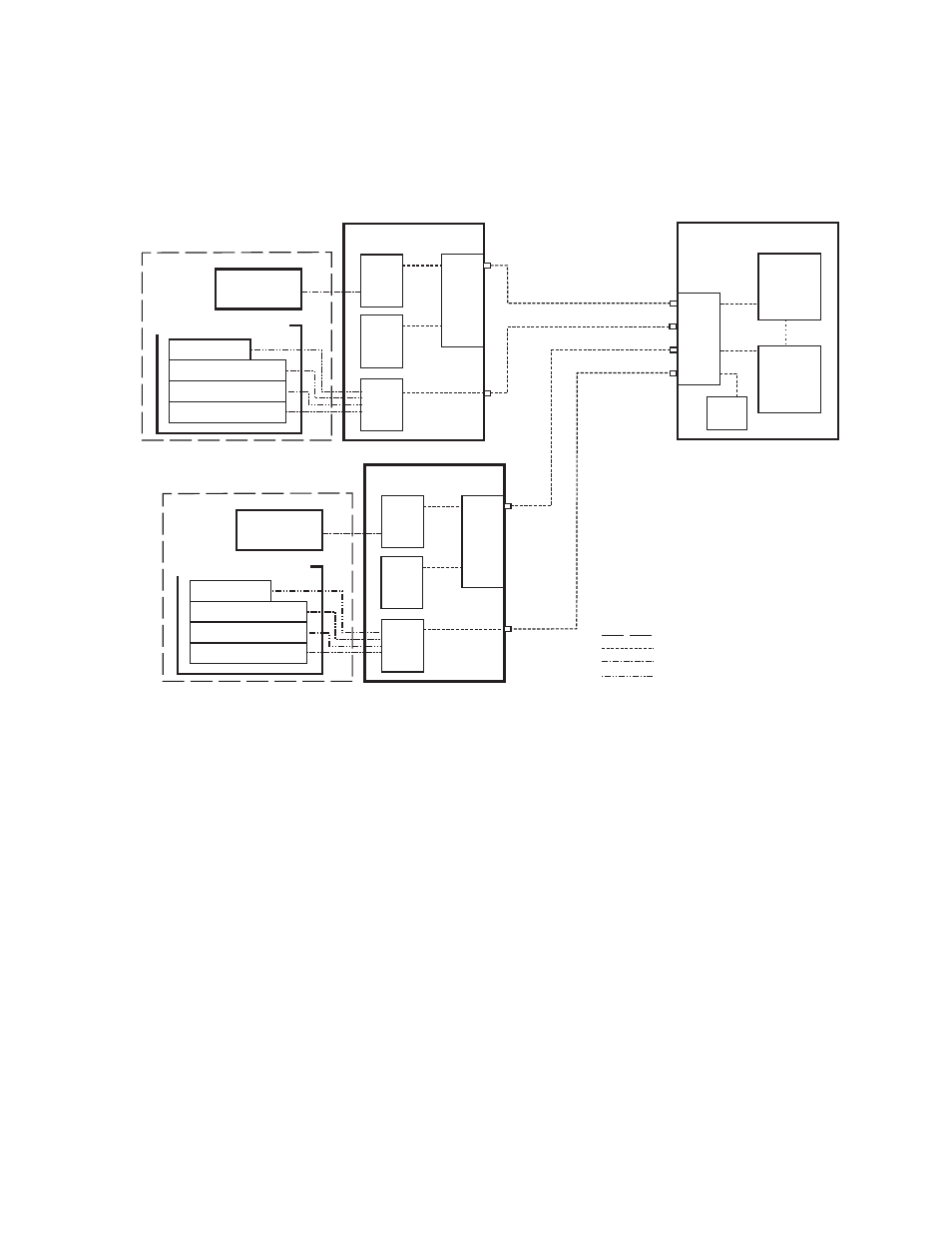

Figure 58. Two Suites Using Two PCUs
Customer Supplied Ethernet Routers and Switches
Existing facility Ethernet switches can be used in conjunction with a
Kayenne system. If connecting to a network area outside that used by the
Kayenne system, use of an appropriately configured Ethernet Router is
strongly advised. This reduces network traffic on the Kayenne network and
keeps it isolated. Any Ethernet switches added specifically for use with the
8623266_42_
r2
Menu Panel
Kayenne Control Panel
Local Aux Stripe
ME Stripe
ME Stripe
ME Stripe
Suite Boundary
Ethernet
Custom Multi-Pin (Menu, 15m / 50ft max length)
Custom Multi-Pin (Panel, 15m / 50ft max length)
Ethernet
(100m / 300ft max single hop length,
unlimited distance using switches)
Internal
Control
Kayenne Video Processor
Frame
Video
Processor
CPU
Store
CPU
Eh
te
rne
t Swi
tch
1
2
3
4
5
6
7
8
Option
Slot
Panel Main LAN
Eh
te
rne
t Swi
tch
1
2
3
4
5
6
7
8
Kayenne PCU 1
Menu
CPU
Panel
CPU
Menu Panel
Kayenne Control Panel
Local Aux Stripe
ME Stripe
ME Stripe
ME Stripe
Panel Main LAN
Eh
te
rne
t Swi
tch
1
2
3
4
5
6
7
8
Kayenne PCU 2
Menu
CPU
Panel
CPU
Menu
CPU
(option)
Menu
CPU
(option)
Kayenne Suite 1
Kayenne Suite 2
