Projector + NEC PC-98 series
Make sure that your equipment is turned off before connection.
Important:
• Connectors or analog RGB output adapters may be necessary depending on the personal computer connected to
this projector. Please contact your dealer.
• The audio input for a personal computer is the stereo mini jack. There are some personal computers that have
different type or no audio outputs. Please ask your dealer for details.
• For connection details, refer to the owner's guide of each component.

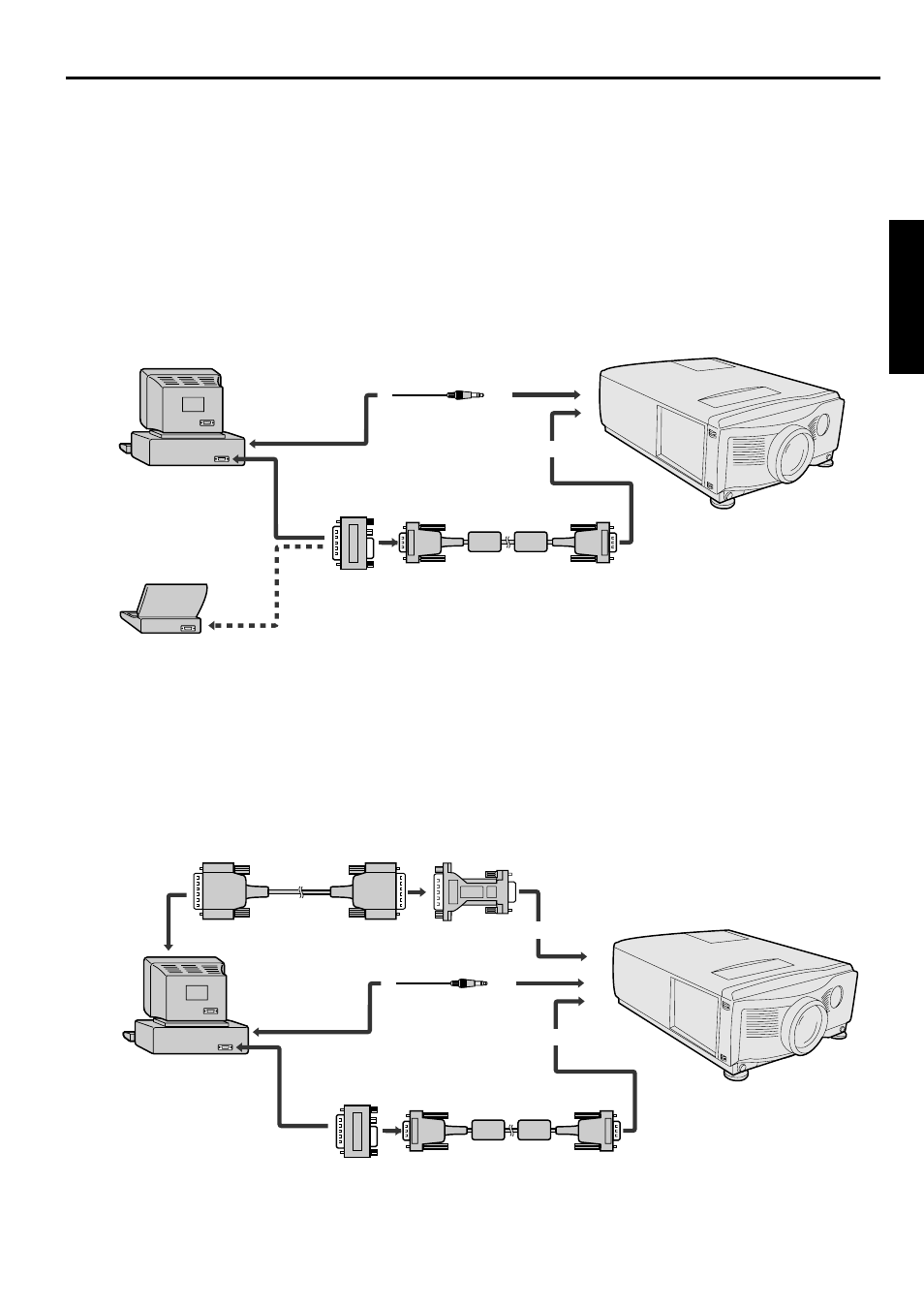

to AUDIO
desktop computer
RGB cable
to analog RGB display
connector
notebook computer
RGB Conversion
adapter for NEC
PC (option)
to analog RGB
display connector
to PC audio
output
to RGB 1 IN
When outputting to both a PC monitor and the projector
to AUDIO
desktop computer
RGB cable
RGB Conversion
adapter for NEC
PC (option)
Monitor cable
Monitor
Conversion
adapter
to analog RGB
display connector
to PC audio
output
to RGB 1 IN
to PC
monitor
to RGB OUT
