Carrier module removal
Before doing this task, do the following:
•
Remove the top cover.
•
Unfasten/disconnect cables.
•
Remove the rear panel.

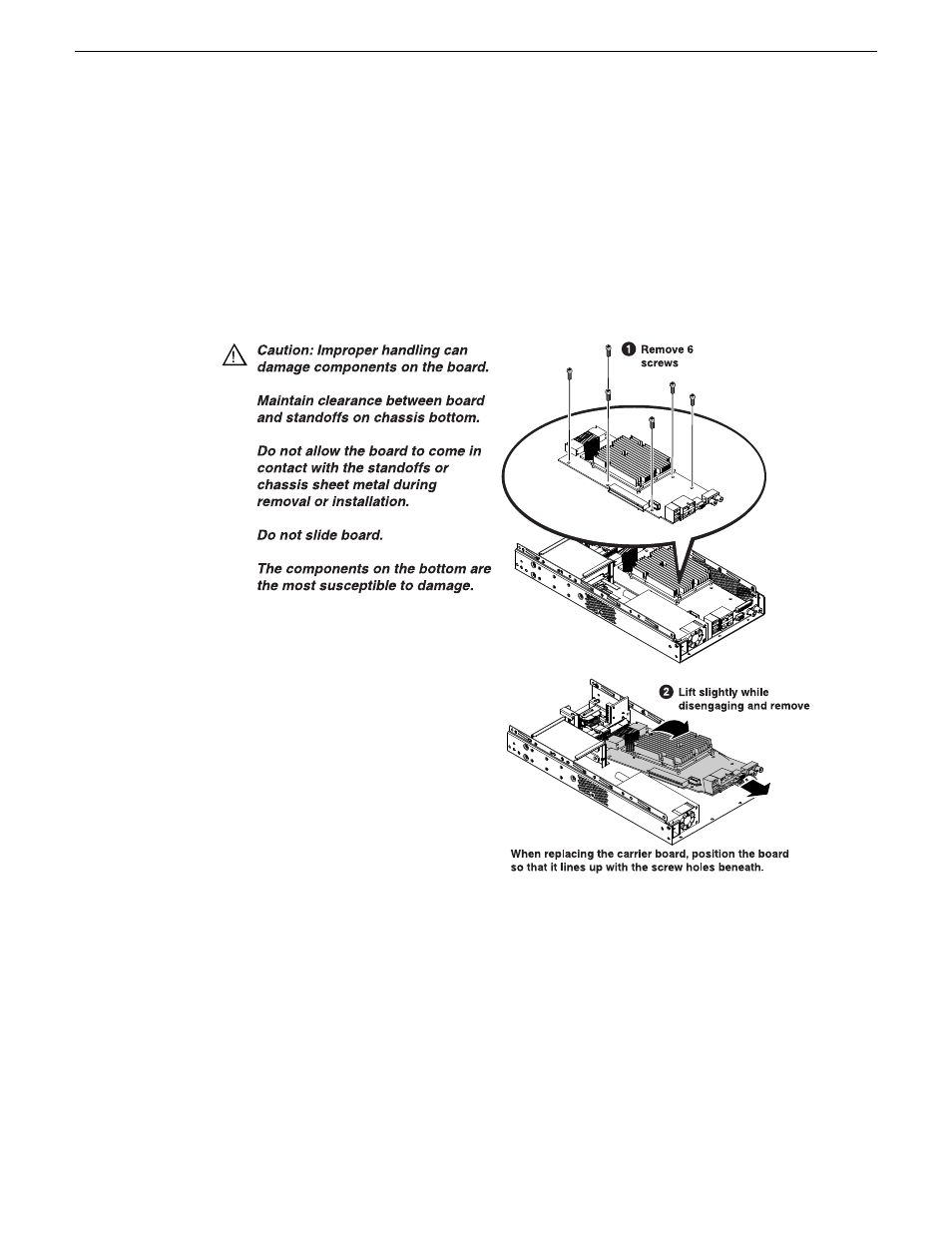

To remove the carrier module, proceed as illustrated.
Related Topics
Installing components and dressing cables
on page 102
Power supply removal
Additional tool needed:
•
1/4” nutdriver
Before doing this task, do the following:
•
Remove the top cover.
06 November 2012
K2 Solo 3G Service Manual
99
Removing and replacing FRUs
