Front bezel removal k2 solo, Compactflash boot media removal k2 solo, Fan assembly removal – Grass Valley K2 Solo 3G Client Service Manual v.9.0 User Manual
Page 91

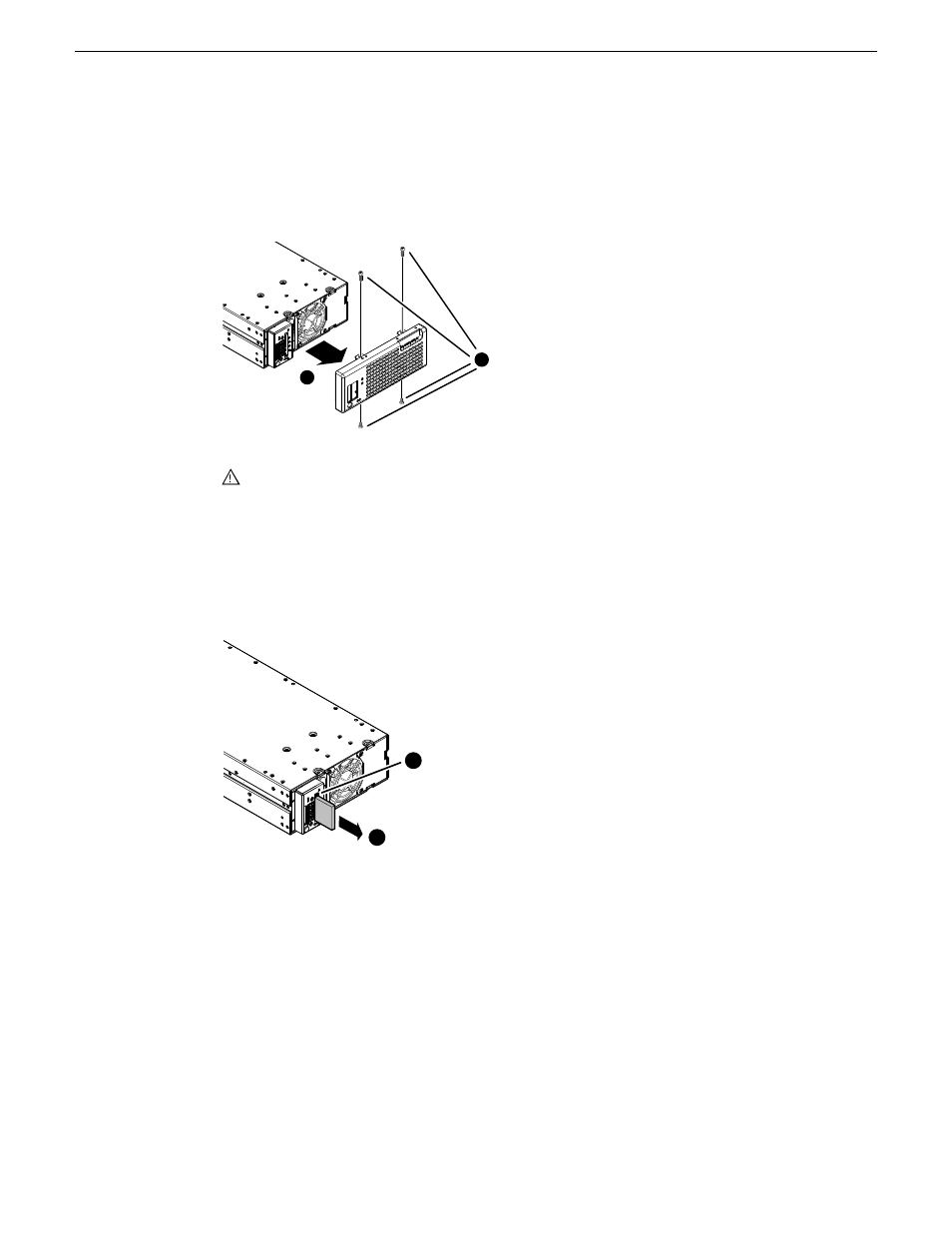

Front bezel removal K2 Solo
To remove the front bezel, proceed as illustrated.
Remove bezel
Remove
4 screws
1
2
CAUTION: Do not remove bezel while power is on. If powered, the fan can turn on with
moving blades exposed.
CompactFlash boot media removal K2 Solo
To remove the boot media, first remove the front bezel, then proceed as illustrated.
Slide out
2
Push button.
Use pencil or
similar implement.
1
You must use the CompactFlash boot media provided by Grass Valley. Do not use CompactFlash
media procured elsewhere.
Fan assembly removal
Additional tools needed:
•
#2 Phillips screwdriver
06 November 2012
K2 Solo 3G Service Manual
91
Removing and replacing FRUs
