• Remove the fan assembly.

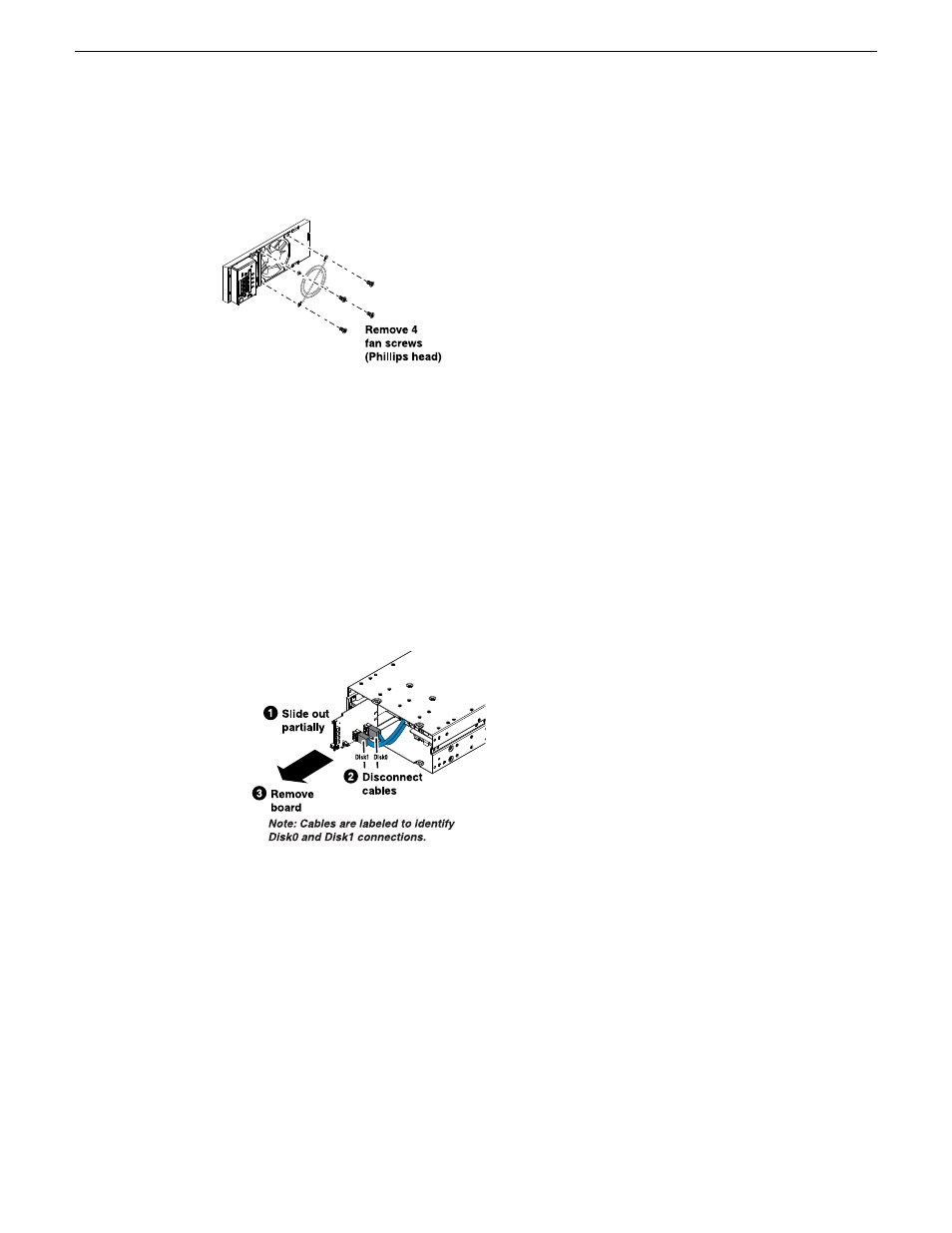

To remove the fan, proceed as illustrated.
Disk controller board removal
Before doing this task, do the following:
• Remove the front bezel.
• Remove the fan assembly.
To remove the disk controller board, proceed as illustrated.
Related Topics
Restoring disk controller configuration on page 56
Front interconnect board removal
Before doing this task, do the following:
• Remove the front bezel.
06 November 2012 K2 Solo 3G Service Manual 93
Removing and replacing FRUs
