47
Converting the TR6442i Viper II Rack Mount Unit

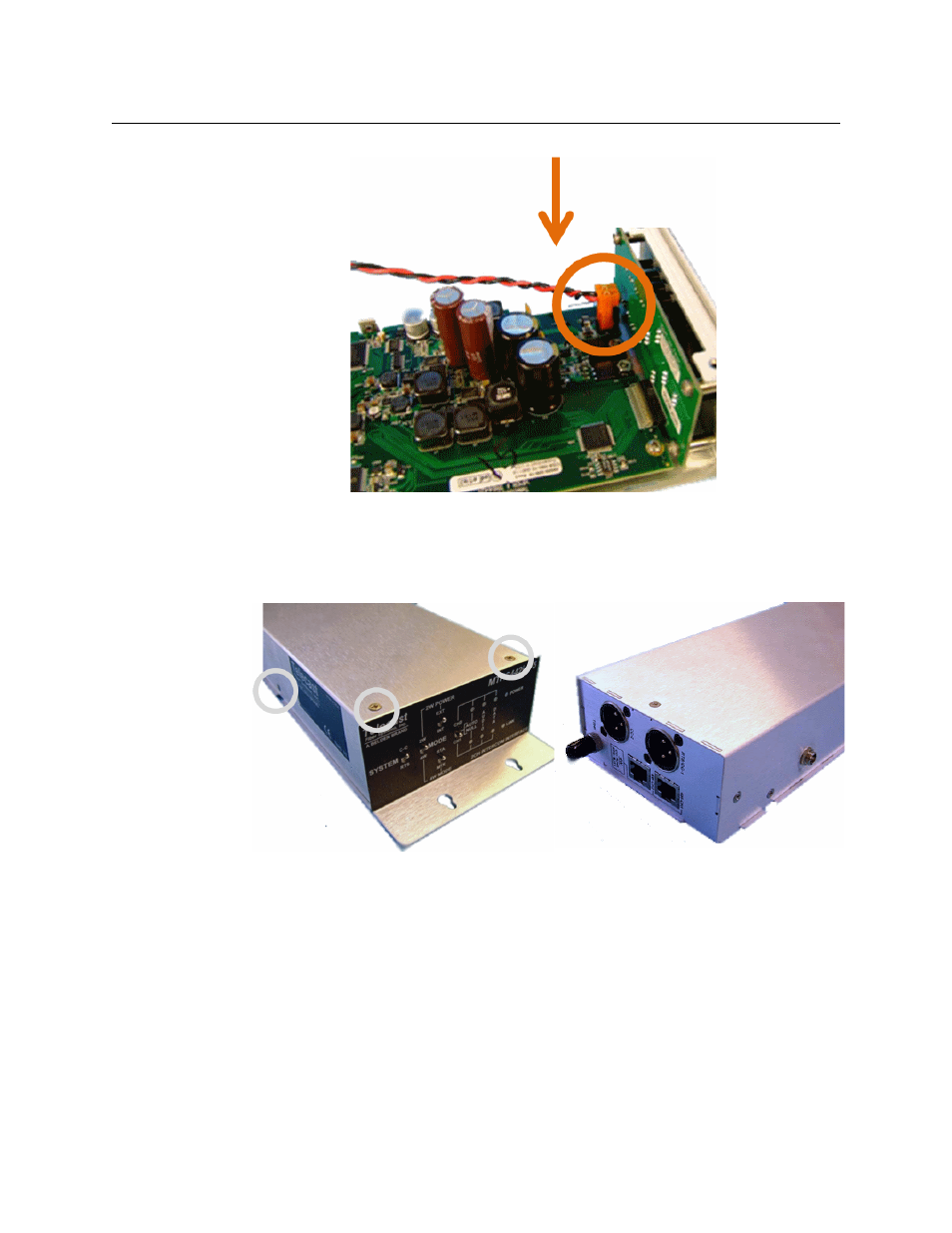

Fig. A-17: Re-install the power connector
Replace the cover on the unit making sure not to pinch the Fiber Cable and the Power
Cable between the cover and the main chassis.
25 Replace all nine screw removed in Steps 1 and 2. Three of the screws are shown here.
Fig. A-18: Replace the screws and connect the power
26 Reconnect the CommLink unit to your system components and to power. Check that all
of the indicator LEDs and switches on the front panel function properly and that the
system performs as expected.
