8949MDA-CFR/-SFR—Instruction Manual 21
Cabling
8949MDA-SFR Module Cabling
Refer to Table 4 and Figure 7 for 8949MDA-SFR cabling information.

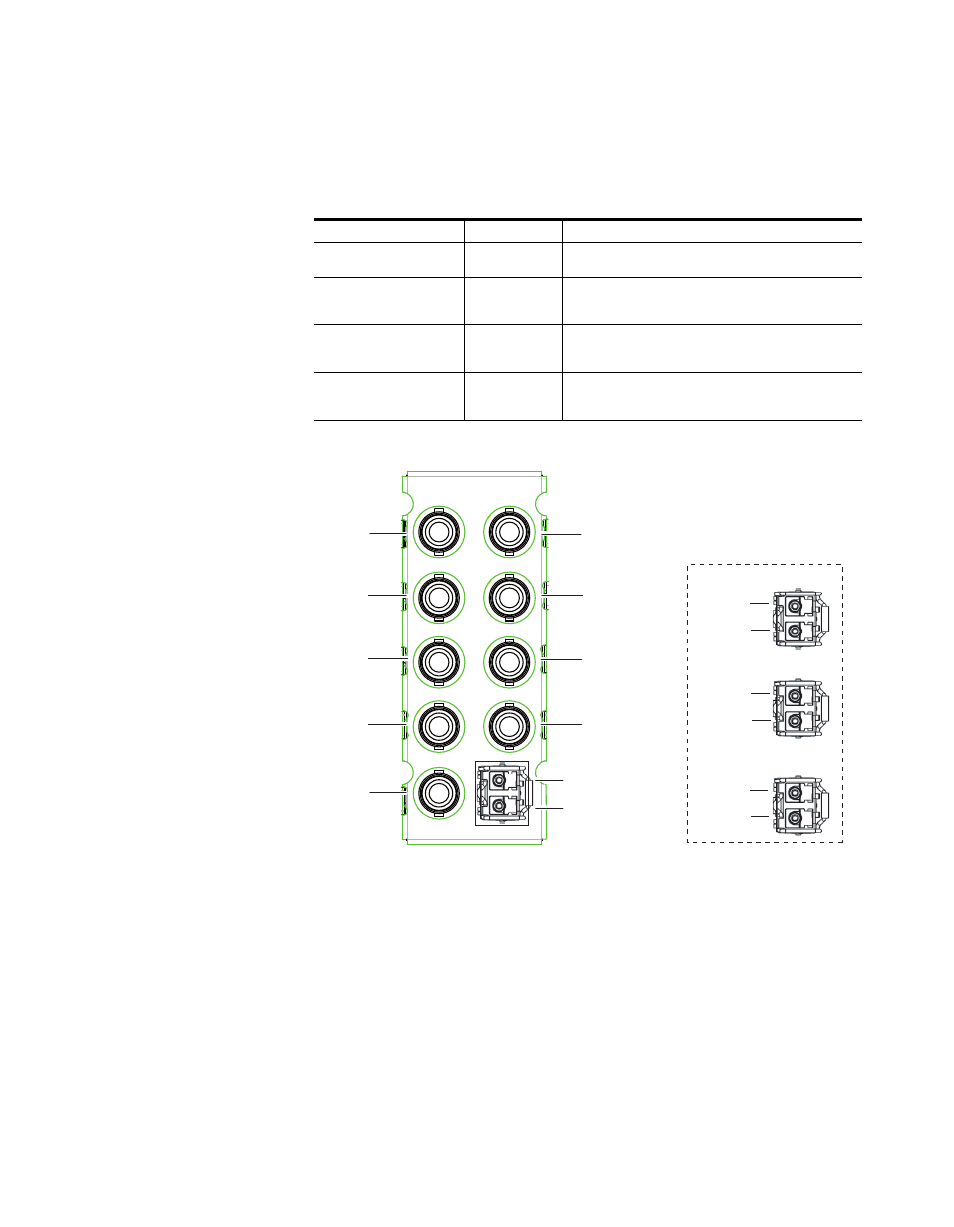

Figure 7. 8949MDA-SFR Cabling
Table 4. Cabling Inputs and Outputs for 8949MDA-SFR Module
Fiber Optic Submodule SDI Inputs Outputs
No Fiber optic submodule J9 BNC J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled SD SDI electrical outputs
1310NM-DRL Dual Receiver J9 BNC,
Fiber 1,
or Fiber 2 J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled SD SDI electrical outputs
1310NM-DTL Dual Transmitter J9 BNC J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled SD SDI electrical outputs
Fiber 1 and Fiber 2: 2 optical HD outputs
1310NM-TRL Transceiver J9 BNC
or Fiber 1 J1, J3, J5, J7: 4 HD-SDI electrical outputs
J2, J4, J6, J8: 4 downscaled SD SDI electrical outputs
Fiber 2: 1 optical HD output
8900WFR-R
HD/SD
SDI In
HD/SD
SDI Out
HD/SD
SDI Out
HD/SD
SDI Out
HD/SD
SDI Out
SD SDI
Monitoring Out
SD SDI
Monitoring Out
SD SDI
Monitoring Out
SD SDI
Monitoring Out
Fiber 2 In/Out
Fiber 1 In/Out
8434_01
Fiber Optic Cabling
Fiber Rx 1
Fiber Tx 2
Fiber Rx 2
1310NM-DRL
Fiber Tx 1
Fiber Rx 1
Fiber Tx 2
1310NM-DTL
1310NM-TRL
J1
J3
J5
J7
J9
Fiber
J8
J6
J4
J2
