16 8949MDA-CFR/-SFR—Instruction Manual
Installation
Front Module Installation
After installing the rear module, install the front module as follows:
Note If using a fiber optic submodule, install it through the rear module according
to
Fiber Optics Submodule Installation on page 17 .
1. Remove the front cover of the frame.
2. Locate the front slot corresponding to the rear module you have already
installed.
3. Insert the front module so that the plastic card guides on the module
top and bottom edges go over the upper and lower raised rail guides on
the right of the top and bottom of the slot (
Figure 4 ).
4. Carefully slide the module into the rear connector.
5. Lock the front module ejector tab into the locking pin.
Note Before removing the front module, first remove the Fiber Optic submodule if
present, from the rear module.

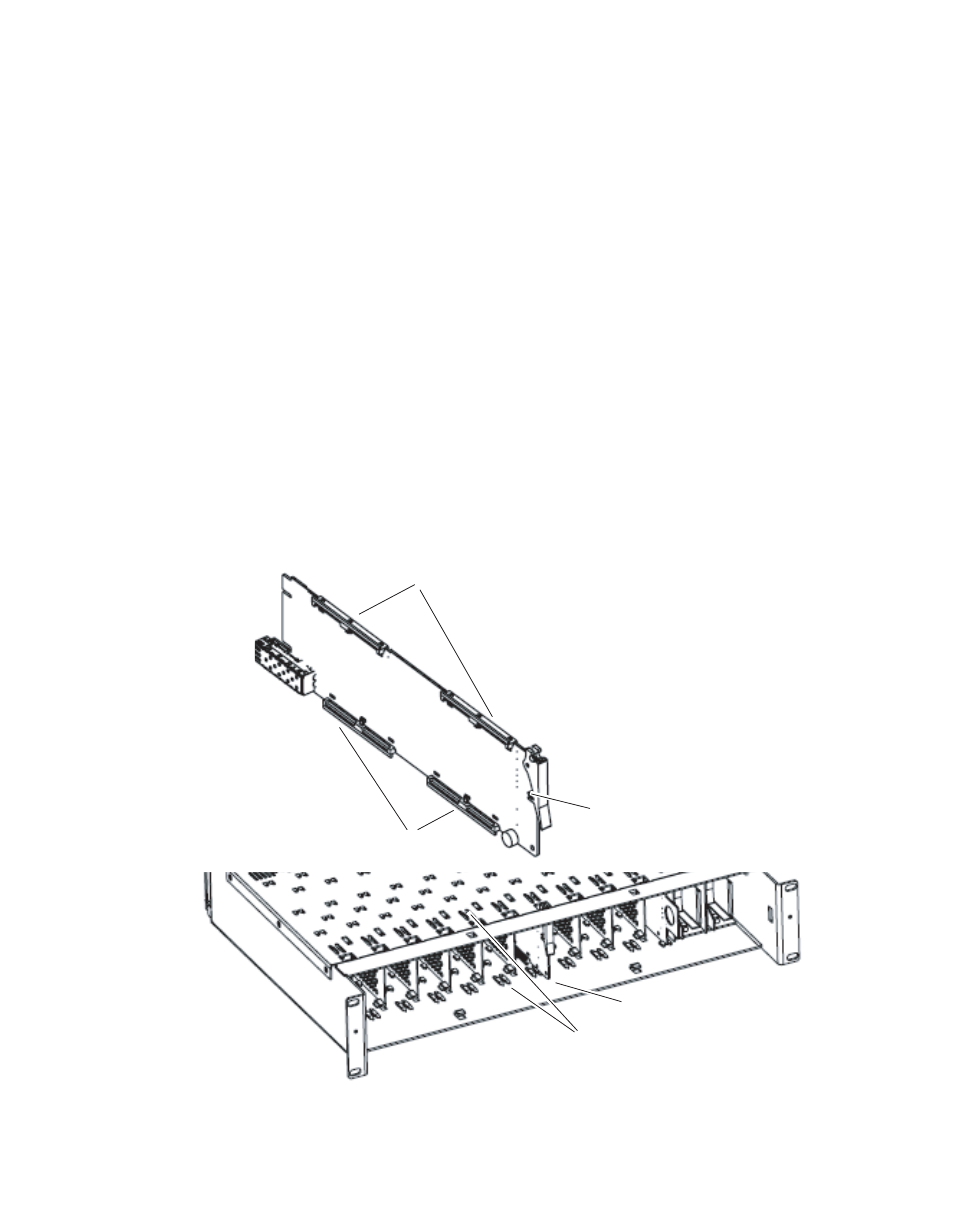

Figure 4. Front Module Installation
8431_07
Slide top and bottom card carriers on module
over top and bottom guides on right of slot.
Module installed
Locking Pin
Card Carriers
Card Carriers
Front Module Side View
