8900NET Instruction Manual

37

Using the 8900NET GUI

Frame Alarm Reporting Web Page

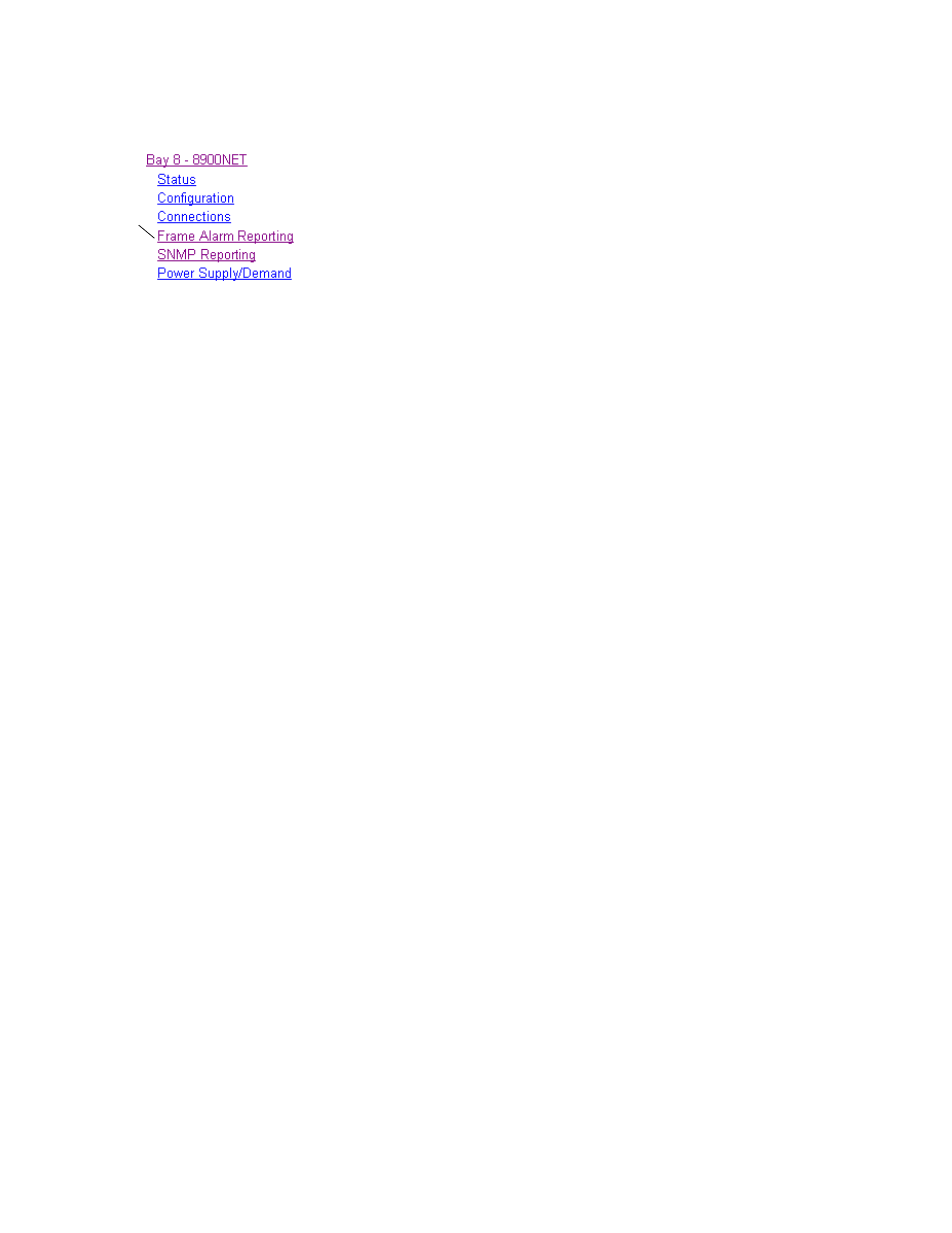

Selecting the Frame Alarm Reporting link from the Frame link list or the
Frame Health Reports link from the Configuration web page will bring up
the web page shown in

Figure 18 on page 38

. This page provides a

summary of the various alarms and warning reports that can be enabled
and sent to the external RS-232 Frame Alarm connector on the rear of the
frame (see

Frame Alarm on page 12

).

Hardware Switch Status

– the Hardware Switch Status section of this web

page displays the current settings of the DIP switches, S1 and S2, on the
8900NET circuit board as described in

8900NET Module Alarm DIP

Switches on page 20

. These switches allow enabling and disabling of

what status reporting information is provided to the Frame Alarm and
SNMP traps.

Output Format for Warnings

– set the Frame Alarm output on the RS-232

connector to output a pulse or a continuous voltage level when a
warning condition is detected from the Frame Health Reporting bus.

The status of Frame Health reporting is given above the Output Format
for Warnings section. Reporting from the Frame Health bus can be
enabled or disabled by selecting the Module Health

Report

checkbox at

the bottom of the Frame Health Reporting list.

Frame Health Reporting

– enable or disable Alarm and Warning reporting

for the following functions or devices in the frame:

Media module (Slots 1-10) fault alarms, and loss of signal, loss of
reference, and configuration error warnings (as specified for each
specific module),

8900NET module fault reporting,

Power supply 1 and 2 fault reporting,

Frame Bus status fault reporting,

Fan (in front cover) Status fault reporting,

Module health fault reporting
