Establishing Frame Network Identity

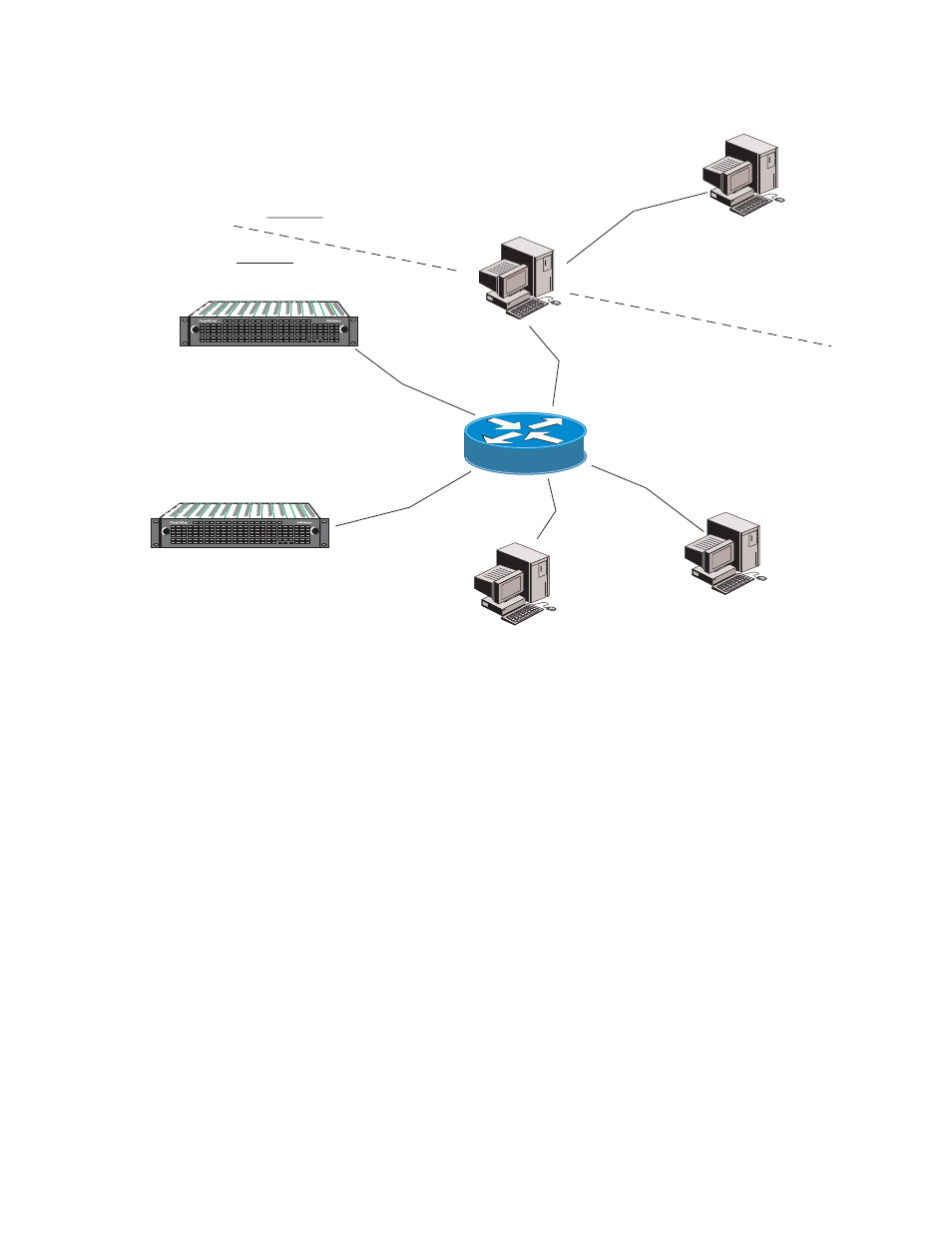

Figure 13. Local IP and Subnet Addressing
Setting Frame Network Identity
After you have connected the PC to the RS-232 port (refer to RS-232 Com-
munication Port Cable on page 12 ) and established communication using the
terminal emulation application, press the enter/return key several times to
see the active prompt.
At the prompt enter:
setup
You will see:
-> setup
Here are the current parameters and their values:
Local IP Address: 192.158.211.83
Gateway IP Address: 192.158.211.1
Subnet Mask: 255.255.255.0
If a change is made, it is necessary to reboot
0612-17
Remote PC
182.1.2.2
IP Gateway
Subnet 2
182.1.2.1
127.1.2.1
Local PC
127.1.2.5
Router
8900TFN frame 127.1.2.3
8900TFN frame 127.1.2.4
FTP Server
127.1.2.6
PS 1 PS 2
LOCK LOCK
FAULT
PS 1 PS 2
LOCK LOCK
FAULT
Subnet 1
