Power Up
Power Up
The various front LED indicators and configuration switches on the
8900NET module are illustrated in
Figure 11 . Upon power-up, all LEDs
should light for the duration of the initialization process.
After initialization the Power LED will be on and the red Network Module
LED (labeled NM) should go off. All other LEDs report detected conditions
within the frame and the installed modules. If the NM LED does not go off,
the board needs servicing.
Note When a media module is first plugged into the 8900 frame, the 8900NET
module may report a momentary fault. This will clear once the media module
has booted up.

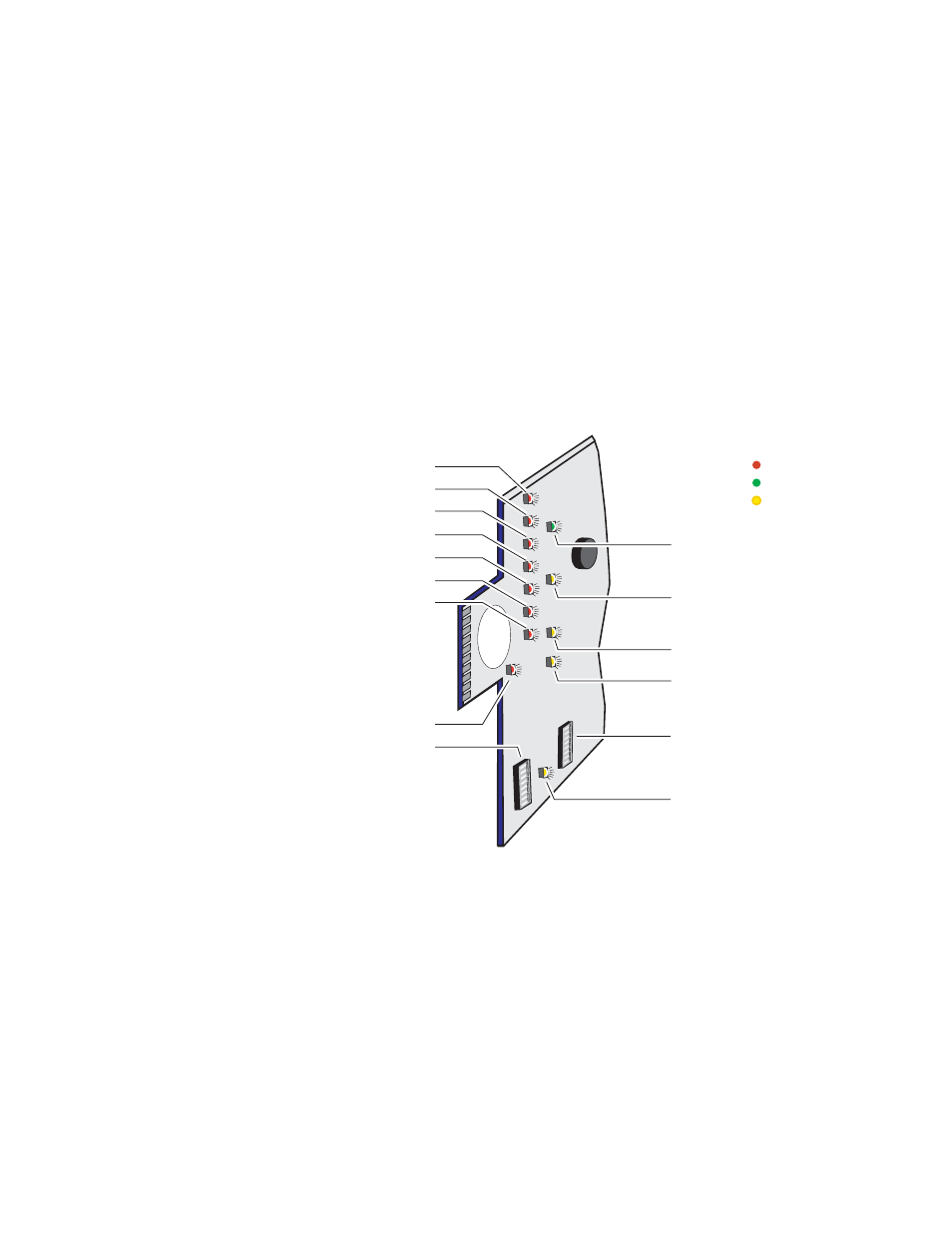

Figure 11. LEDs and Configuration Switches on the 8900NET Module
Table 1 on page 18 describes all the module’s LEDs and the conditions indi-
cated.
FAN (red)
MOD - Module Health Bus (red)
PS1 - Power Supply 1 (red)
PS2- Power Supply 2 (red)
TEMP - Temperature (red)
S1
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
PWR - Power (green)
Red = Fault
Green = OK
Yellow = Active
LED Color Key
NM - Network Interface Module (red)
FB - Frame Bus (red)
COMM - Communication (yellow)
ETHER - Ethernet communiction
(yellow)
REM OVR - Remote Override
(yellow)
FAULT - Frame Fault (red)
INHIB - Module Health Inhibited
(yellow)
Configuration DIP switch S1
0612 -06r1
Configuration DIP switch S2
