8900NET Instruction Manual 13
Installation
The male end connects to the RS-232 connector on the 8900 frame (see
Figure 7 ) and the female end connects to either Com1 or Com2 on the PC,
depending upon the configuration of the computer’s I/O ports.

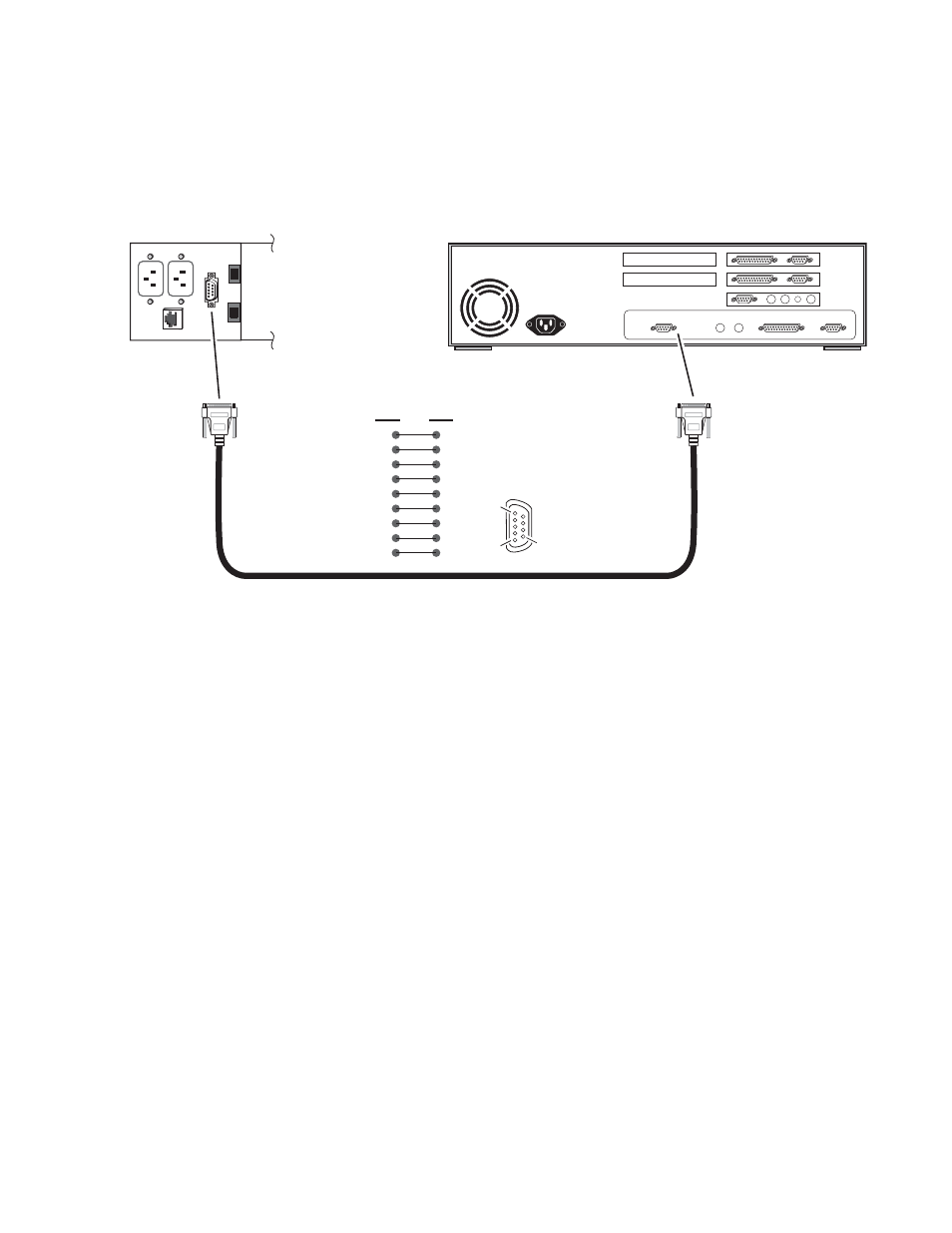

Figure 7. RS-232 to Initialization PC Cable and Pinout
DB-9
Female
DB-9
Male
Pin Pin
1
2
3
4
5
6
7
8
9 1
2
3
4
5
6
7
8
9
Com1 or
Com2 port
RS-232
Pin 1
Pin 5 Pin 9
PC running Hyperterm Terminal Emulation 8900TFN Frame
0612 -09r1
Comm. Parameters: 9600 baud, 8 bits, parity-none, 1 stop, flow-none
