2000NET Instruction Manual

Alarms and SNMP Monitoring

Alarms and SNMP Monitoring

Faults and alarms from the 2000NET module can be reported to a Frame
Health Alarm connector on the rear of the frame (see

Frame Health Alarm

Connection

on page 11

) and/or to a networked SNMP monitoring system

(see

SNMP Monitoring

on page 20

2000NET Module Alarm DIP Switches

Two eight-position DIP switches (S1 and S2) enable or disable the overall
fault and alarm reporting functions of the module. The current status of
these settings are reported on the Status web page of the 2000NET GUI
(

2000NET Status Web Page

on page 33

). Disabling (or filtering) of fault

reports can also be useful in isolating problems in the frame.

The Frame Health Alarm on the rear of the Kameleon 2000 Series frame
responds directly to the settings of the DIP switches. Some media modules
provide enabling/disabling of Frame Health reporting for Slot Status,
Signal Loss and Reference Loss on the Slot Config web page for the media
module. Refer to

Media Module Slot Configuration

on page 38

for details.

Refer to

Figure 13

for the location of S1 and S2 and

Table 3 on page 20

for

the possible settings. A settings table is also silk-screened on the bottom of
the module.

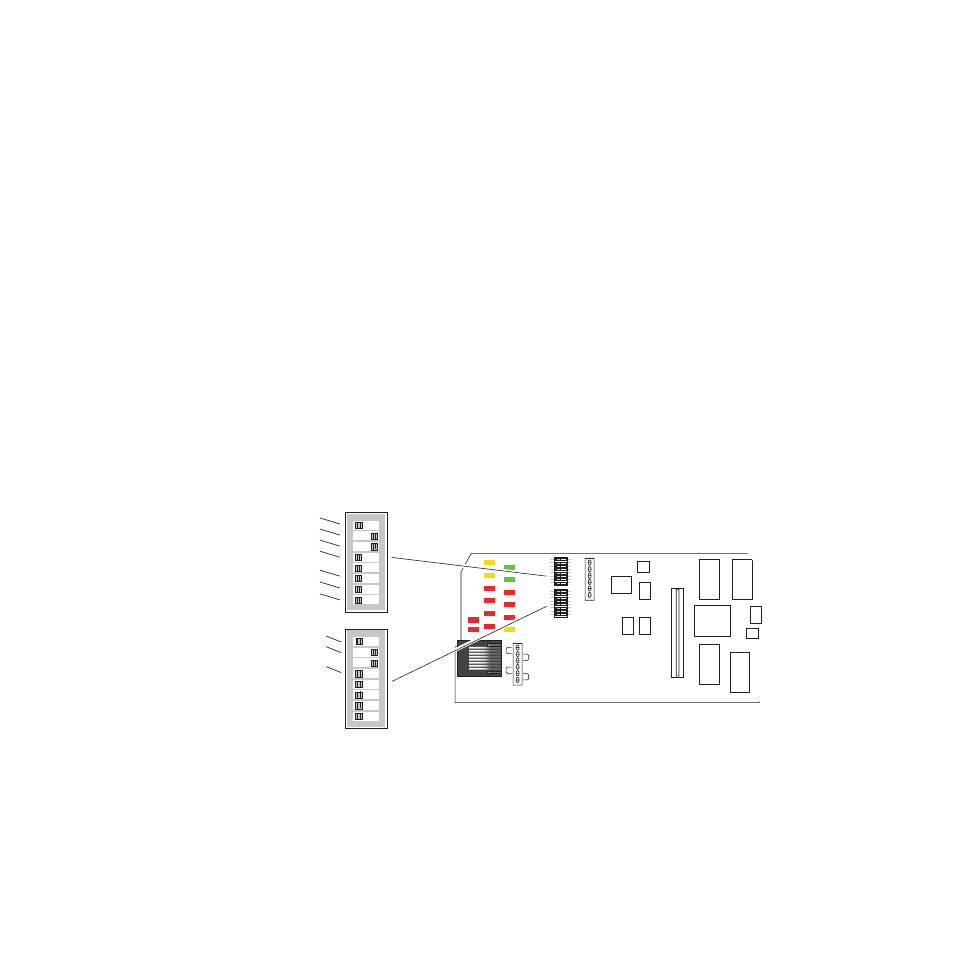

Figure 13. DIP Switches S1 and S2

12345678

Power Supply #3
Power Supply #4
