ASSEMBLING YOUR WTX SYSTEM

A single cylinder buoyancy cell may be attached directly to an Apeks back plate or the WTX harness

using dual standard cylinder bands.

NOTE:

The terms “hook,” “loop,” and “hook & loop” are used throughout this manual. Hook &

Loop is commonly known as Velcro®, which is a trademarked brand of hook & loop. Many of the

BC’s components have hook & loop attachments, including the waistband, cylinder bands, and

weight pouch flaps.

Mounting a Single Cylinder Buoyancy Cell Using Standard Cylinder Bands

Mounting Directly to the Back Plate

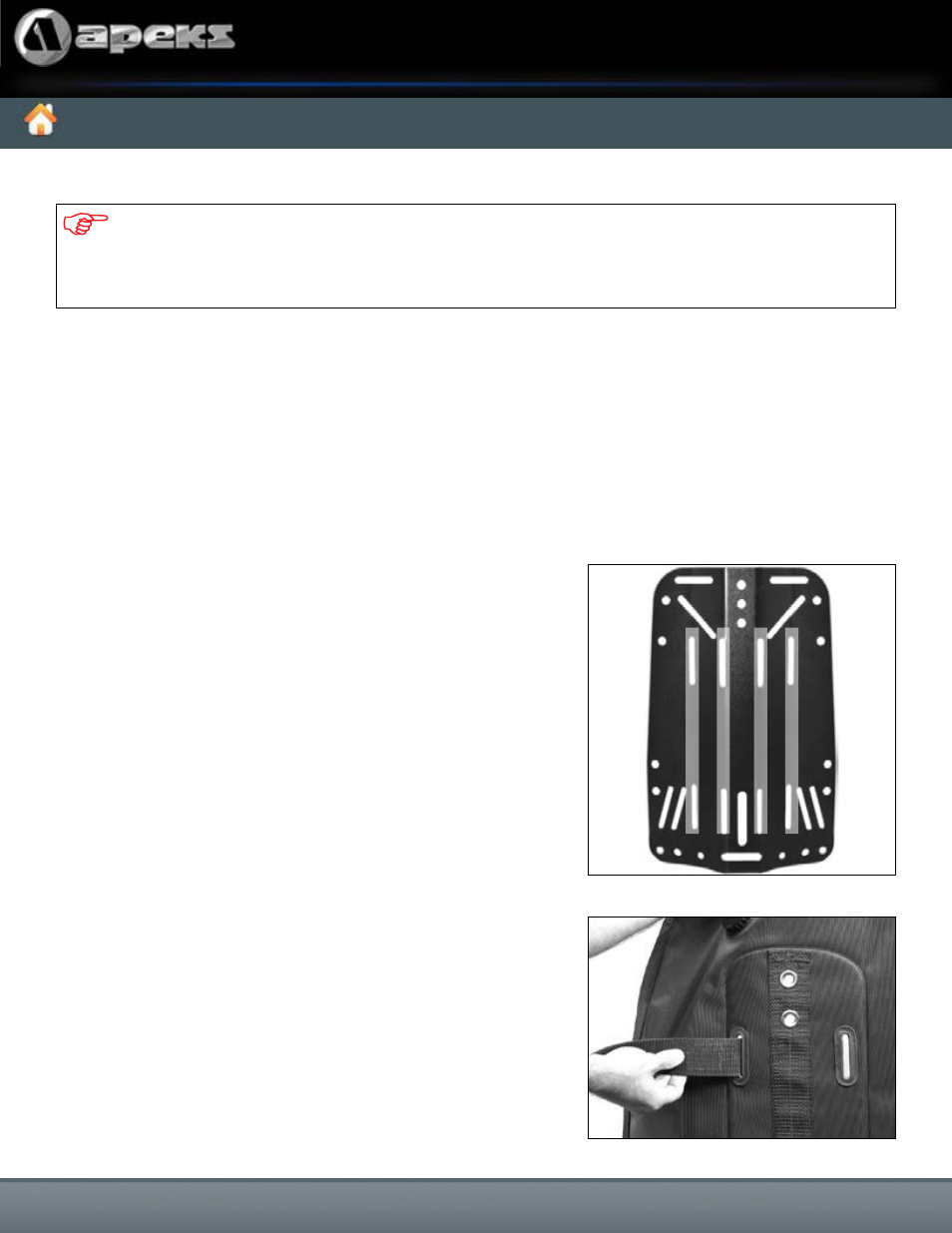

1. Set the back plate on a table with the Apeks logo side

down. Identify the series of four slots at the top and

bottom of the Apeks back plate that accommodates the

cylinder bands.

1 2

3 4

1 2

3 4

2. While viewing from the back, insert the upper cylinder

band through the upper left slot in the buoyancy cell

and on through slot 1 in the back plate. Make sure

that the hook and loop of the cylinder band is facing

outward.
