Hardware Description
In this paragraph, the hardware spec, port, cabling information, and wiring installation will be described.
Physical Dimension
Dimension (W x D x H):
17.3 inch x 11 inch x 1.7 inch
440mm
x
280mm
x
44mm
Front Panel

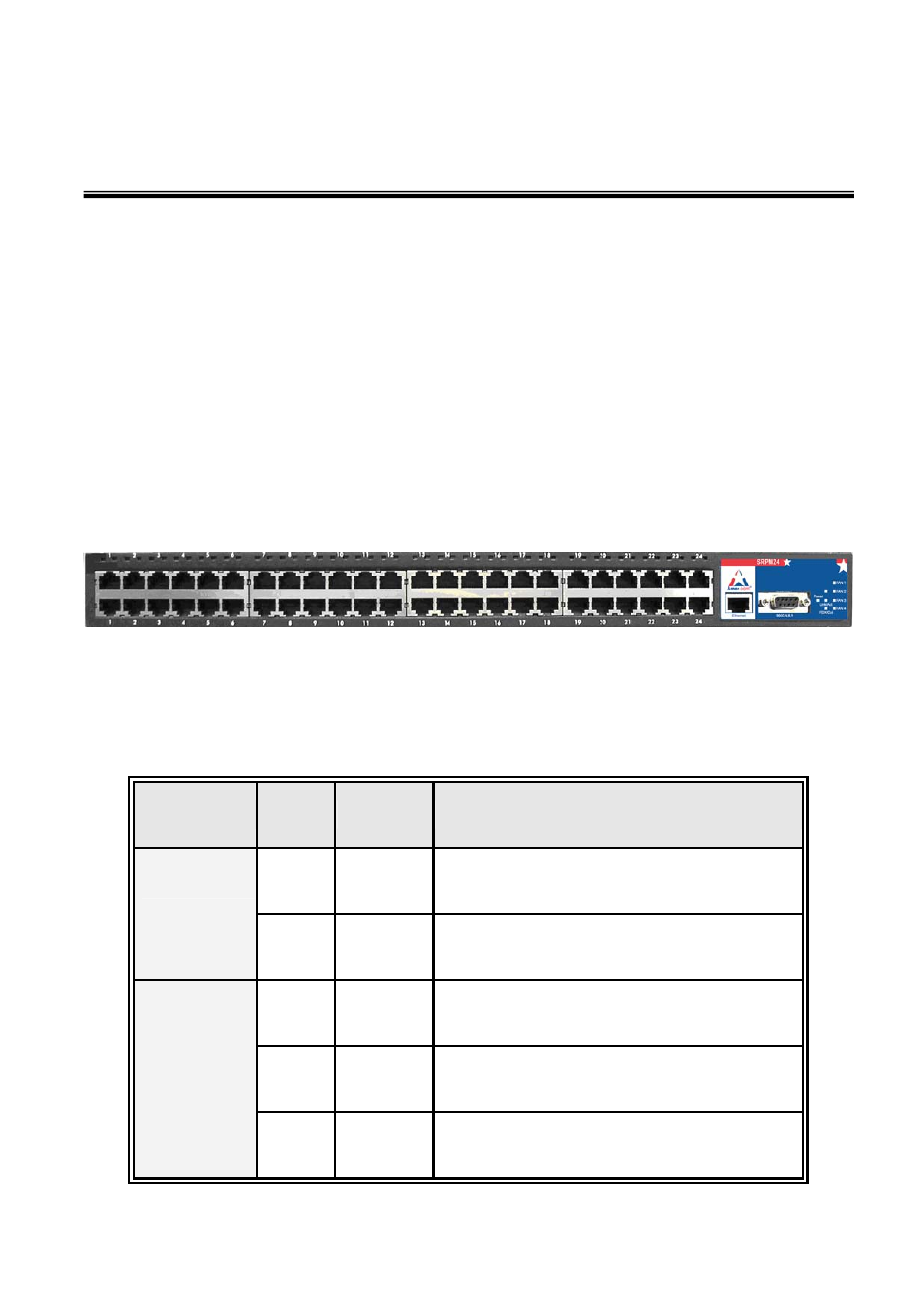

The Front Panel of SRPM24, the 24-port Managed PoE Midspan switch is shown as below,
LED Indicators
LED
Status
Color
Description
On
Green
System power is active
PWR
Off
--
System power is not active
On
Orange
The connection is operating in full-duplex mode.
Blink
Green
Collision of packets occurs.
FDX/COL
Off
--
The connection is operating in half-duplex mode.
