Instruction Manual
IB-106-340C Rev. 4.1
July 2004
11-2 Replacement Parts Rosemount Analytical Inc. A Division of Emerson Process Management
Hazardous Area Oxymitter 4000
Table 11-1. Replacement Parts for Probe (Continued)
Figure and
Index No.
Part Number Description
4849B94G07 JIS High Sulfur/HCl Resistant Cell Only
11-1 4849B94G08 JIS 18" Cell Replacement Kit, High Sulfur/HCl Resistant*
11-1 4849B94G09 JIS 3' Cell Replacement Kit, High Sulfur/HCl Resistant*
11-1 4849B94G10 JIS 6' Cell Replacement Kit, High Sulfur/HCl Resistant*
4849B94G13 DIN High Sulfur/HCl Resistant Cell Only
11-1 4849B94G15 DIN 3' Cell Replacement Kit, High Sulfur/HCl Resistant*
11-1 4849B94G16 DIN 6' Cell Replacement Kit, High Sulfur/HCl Resistant*
1-11 3D39003G16 ANSI 18" Abrasive Shield Assy.
1-11 3D39003G17 ANSI 3' Abrasive Shield Assy.
1-11 3D39003G18 ANSI 6' Abrasive Shield Assy.
1-11 3D39003G19 DIN 18" Abrasive Shield Assy.
1-11 3D39003G20 DIN 3' Abrasive Shield Assy.
1-11 3D39003G21 DIN 6' Abrasive Shield Assy.
1-11 3D39003G22 JIS 18" Abrasive Shield Assy.
1-11 3D39003G23 JIS 3' Abrasive Shield Assy.
1-11 3D39003G24 JIS 6' Abrasive Shield Assy.
4513C61G03 18" Contact and Thermocouple Replacement Assy.
4513C61G04 3' Contact and Thermocouple Replacement Assy.
4513C61G05 6' Contact and Thermocouple Replacement Assy.
*Includes pad and wire.
PROBE TUBE
(NOT INCLUDED
IN KIT)
M6-1 x 6 mm
SOCKET HEAD
CAP SCREWS CORRUGATED
SEAL
ANSI
GASKET
WIRE AND
PAD ASSEMBLY
ANTI-SEIZE
COMPOUND
22 GA.
WIRE
SET SCREWS
TEFLON
TUBING
CLOSED END
CONNECTOR
CELL AND
FLANGE
ASSEMBLY
CALIBRATION GAS
PASSAGE
27540010

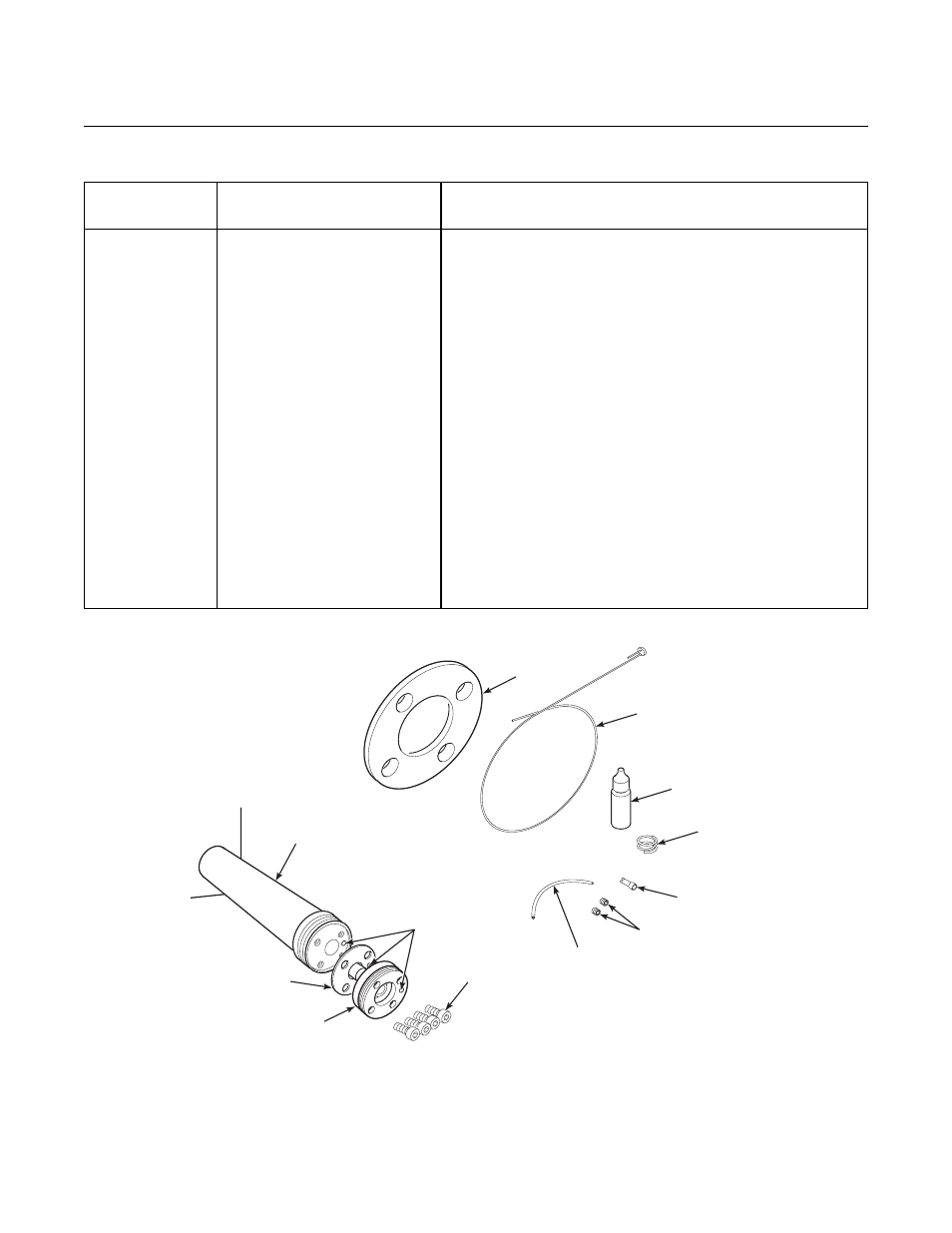

Figure 11-1. Cell Replacement Kit
