Airaid 1001 User Manual
Part number 1001
Parts List
#1 ECONOAID
x1
#2 Gasket
x1

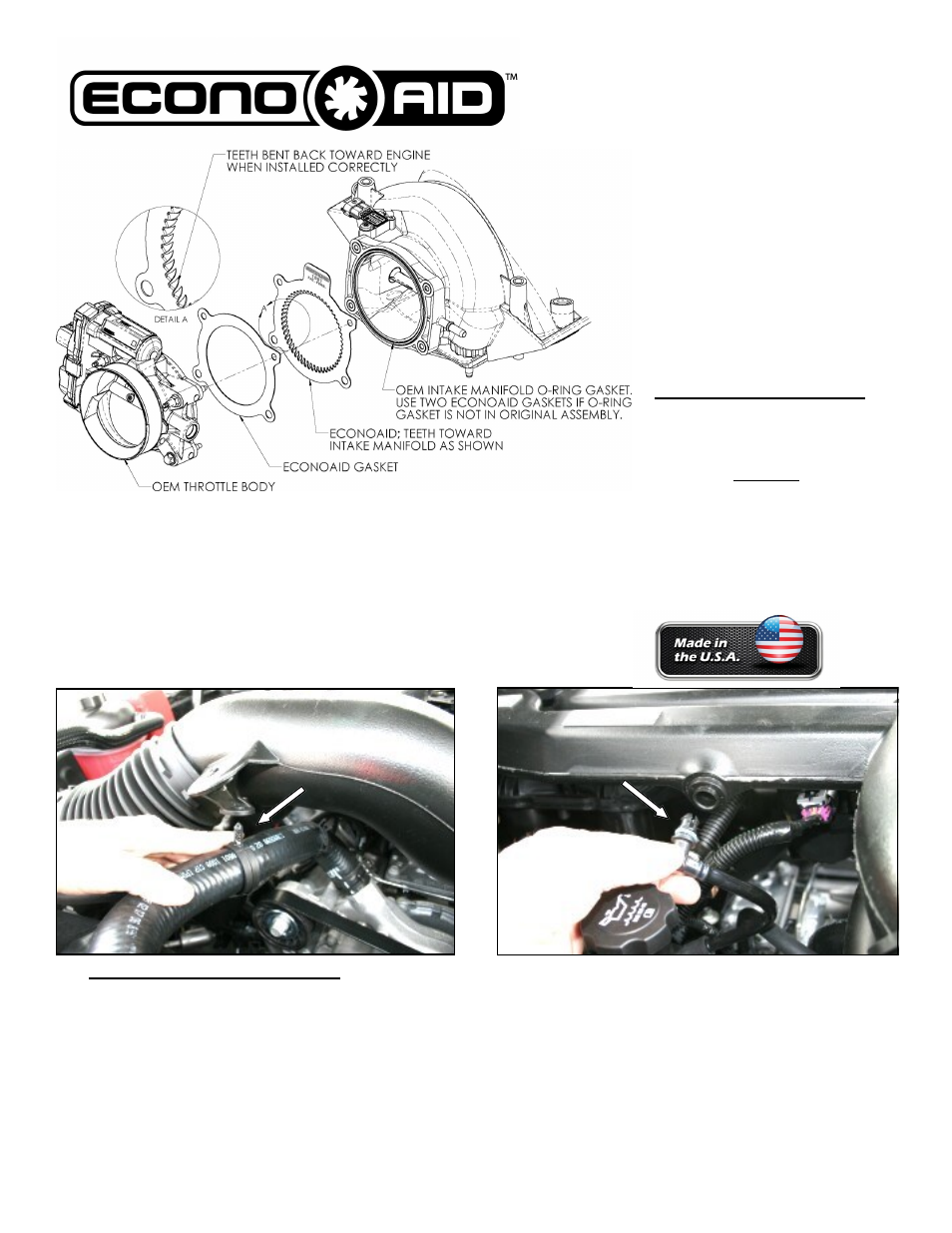

1. Disconnect the negative battery cable!
Lift up on the front of the and beauty cover and remove it
from the vehicle. Push down on the radiator hose, and sepa-
rate the intake tube from the plastic clamp.
2. Disconnect the breather tube from the intake tube, by gently
pulling towards you. An O-ring is all that holds it in place.
Thank you for purchasing the ECONOAID Throttlebody Booster. Please read the instruction manual carefully before pro-
ceeding with the installation. Contact ECONOAID @ (888) 876-4676 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit
or instructions that are not clear to you. Your ECONOAID Throttlebody Booster was carefully inspected and packaged. Check that
no parts are missing, or were damaged during shipping. If any parts are missing, please contact ECONOAID.
Tools Required For Installation
5/16”, 10mm Sockets
Ratchet and Extension
Part Number 1001
2007-13 * Chevrolet Silverado
GMC Sierra
2009-14 Cadillac SUV & SUT
GMT-900 Trucks & SUVs
2005-13* Corvette
2009-12* Chevrolet Colorado
2005-06 Chevrolet SSR 6.0L
2005-09 Chevrolet Trailblazer
2005-09 GMC Envoy
2009-12 GMC Canyon
2008-09 Hummer H-2
2008-09 Hummer H-3 Alpha
2005-06 Pontiac GTO
2010–1
5* Chevrolet Camaro
4.8L, 5.3L, 6.0L, 6.2L Engines
U.S. Pat. #7,665,442
