2. Install the Fender Bracket (#6) as shown using one
1/4-20 Button Head Bolt (#10), and one 1/4” Flat
Washer (#9).

3. Install the Core support Bracket (#5) as shown using
one 1/4-20 Button Head Bolt (#10), and one 1/4” Flat
Washer (#9).

4. Install the Air Dam (#3) onto the Top Panel assembly
three 1/4-20 Button Head Bolts and 1/4” washers. Install
the hardware finger tight to allow for final adjustment.

5. Install the Filter Adapter (#2) onto the Air Dam us-
ing three remaining sets of 1/4-20 hardware.

6. Install the Airaid Premium Filter onto the Adapter as
shown.

#5

#6

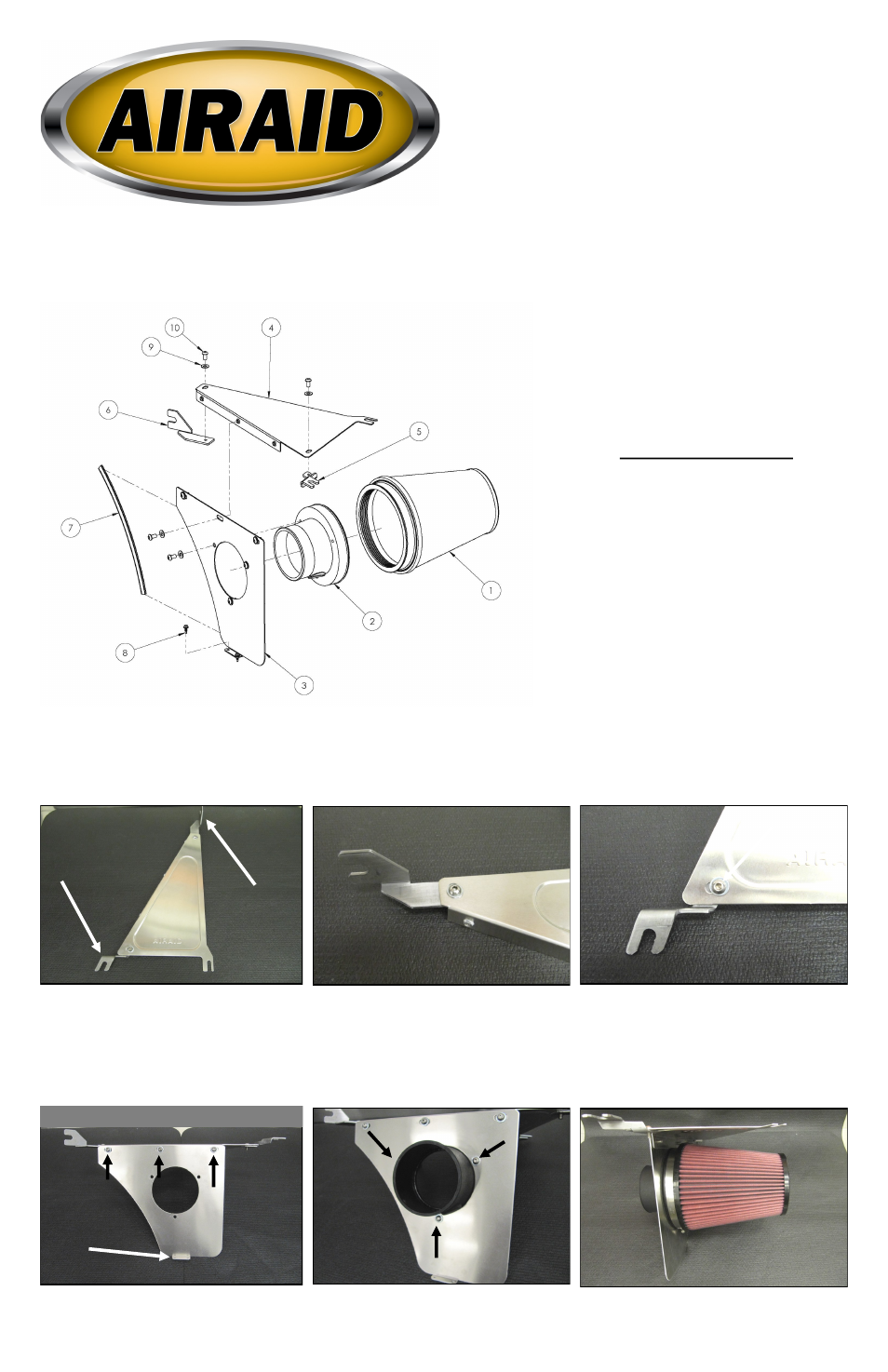

Component Identification

1.

Airaid Premium Filter

1

2.

Filter Adapter

1

3.

Air Dam

1

4.

Top Panel

1

5.

Core Support Bracket

1

6.

Fender Bracket

1

7.

Weatherstrip 12”

1

8.

Self Drilling Screw

2

9.

1/4” Flat Washer

8

10.

1/4-20 Button Head Bolt

8

NOTE This is not a complete kit. It is a com-

ponent intended to be used in conjunction

with Additional Airaid UBI components.

1. Remove the protective film from the sheet metal.
Create the Top Panel assembly by installing the two
Brackets on to the Top Panel (#4). Install the hardware
finger tight to allow for final adjustment.

Tab Out

Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.

Installation Instructions

For Part Numbers:

100-250 3in. Drv. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-250 3in. Drv. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-250 3in. Drv. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-250 3in. Drv. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue
100-251 3.5in. Drv. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-251 3.5in. Drv. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-251 3.5in. Drv. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-251 3.5in. Drv. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue
100-252 4in. Drv. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-252 4in. Drv. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-252 4in. Drv. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-252 4in. Drv. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue
100-253 3in. Psgr. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-253 3in. Psgr. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-253 3in. Psgr. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-253 3in. Psgr. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue
100-254 3.5in. Psgr. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-254 3.5in. Psgr. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-254 3.5in. Psgr. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-254 3.5in. Psgr. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue
100-255 4in. Psgr. Sd. Outlet 700-461 Airaid Oiled Media Filter
101-255 4in. Psgr. Sd. Outlet 701-461 SynthaMax Dry Media Filter - Red
102-255 4in. Psgr. Sd. Outlet 702-461 SynthaMax Dry Media Filter - Black
103-255 4in. Psgr. Sd. Outlet 703-461 SynthaMax Dry Media Filter - Blue

Performance Airbox for F Body Camaro and Firebird

(Drivers side installation pictured)

Passenger Side Application:
If your vehicle has it’s battery in the factory location, it along with the battery tray will need to be re located to complete this install
