Airaid 200-785 - Manual

Installation Instructions
For Part Numbers:
200-985 Modular Intake Tube
200-785 Jr. Kit 850-135 Airaid Oiled Media Filter
201-785 Jr. Kit 851-135 SynthaMax Dry Media Filter - Red
202-785 Jr. Kit 852-135 SynthaMax Dry Media Filter - Black
203-785 Jr. Kit 853-135 SynthaMax Dry Media Filter - Blue
2014 Chevrolet Silverado 1500/ GMC Sierra
2015 Chevrolet Tahoe/ GMC Yukon
2015 Chevrolet Suburban 1500
5.3L V8
2. The quick connects for the valve cover breathers are
removed by depressing the grey locking tab in the fit-
ting and sliding them off.
3. Install the Barbed Fitting into the Intake Tube as
shown.
4. Install the 90 deg. Barbed fitting into the Intake Tube
exactly as shown. 5. Slide the Hump Hose and two #64 Clamps onto the
factory air box. If you are installing an Airaid Jr. kit,
install the Airaid Premium Filter at this time. 6. Slide the Reducer and the #56 and 60 clamps onto the
throttle body.
8. Remove the valve cover breathers from both sides of
the motor and set them aside. They will not be reused. 7. Insert the new Quick Connect Fittings into the sup-
plied Breather Hoses. 9. Install the Intake Tube and tighten the Clamps. Con-
nect the new breathers to the Barbed Fittings in the Intake
tube and the Quick Connect Fittings to the Valve covers .

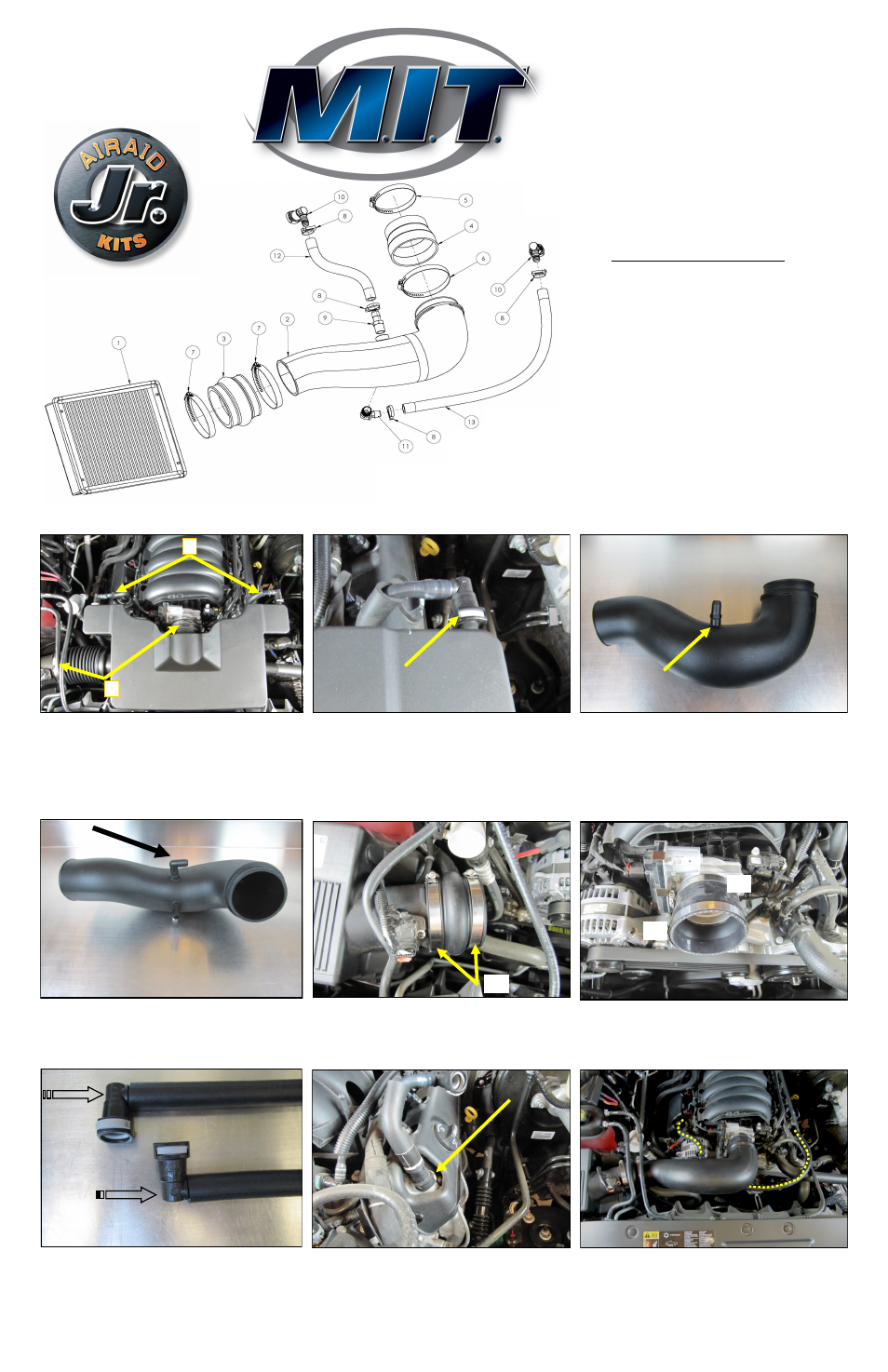

Component Identification
1 Airaid Premium Filter 1
2 Airaid Intake Tube 1
3 Hump Hose 1
4 Reducing Coupler 1
5 #56 Hose Clamp 1
6 #60 Hose Clamp 1
7 #64 Hose Clamp 2
8 Speed Clamp 4
9 Barbed Fitting 1
10 Quick Connector 2
11 Barbed Elbow Fitting 1
12 10 1/2" Breather Hose 1
13 23 1/2” Breather Hose 1
1.Disconnect The Negative Battery Terminal!
A.) loosen the clamps securing the intake system to the
throttle body and the air box.
B.) Disconnect the valve cover breathers from either
side of the factory intake System. Remove the factory
intake system and set it aside.
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
B
A
#56
#60
#64
