CAUTION:
Each revolution of the Feed Sprocket moves the Tool Bit .031” (.8 mm) toward
or from the pipe.
Engage the Feed Pin by pushing the Tripper Shaft to the ‘in’ position.
Rotate the Headstock 360 o while checking the Feed Pin to Sprocket
engagement.
Initiate the pipe cutting operations.
Go back to paragraph 'Engage the feed by pushing the Tripper Shaft in.' and
proceed from there.

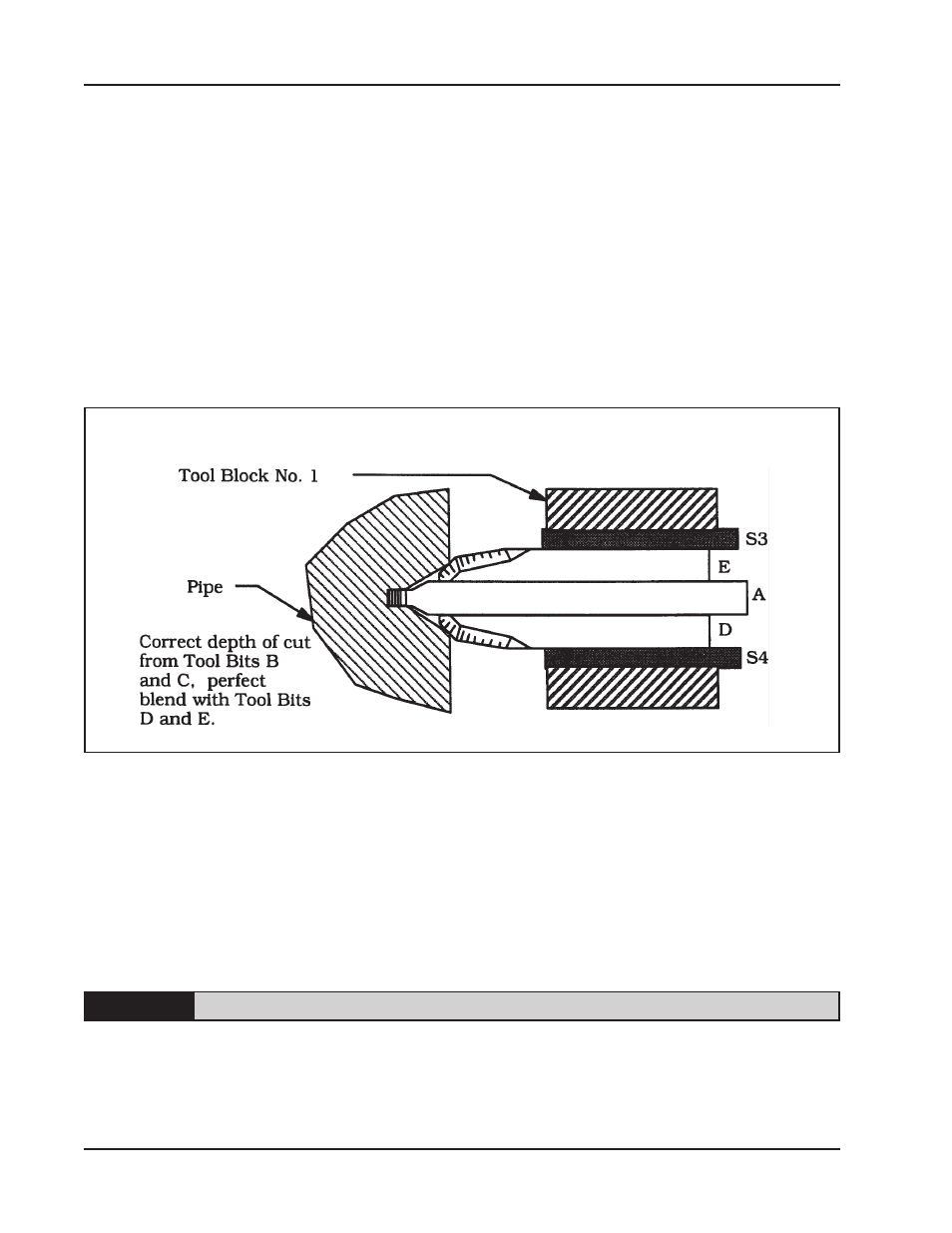

Correct Tool Bit Depth
RESETTING THE TOOL BITS FOR A BLEND
Loosen the Set Screws holding Tool Bits A, D and E.
Slide Tool Bits D and E inward until they make contact with the beveled surface
formed by Tool Bits B and C.
The image above shows incorrect blending of the Tool Bit cut.
DO NOT MOVE TOOL BIT A.
If the cut of Tool Bits B and C is to shallow for a blend with Tool Bits D and E as
shown in the following image, then proceed to paragraph 'Retract Tool Bits D and E
without changing the position of Tool Bit A.' to continue.
