NOTE:
If the Mounting Bracket is overstressed, the Slide Rails may appear to loosen
when mounted if they were adjusted off of the Clamshell.
Adjustment when mounted provides the most satisfactory results.

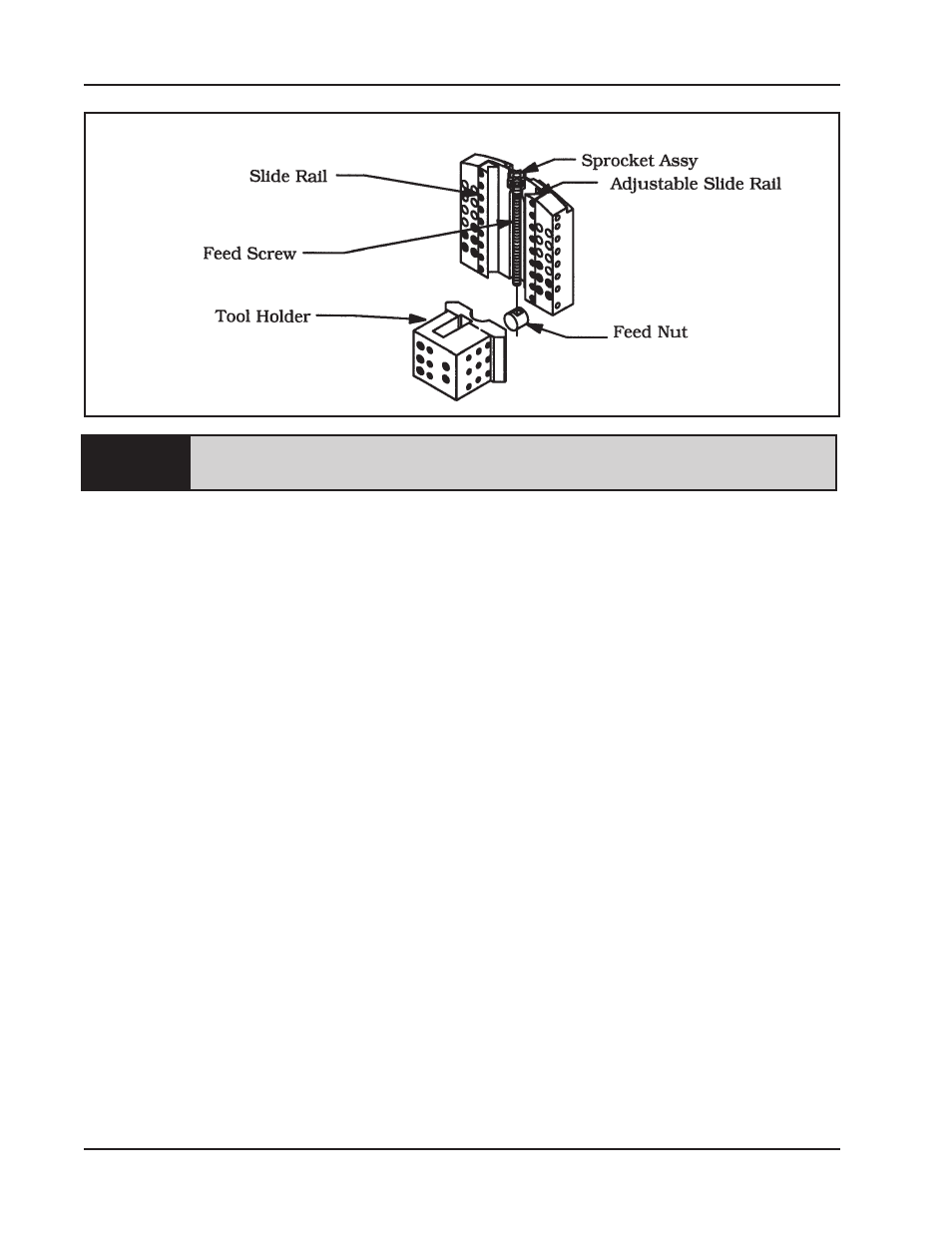

Tool Holder Adjustment
Loosen the Hold-down Screws on the Adjustable Rails.
Run the Tool Holder to the most outward position.
Using the Adjustment Set Screws, apply a light force to the side of the
Adjustable Slide Rail so that it is in positive contact with the Tool Holder.
Adjust only those screws that bear directly in line with the Tool Holder.
Finger-tighten the Hold Down Screws using a hex key to about 12 in-lbs. (1.4
Nm) to 24 in-lbs. (2.7 Nm).
Using the Spanner Wrench, run the Tool Holder to the inward most position.
Note any changes in the feed pressure.
Adjust the remaining Adjustment Set Screws so that the Tool Holder has a
smooth, even feel.
Run the Tool Holder the full length of the Slide Rail.
Tightly lock the Adjustable Slide Rail in place with the Hold Down Screws and
fully snug the Adjustment Set Screws.
Tool Module Assembly
