Chapter 2 – Hardware Installation
2-3

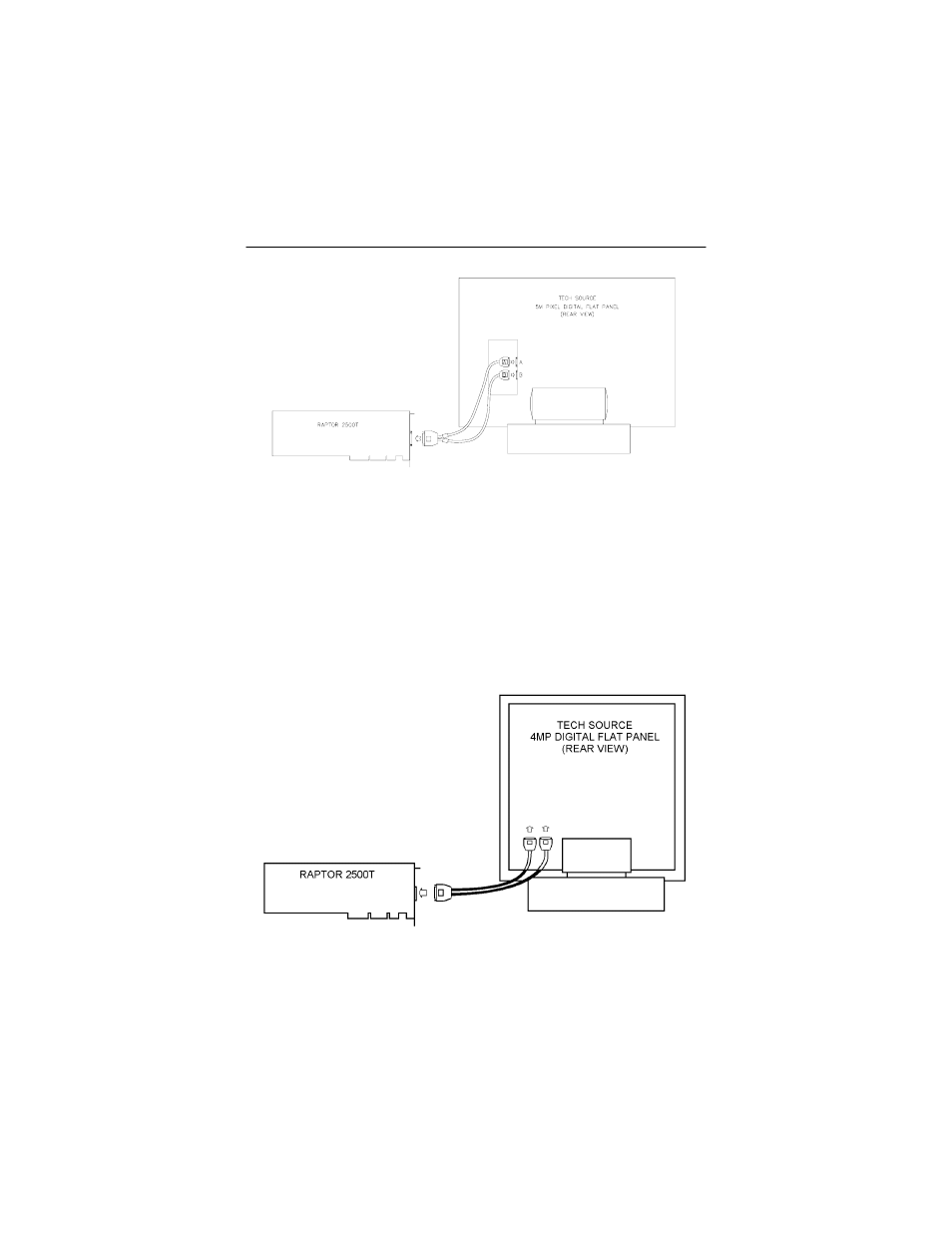

Figure 2-1 – 2500 FPS Digital Flat Panel Subsystem
2.4 Installation of the Raptor 2100 FPS
The Raptor 2100 FPS is comprised of the Raptor 2500T
graphics card (configured for 2048x2048 resolution) and the
Tech Source 2100 FPS digital flat panel, along with associated
cables and software. The subsystem is connected together as
shown in Figure 2-2.
Figure 2-2 – 2100 FPS Digital Flat Panel Subsystem
