TRANSDUCERS INSTALLATION
90º double elbow
in one plane
Valve
Pump
Disturbing
element before
the transducers
90º elbow
in different planes
Tee
Reducer
Diffuser

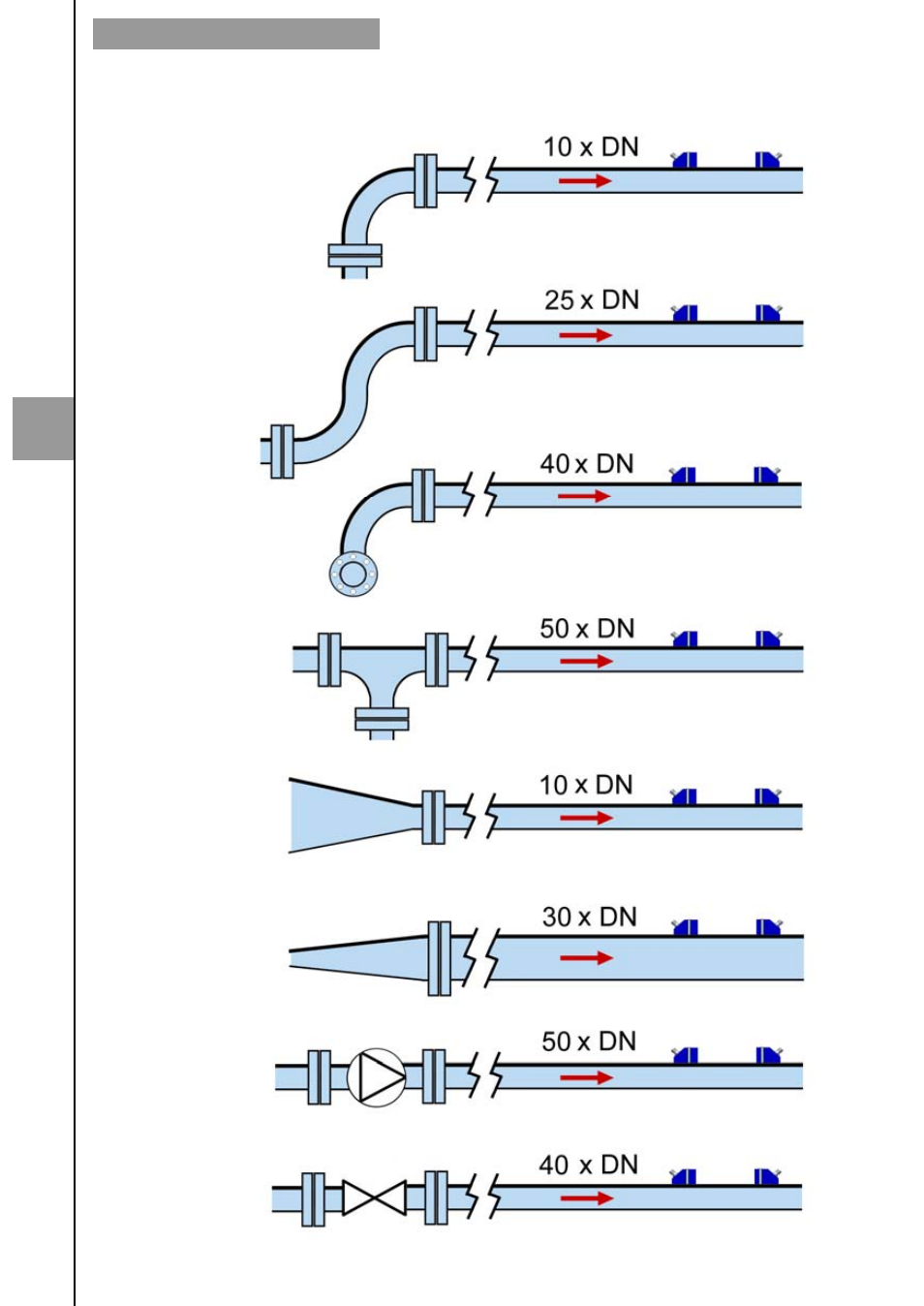

Minimum distance between the
first transducer and the element
