Built-in microphone for
communications functions
(talk to studio, talk to
phones, slate)
Talk to the studio or
headphones; slate; set
communications levels
Model 51 Front Panel
Studio on/off button
and level control
Configure button
switches between
normal operation
and configure mode
Change the control
room level; listen in
mono (L+R); select
output A or B; or reduce
the level by a preset
amount
Source selection
for control room (CR),
studio, headphones, and
dub; three columns of
LEDs show the currently
selected sources

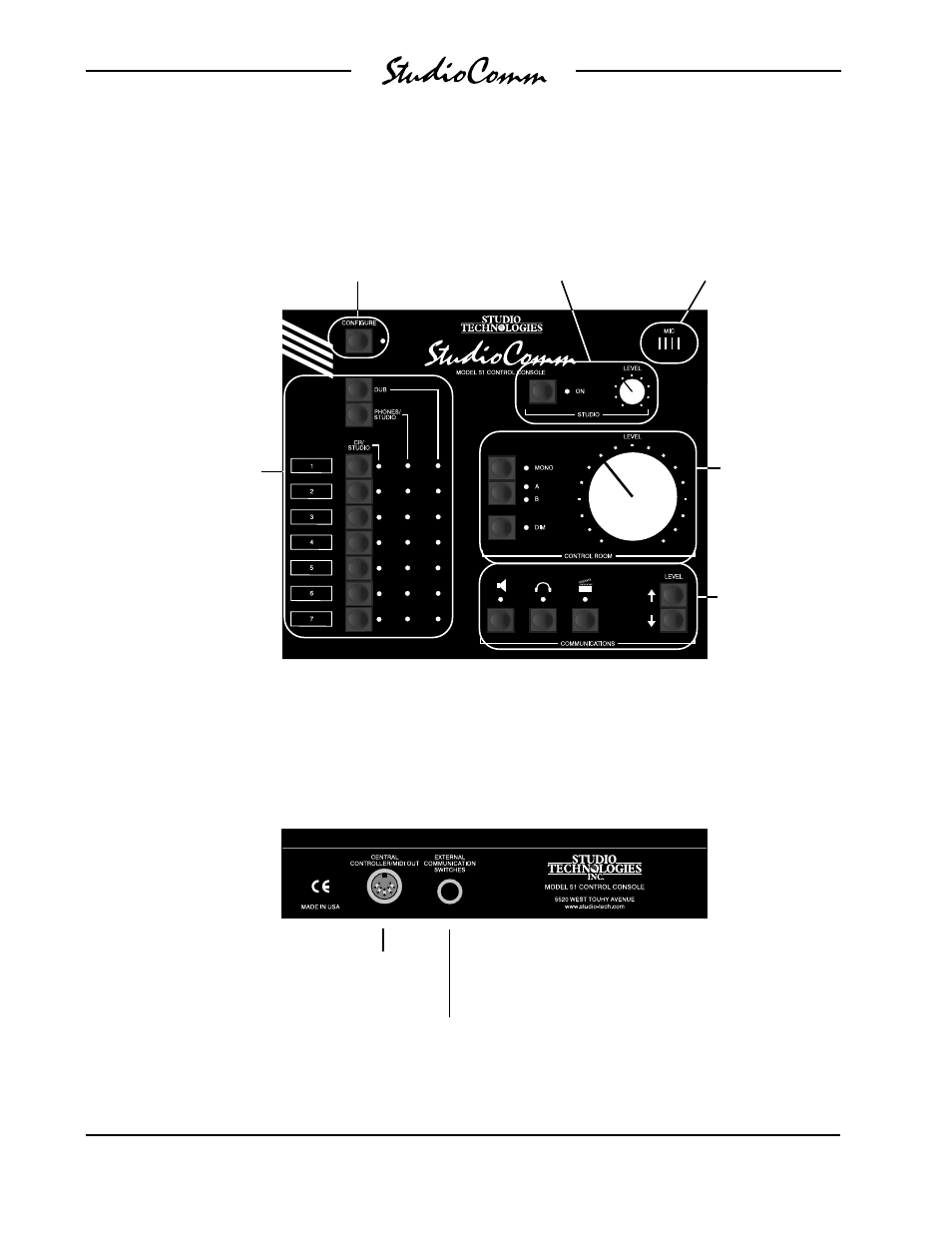

Model 51 Back Panel
Connection for
external talk to studio
and talk to phones
switches
Connection
to the Model 50
Central Controller
