Tsunami Installation Guide Page 21 Tsunami Installation Guide Page 21

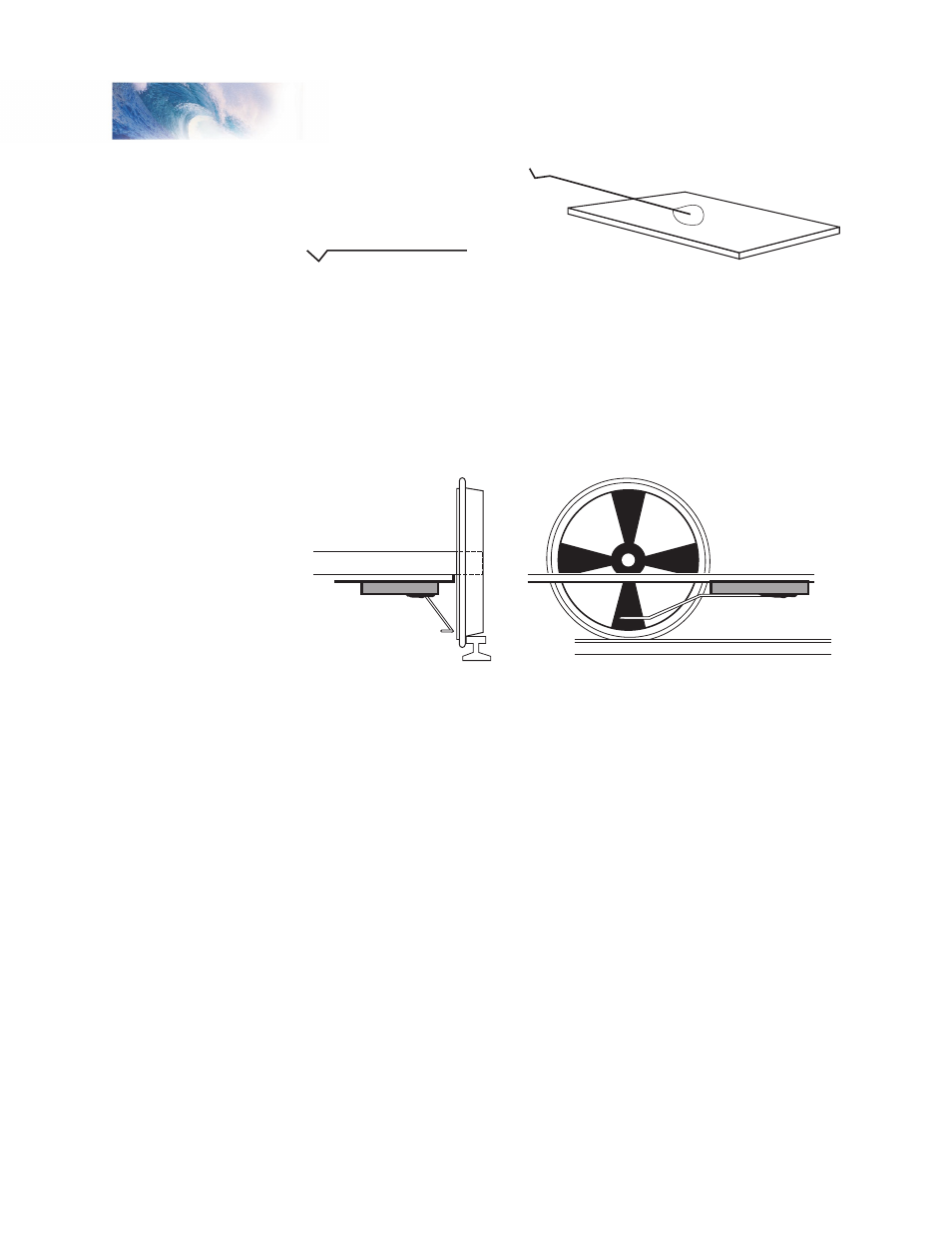

Figure 14 - Cam Wiper Fabrication
Temporarily mount the insulated side of the wiper base to the locomotive
frame such that the wiper end barely rubs against the synchronizer disk
and does not touch any other part of the locomotive. Referring to Figure 15,
adjust the spring wire so that the contact point is centered directly below the
axle and its plane is parallel with the top of the rail. Once the wiper has been
properly adjusted, move the wiper base until the spring wire is deflected by
about 1/32” to 1/16” and secure the base in place with epoxy.
Figure 15 - Contact Wiper Alignment
Installation
1. Bend spring wire
to this shape.
2. Solder to
mounting PCB
